Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 29, 2016, 07:58 AM

  • 15 0257_15 0256_20160429_011832.mp4

Date
04/29/2016
W/O
568734
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00627
PipeID
P12179
Time
12:58 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3334
Sewer Name
15 SAN JOSE CREEK TRUNK
City
LA PUENTE
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
34
Purpose
Routine Assessment
Project
WO_568734_TV15001_MAY2016
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
15 0257
Downstream MH
15 0256
Dir. of Survey
Downstream
Length Surveyed
478.2 ft.
Total Length
478.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2R00
O&M Rating
190
Overall Index
2
Overall Quick
—
Overall Rating
190
Pipe schematic from manhole 15 0257 to 15 0256
MH: 15 0257MH: 15 0256downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 02570 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. MGO - General Observation - MAG COATING 50%2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start73.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"179 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"275.8 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"276.4 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"373.5 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"383.4 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"464.9 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"476.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish476.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE478.2 ft. AMH - Downstream Manhole, Survey Ends - 15 0256

Observation photos (2)

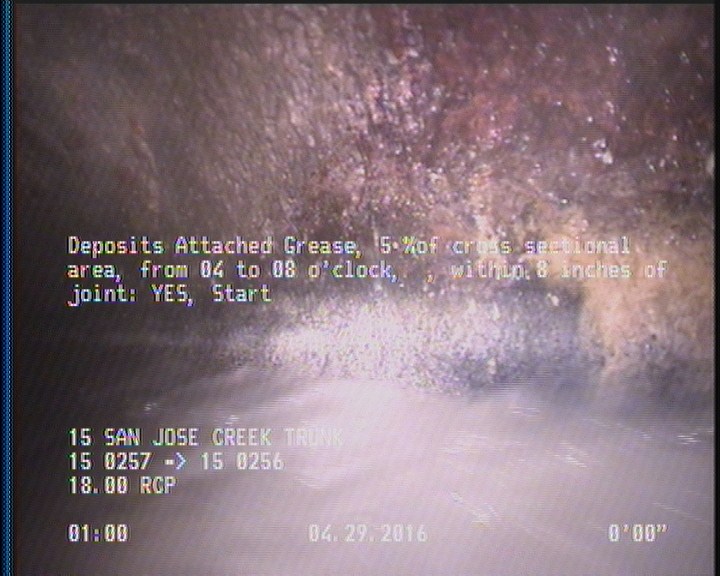

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

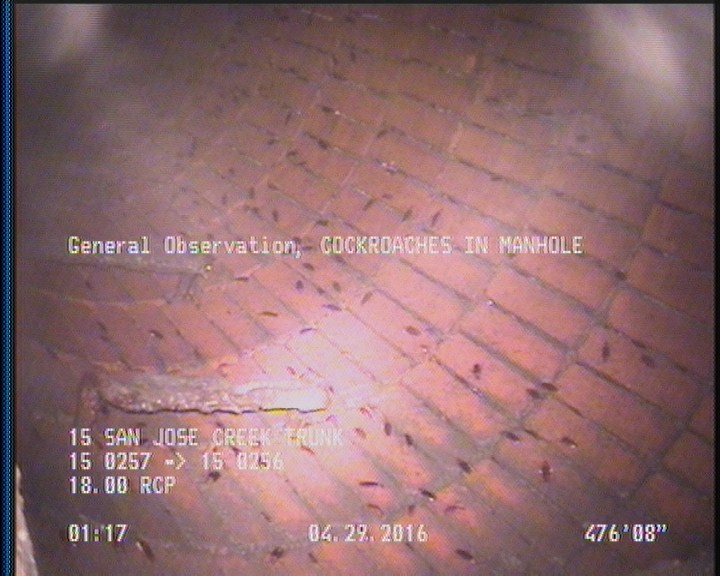

  • General Observation - COCKROACHES IN MANHOLE

    476.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P12179Work order 568734

Observations (15)

DistanceCodeObservation
73.3TFC—
2MGOMAG COATING 50%
179TFC—
478.2AMH15 0256
2DAGS—
476.7DAGS—
0MWL—
0AMH15 0257
276.4TBA—
464.9TBA—
0MWM—
373.5TBA—
476.7MGOCOCKROACHES IN MANHOLE
383.4TBA—
275.8TBA—

Properties (5)

additional_info
SC305608
custom_field_two
4
customer
LACSD
datetime
2016-04-29T00:58:04-07:00
sewer_category
GRAVITY
