Wastewater/Activity/PacpInspection/1.0Aug 5, 2016, 04:59 PM
15 0239_15 0238_20160805_101855.mp4
- Date
- 08/05/2016
- W/O
- 568734
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00627
- PipeID
- P12161
- Time
- 9:59 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3418
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- HACIENDA HEIHTS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_568734_TV15001_MAY2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 15 0239
- Downstream MH
- 15 0238
- Dir. of Survey
- Downstream
- Length Surveyed
- 433.1 ft.
- Total Length
- 433.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2P12
- O&M Rating
- 176
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 176
Observation photos (2)

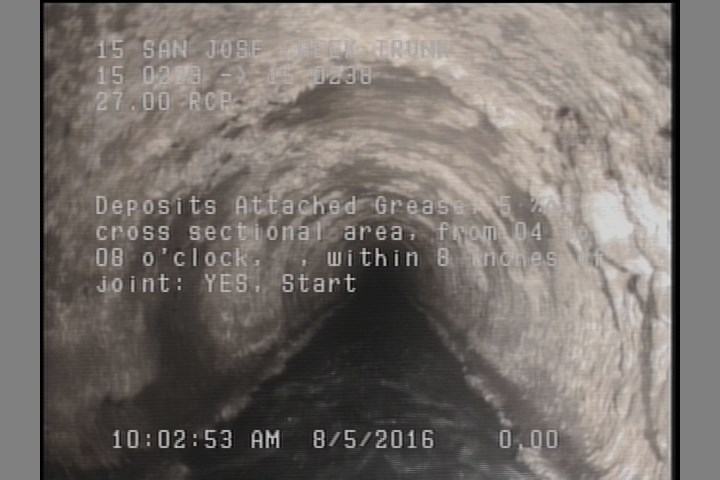

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

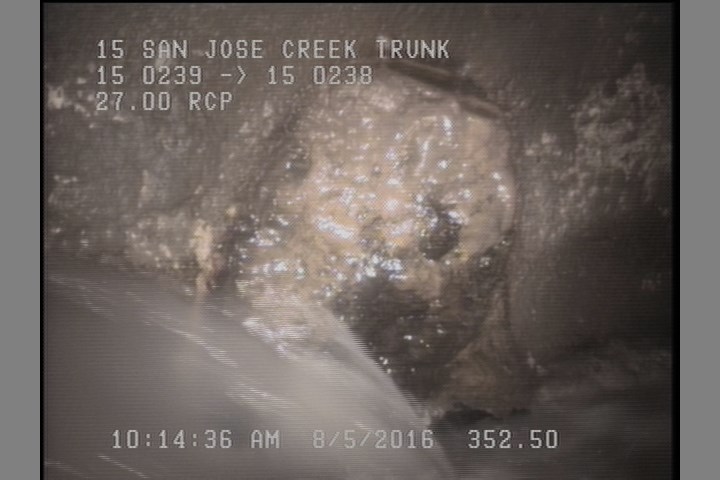

352.5 ft. - Deposits Settled Compacted, 5 %of cross sectional area, from 07 to 09 o'clock, , within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 430.7 | MGO | MAGNEZIUM H.O.50% FINISH |
| 433.2 | VC | — |
| 2 | DAGS | — |
| 352.5 | DSC | — |
| 0 | AMH | 15 0239 |
| 433.2 | AMH | 15 0238 |
| 0 | VC | — |
| 0 | MWL | — |
| 2 | MGO | MAGNESIUM H.O. 50% START |
| 0 | MWM | — |
| 430.7 | DAGS | — |
Properties (5)
- additional_info
- SC305965
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-05T09:59:01-07:00
- sewer_category
- GRAVITY
