Wastewater/Activity/PacpInspection/1.0Aug 4, 2016, 03:49 PM
15 0246_15 0245_20160804_101909.mp4
- Date
- 08/04/2016
- W/O
- 568734
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00627
- PipeID
- P12168
- Time
- 8:49 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3417
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- HACIENDA HEIHTS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_568734_TV15001_MAY2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- 15 0246
- Downstream MH
- 15 0245
- Dir. of Survey
- Downstream
- Length Surveyed
- 868.6 ft.
- Total Length
- 868.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2V11
- O&M Rating
- 235
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 235
Observation photos (3)

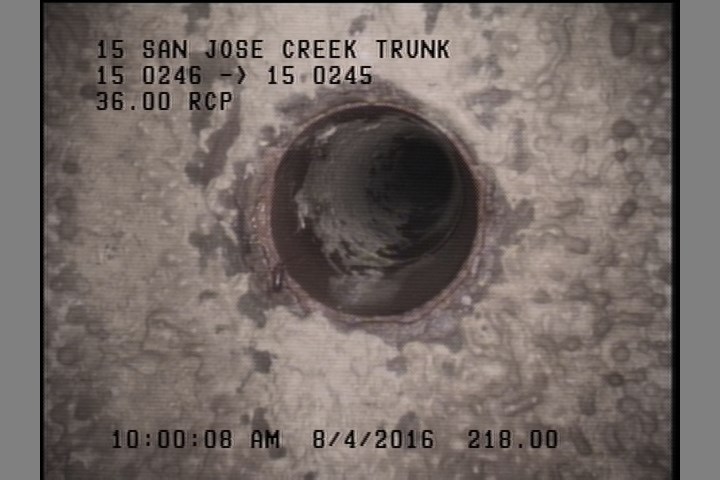

218 ft. - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 4"

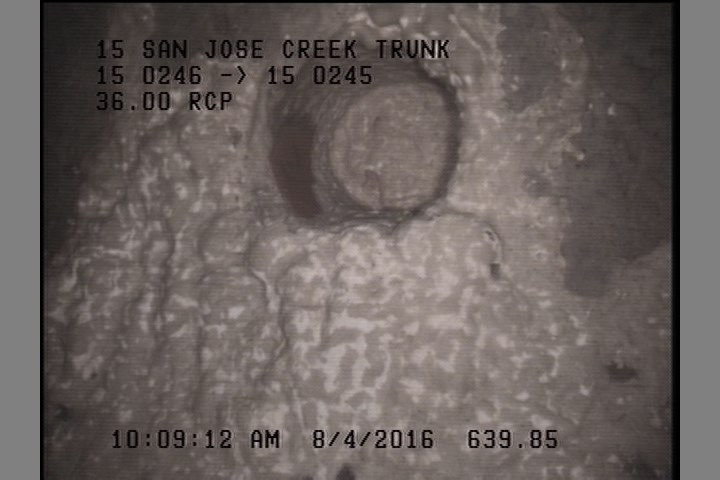

639.8 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

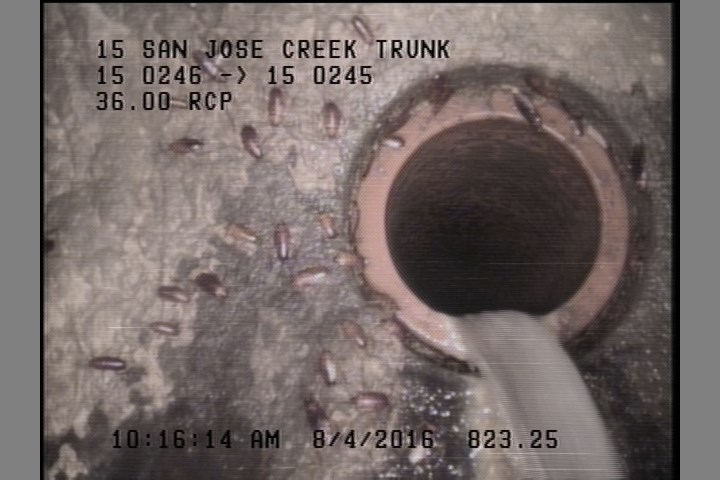

823.3 ft. - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 823.3 | TFA | — |
| 863.2 | OBZ | DEBRIS UNDER WATER |
| 863.2 | MGO | MAGNEZIUM H.O. 40% FINISH |
| 0 | MWL | — |
| 868.6 | AMH | 15 0245 |
| 2 | MGO | MAGNESIUM H.O. 40% START |
| 218 | TF | — |
| 277.9 | OBZ | DEBRIS UNDER WATER |
| 0 | AMH | 15 0246 |
| 867.7 | VC | — |
| 0 | MWM | — |
| 639.8 | TFC | — |
Properties (5)
- additional_info
- SC305964
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-04T08:49:02-07:00
- sewer_category
- GRAVITY
