Wastewater/Activity/PacpInspection/1.0May 17, 2016, 09:09 AM
15 0250_15 0249_20160517_024618.mp4
- Date
- 05/17/2016
- W/O
- 568734
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00627
- PipeID
- P12172
- Time
- 2:09 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3352
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- LA PUENTE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_568734_TV15001_MAY2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 15 0249
- Downstream MH
- 15 0250
- Dir. of Survey
- Upstream
- Length Surveyed
- 318.9 ft.
- Total Length
- 318.9 ft.
- Structural Index
- 3
- Structural Quick
- 3K00
- Structural Rating
- 183
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 130
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 313
Observation photos (4)

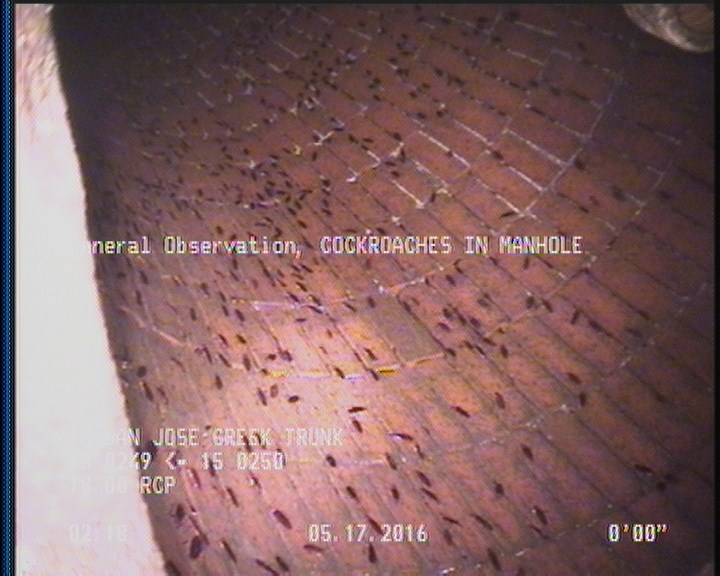

0 ft. - General Observation - COCKROACHES IN MANHOLE

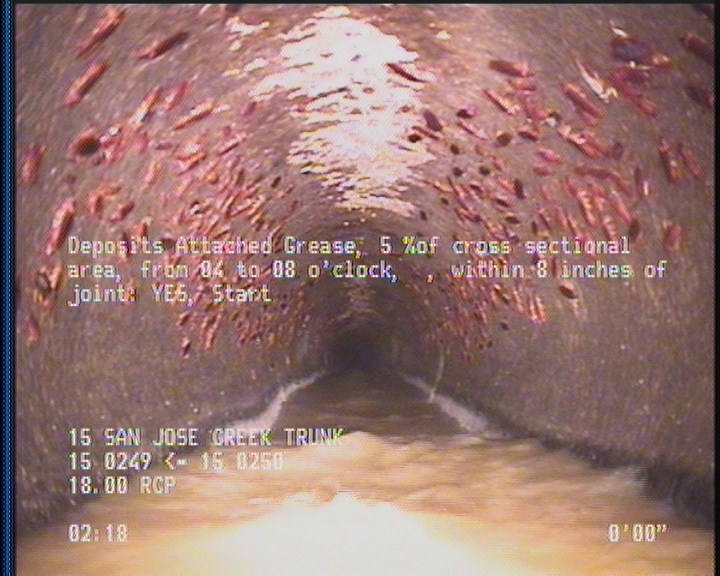

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

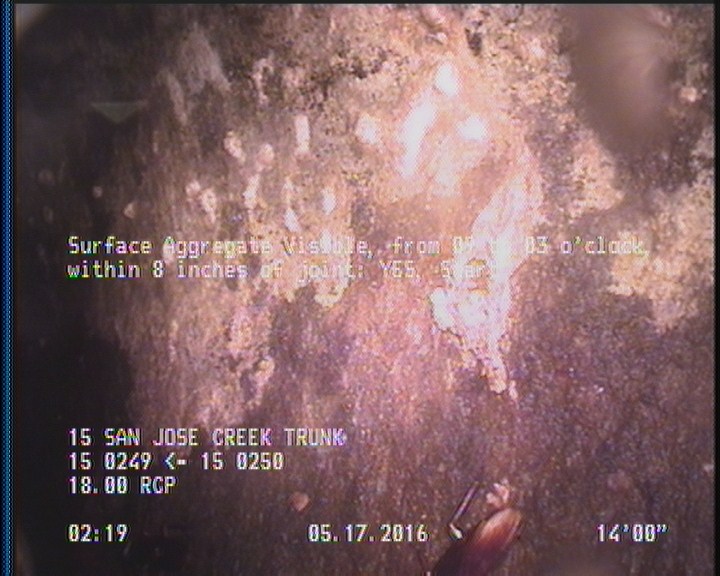

14 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

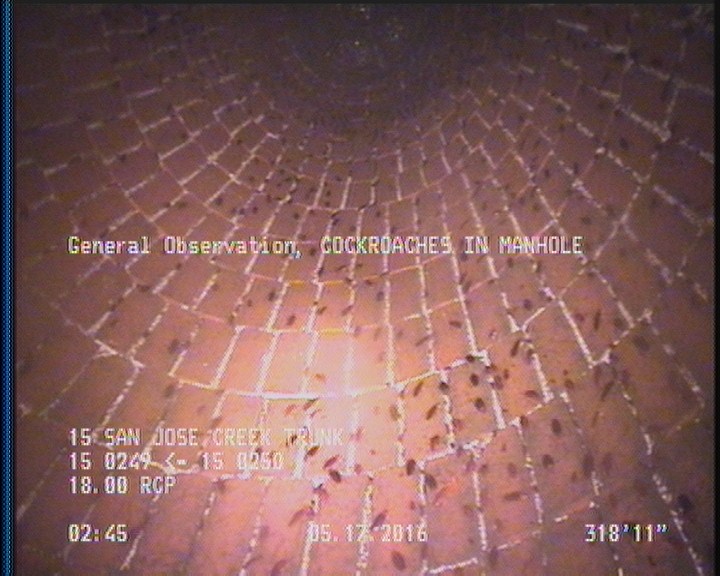

318.9 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 317.8 | DAGS | — |
| 0 | AMH | 15 0249 |
| 2 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 10 O'CLOCK |
| 317.8 | SAV | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 318.9 | MGO | COCKROACHES IN MANHOLE |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 14 | SAV | — |
| 34.6 | TFA | — |
| 112.1 | TBC | — |
| 318.9 | AMH | 15 0250 |
| 171.4 | MGO | MAG COATING 40% |
| 217.4 | TBC | — |
Properties (5)
- additional_info
- SC305632
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-05-17T02:09:21-07:00
- sewer_category
- GRAVITY
