Wastewater/Activity/PacpInspection/1.0May 18, 2016, 08:56 PM
15 0265_15 0264_20160518_141816.mp4
- Date
- 05/18/2016
- W/O
- 568734
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00627
- PipeID
- P12188
- Time
- 1:56 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3035
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- LA PUENTE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_568734_TV15001_MAY2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 15 0265
- Downstream MH
- 15 0264
- Dir. of Survey
- Downstream
- Length Surveyed
- 300.1 ft.
- Total Length
- 300.1 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2212
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (3)

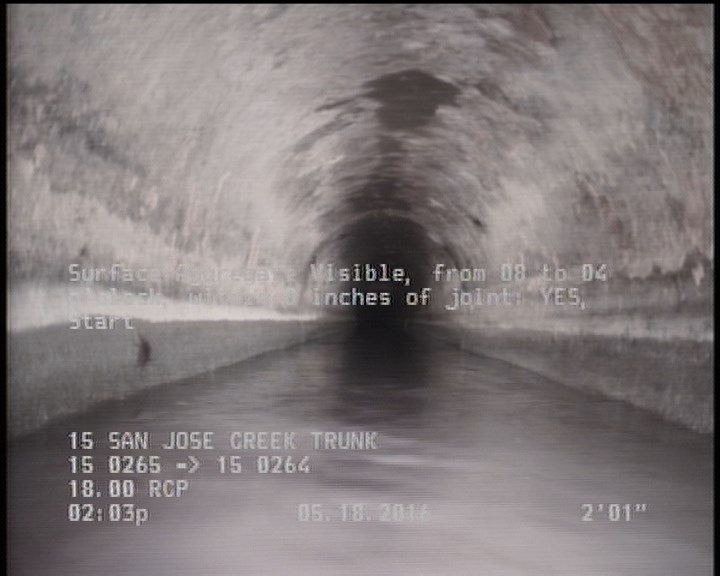

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

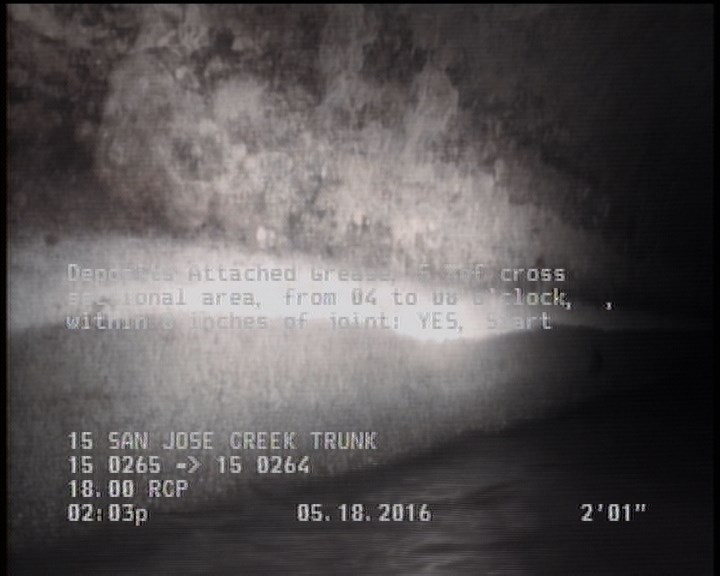

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

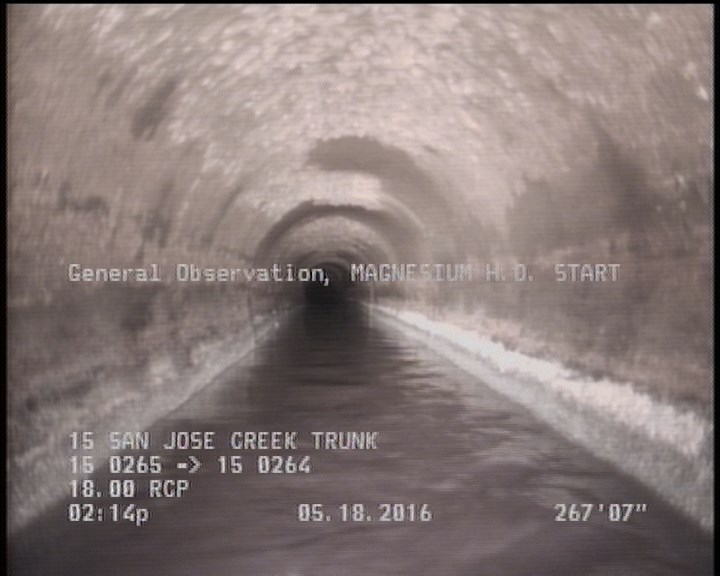

267.6 ft. - General Observation - MAGNESIUM H.O. START
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SAV | — |
| 284.1 | TFC | — |
| 0 | VC | — |
| 296.6 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | MGO | LATERAL AT MH 3 OCLOCK ACTIVE |
| 267.6 | MGO | MAGNESIUM H.O. START |
| 300 | VC | — |
| 2.1 | MGO | MAGNESIUM H.O. START |
| 300.1 | AMH | 15 0264 |
| 99 | TFC | — |
| 244.6 | MGO | MAGNEZIUM H.O. FINISH |
| 195.6 | TFC | — |
| 2.1 | DAGS | — |
| 0 | AMH | 15 0265 |
| 296.6 | SAV | — |
Properties (5)
- additional_info
- SC226643
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-05-18T13:56:29-07:00
- sewer_category
- GRAVITY
