Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 18, 2016, 10:14 PM

  • 15 0262_15 0261_20160518_153954.mp4

Date
05/18/2016
W/O
568734
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00627
PipeID
P12185
Time
3:14 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3035
Sewer Name
15 SAN JOSE CREEK TRUNK
City
LA PUENTE
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
34
Purpose
Routine Assessment
Project
WO_568734_TV15001_MAY2016
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
15 0262
Downstream MH
15 0261
Dir. of Survey
Downstream
Length Surveyed
411.4 ft.
Total Length
411.4 ft.
Structural Index
3
Structural Quick
3O00
Structural Rating
243
O&M Index
2
O&M Quick
332O
O&M Rating
175
Overall Index
2
Overall Quick
—
Overall Rating
418
Pipe schematic from manhole 15 0262 to 15 0261
MH: 15 0262MH: 15 0261downstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 02620 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. VC - Vermin Cockroach0 ft. MWL - Water Level, 30 %of cross sectional area2.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.7 ft. MGO - General Observation - MAGNESIUM H.O. START2.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start97.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"193.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"236.7 ft. OBN - Obstacles Construction Debris, 20 %of cross sectional area, from 04 to 08 o'clock - NOT VISIBLE258.6 ft. OBN - Obstacles Construction Debris, 20 %of cross sectional area, from 04 to 08 o'clock - NOT VISIBLE306.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"318.6 ft. OBN - Obstacles Construction Debris, 20 %of cross sectional area, from 04 to 08 o'clock - NOT VISIBLE363.2 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"408.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish408.5 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH408.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish411.3 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK CAPPED411.3 ft. VC - Vermin Cockroach411.4 ft. AMH - Downstream Manhole, Survey Ends - 15 0261

Observation photos (4)

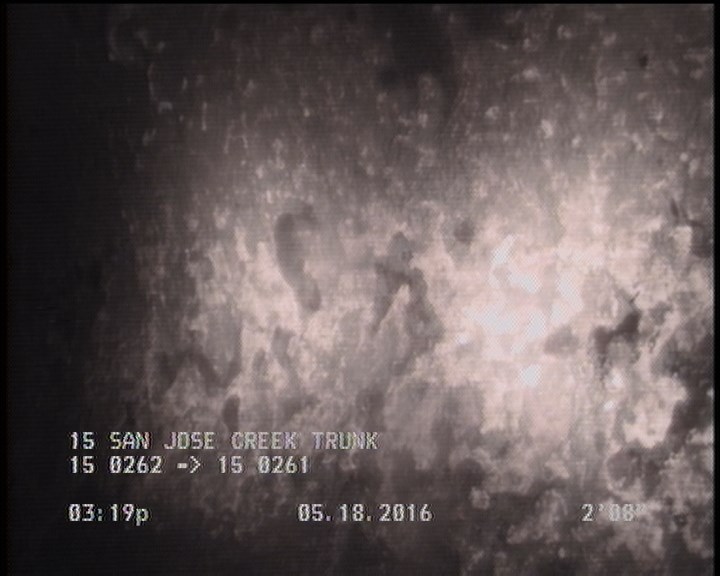

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

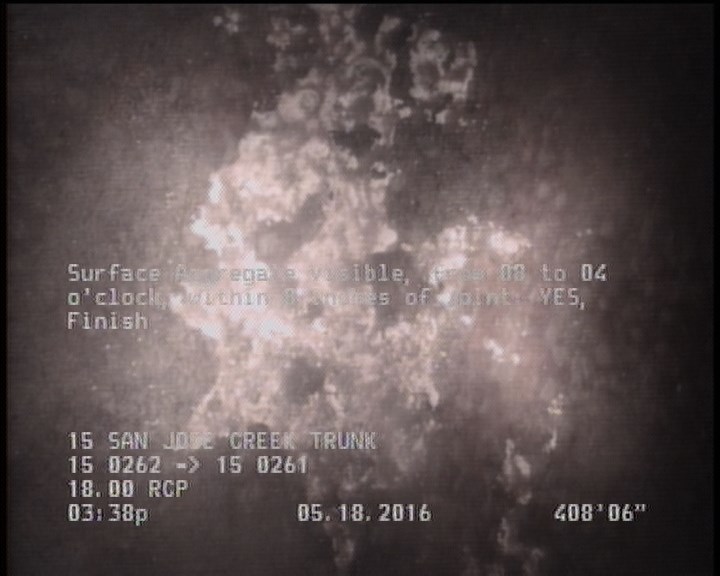

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    408.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

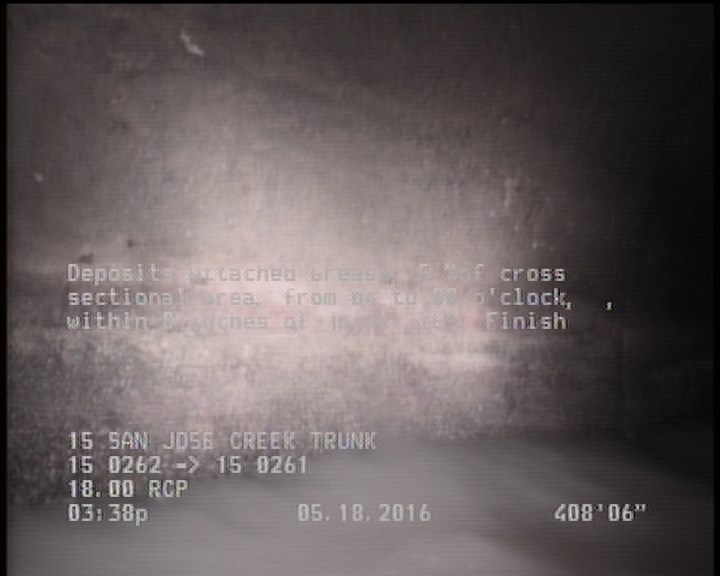

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

    408.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

All inspections of P12185Work order 568734

Observations (20)

DistanceCodeObservation
411.3MGOLATERAL AT MH 3 OCLOCK CAPPED
363.2TBC—
2.7DAGS—
258.6OBNNOT VISIBLE
97.2TFC—
408.5SAV—
193.4TFA—
318.6OBNNOT VISIBLE
0AMH15 0262
411.3VC—
0MWM—
408.5MGOMAGNEZIUM H.O. FINISH
306.5TFC—
236.7OBNNOT VISIBLE
0VC—
0MWL—
411.4AMH15 0261
2.7MGOMAGNESIUM H.O. START
2.7SAV—
408.5DAGS—

Properties (5)

additional_info
SC226643
custom_field_two
4
customer
LACSD
datetime
2016-05-18T15:14:34-07:00
sewer_category
GRAVITY
