Wastewater/Activity/PacpInspection/1.0Aug 2, 2016, 04:48 PM
15 0261_15 0260_20160802_140934.mp4
- Date
- 08/02/2016
- W/O
- 568734
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00627
- PipeID
- P12184
- Time
- 9:48 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3415
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- CITY OF INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_568734_TV15001_MAY2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 15 0261
- Downstream MH
- 15 0260
- Dir. of Survey
- Downstream
- Length Surveyed
- 449.7 ft.
- Total Length
- 449.7 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

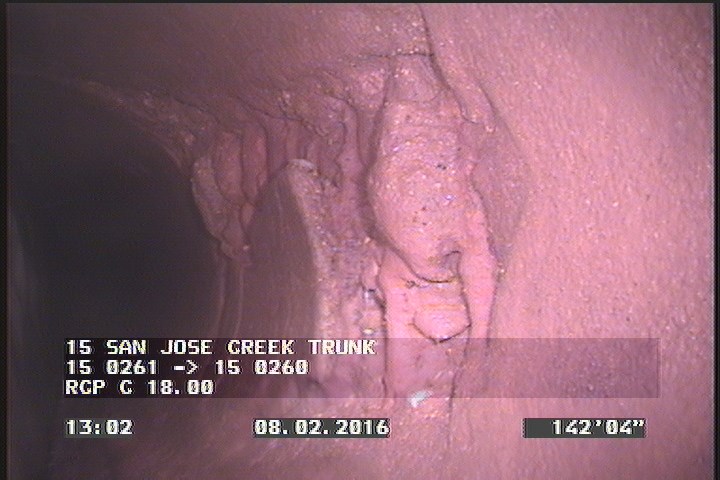

142.3 ft. - Broken, from 10 to 02 o'clock, within 8 inches of joint: YES

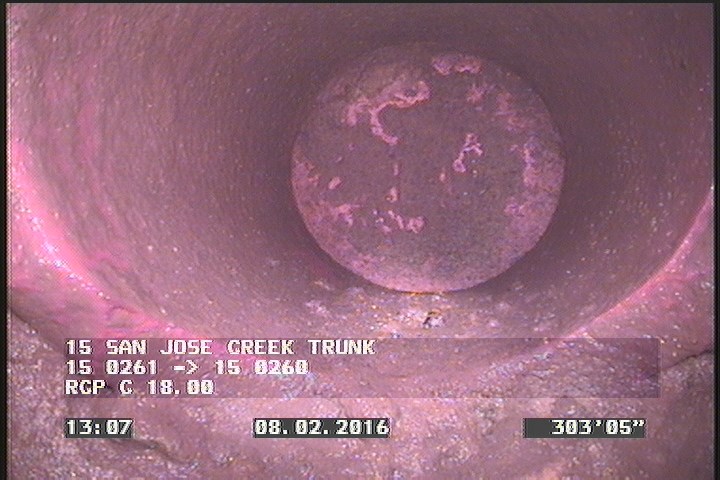

303.4 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 398.5 | TFC | — |
| 126.9 | TFC | — |
| 449.7 | AMH | 15 0260 |
| 200 | TFC | — |
| 0 | AMH | 15 0261 |
| 142.3 | B | — |
| 303.4 | TFC | — |
| 0 | MGO | CONNECTION AT THE MH 3 O'CLOCK ACTIVE |
| 68.8 | TFC | — |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC305961
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-02T09:48:40-07:00
- sewer_category
- GRAVITY
