Wastewater/Activity/PacpInspection/1.0Apr 29, 2016, 07:18 AM
15 0269_15 0268_20160429_002824.mp4
- Date
- 04/29/2016
- W/O
- 568734
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00627
- PipeID
- P12192
- Time
- 12:18 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3334
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_568734_TV15001_MAY2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 15 0268
- Downstream MH
- 15 0269
- Dir. of Survey
- Upstream
- Length Surveyed
- 220.8 ft.
- Total Length
- 220.8 ft.
- Structural Index
- 2
- Structural Quick
- 2H00
- Structural Rating
- 88
- O&M Index
- 2
- O&M Quick
- 2H00
- O&M Rating
- 88
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 176
Observation photos (2)

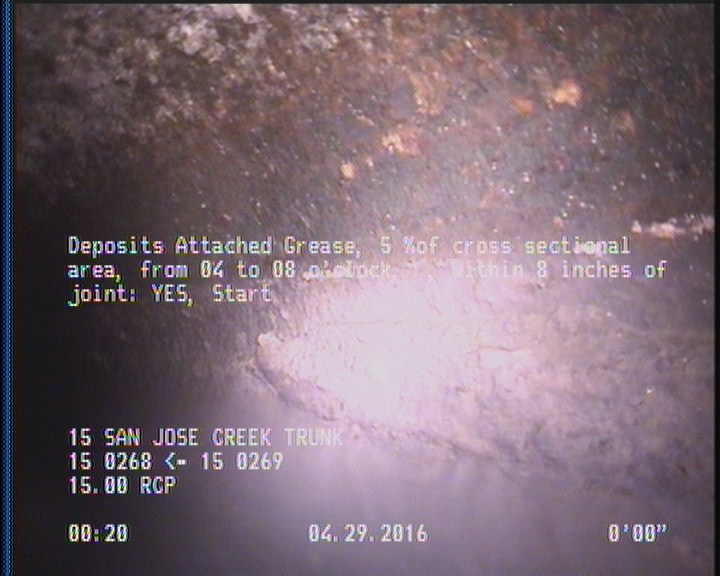

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

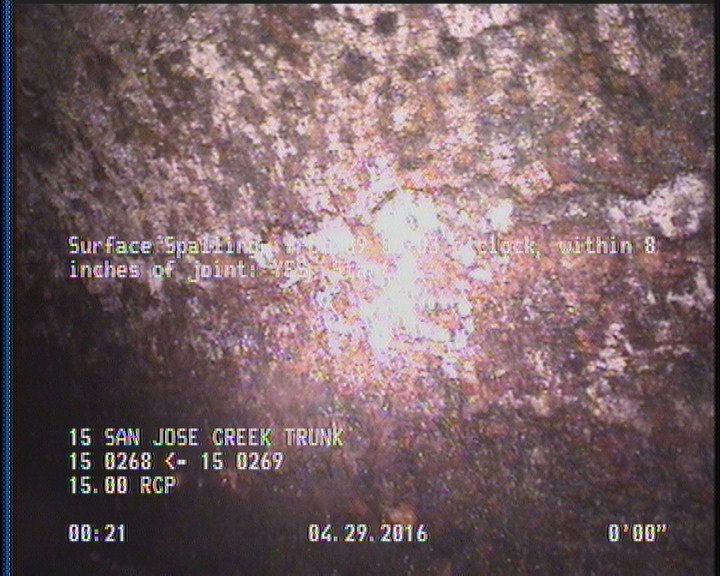

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWL | — |
| 154.7 | TB | — |
| 220.8 | AMH | 15 0269 |
| 0 | MWM | — |
| 2 | SSS | — |
| 0 | AMH | 15 0268 |
| 220.5 | SSS | — |
| 220.5 | DAGS | — |
| 146.9 | TBA | — |
| 56.4 | TFC | — |
Properties (5)
- additional_info
- SC305608
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-29T00:18:10-07:00
- sewer_category
- GRAVITY
