Wastewater/Activity/PacpInspection/1.0Apr 29, 2016, 09:46 AM
15 0257A_15 0257_20160429_025238.mp4
- Date
- 04/29/2016
- W/O
- 568734
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00627
- PipeID
- P12180
- Time
- 2:46 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3334
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- LA PUENTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_568734_TV15001_MAY2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 15 0257
- Downstream MH
- 15 0257A
- Dir. of Survey
- Upstream
- Length Surveyed
- 36.6 ft.
- Total Length
- 36.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2700
- O&M Rating
- 14
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (2)

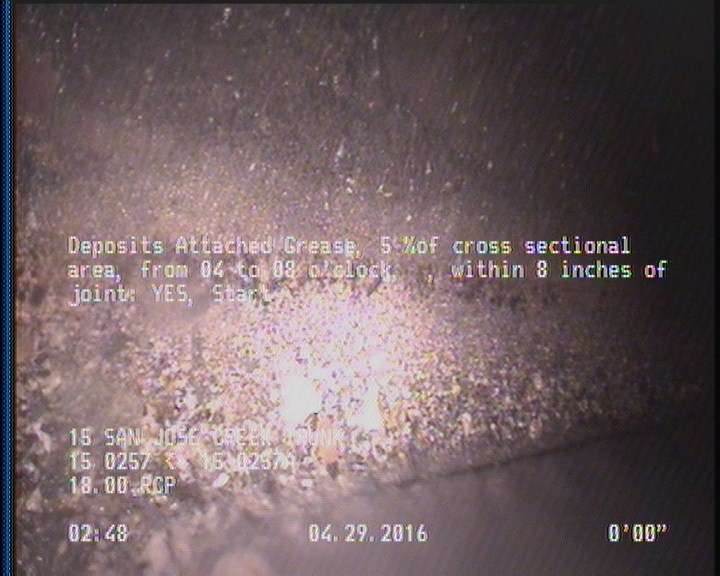

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

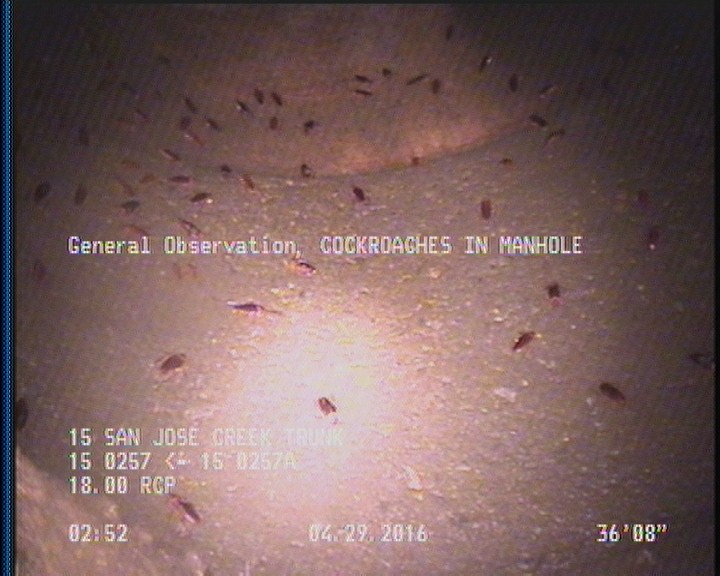

36.6 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 36.6 | MGO | ACTIVE CONNEC TION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
| 0 | AMH | 15 0257 |
| 2 | MGO | MAG COATING 60% |
| 36.6 | MGO | COCKROACHES IN MANHOLE |
| 36.6 | AMH | 15 0257A |
| 0 | MWM | — |
| 0 | MWL | — |
| 34.8 | DAGS | — |
Properties (5)
- additional_info
- SC305608
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-29T02:46:22-07:00
- sewer_category
- GRAVITY
