Wastewater/Activity/PacpInspection/1.0Apr 29, 2016, 09:06 AM
15 0254_15 0253_20160429_021706.mp4
- Date
- 04/29/2016
- W/O
- 568734
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00627
- PipeID
- P12176
- Time
- 2:06 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3334
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- LA PUENTE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_568734_TV15001_MAY2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 15 0254
- Downstream MH
- 15 0253
- Dir. of Survey
- Downstream
- Length Surveyed
- 60.2 ft.
- Total Length
- 60.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 312C
- O&M Rating
- 43
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 43
Observation photos (4)

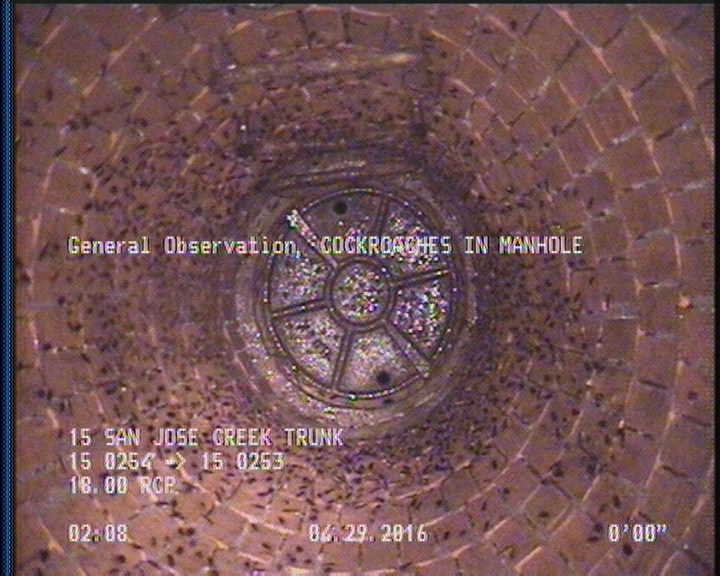

0 ft. - General Observation - COCKROACHES IN MANHOLE

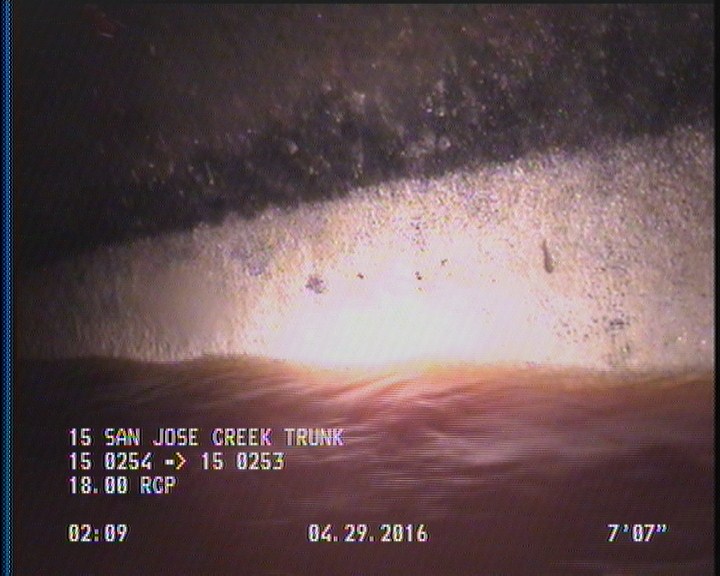

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

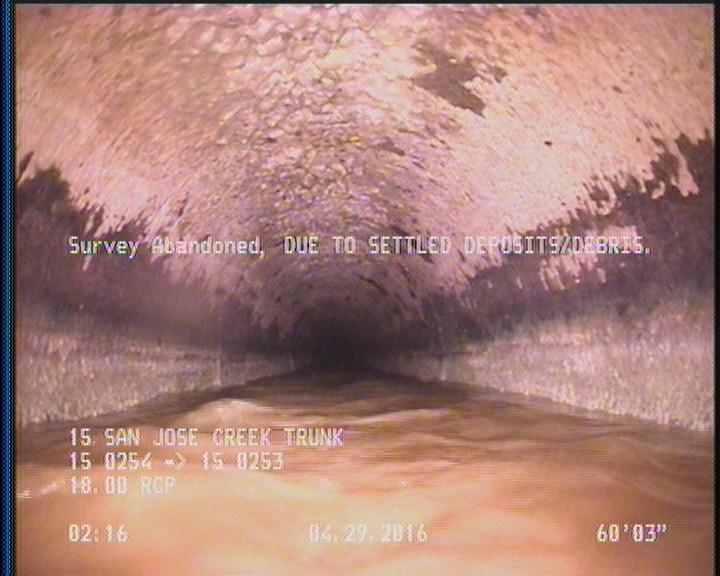

60.2 ft. - Survey Abandoned - DUE TO SETTLED DEPOSITS/DEBRIS.

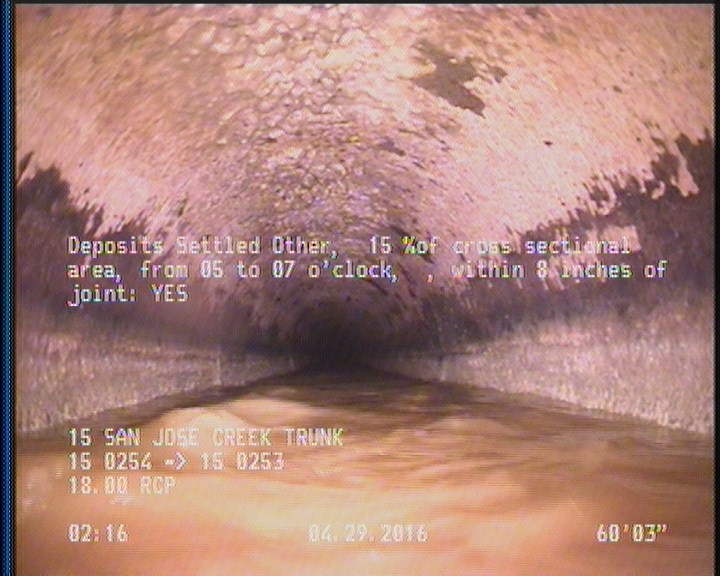

60.2 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 60.2 | DSZ | — |
| 60.2 | MSA | DUE TO SETTLED DEPOSITS/DEBRIS. |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 48.2 | TFC | — |
| 60.2 | DAGS | — |
| 0 | AMH | 15 0254 |
| 60.2 | DSZ | — |
| 22 | DSZ | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 7.5 | MGO | MAG COATING 60% |
| 0 | MWM | — |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC305608
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-29T02:06:35-07:00
- sewer_category
- GRAVITY
