Wastewater/Activity/PacpInspection/1.0May 10, 2016, 05:53 AM
15 0233_15 0232A_20160509_231344.mp4
- Date
- 05/09/2016
- W/O
- 568734
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00627
- PipeID
- P12155
- Time
- 10:53 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3344
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_568734_TV15001_MAY2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- 15 0233
- Downstream MH
- 15 0232A
- Dir. of Survey
- Downstream
- Length Surveyed
- 453.8 ft.
- Total Length
- 453.8 ft.
- Structural Index
- 3
- Structural Quick
- 3Q2Q
- Structural Rating
- 450
- O&M Index
- 2
- O&M Quick
- 2a00
- O&M Rating
- 336
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 786
Observation photos (3)

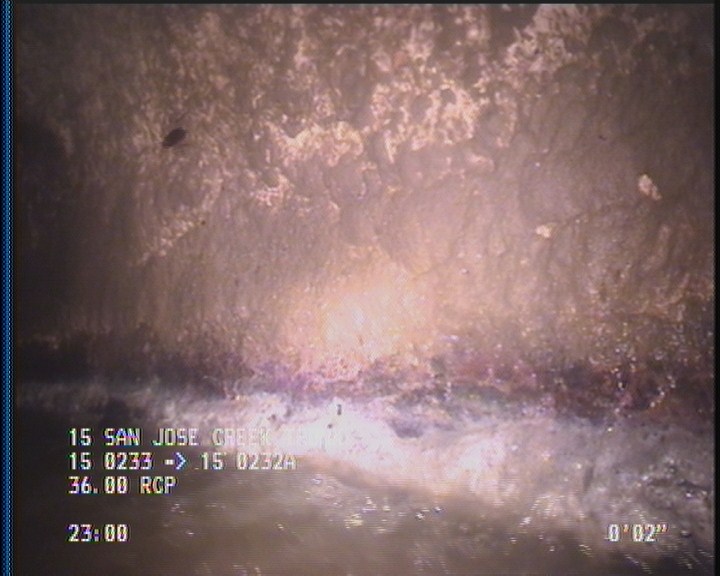

0.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

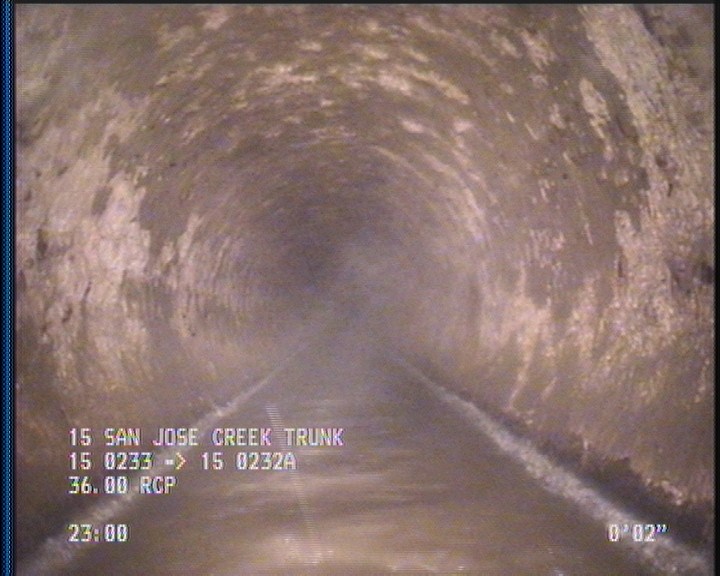

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

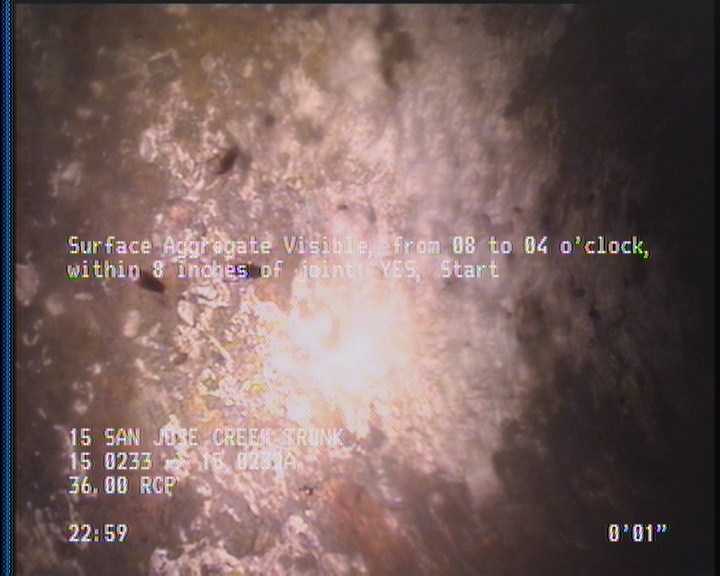

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| -0.2 | MWM | — |
| 453.6 | MGO | COCKROACHES IN MANHOLE |
| 453.6 | AMH | 15 0232A |
| 2 | SAV | — |
| -0.2 | MWL | — |
| 56.8 | DSZ | — |
| 404.2 | TFC | — |
| 0.2 | DAGS | — |
| 451 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 451 | DAGS | — |
| 451 | SSS | — |
| 451 | SAV | — |
| 0 | AMH | 15 0233 |
| 205.6 | TFC | — |
| 447.2 | DSZ | — |
Properties (5)
- additional_info
- SC305623
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-09T22:53:40-07:00
- sewer_category
- GRAVITY
