Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 10, 2016, 07:47 AM

  • 15 0234_15 0233_20160510_010352.mp4

Date
05/10/2016
W/O
568734
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00627
PipeID
P12156
Time
12:47 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3344
Sewer Name
15 SAN JOSE CREEK TRUNK
City
INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
33
Purpose
Routine Assessment
Project
WO_568734_TV15001_MAY2016
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
15 0233
Downstream MH
15 0234
Dir. of Survey
Upstream
Length Surveyed
664.7 ft.
Total Length
664.7 ft.
Structural Index
3
Structural Quick
3Y2Y
Structural Rating
660
O&M Index
2
O&M Quick
2K00
O&M Rating
124
Overall Index
2
Overall Quick
—
Overall Rating
784
Pipe schematic from manhole 15 0233 to 15 0234
MH: 15 0233MH: 15 0234upstream0 ft. AMH - Upstream Manhole, Survey Ends - 15 02341 ft. MGO - General Observation - COCKROACHES IN MANHOLE1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish7.4 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish292.2 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"296.8 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"317.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start658.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start662.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start664.7 ft. AMH - Downstream Manhole, Survey Begins - 15 0233664.7 ft. MWL - Water Level, 20 %of cross sectional area664.7 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (3)

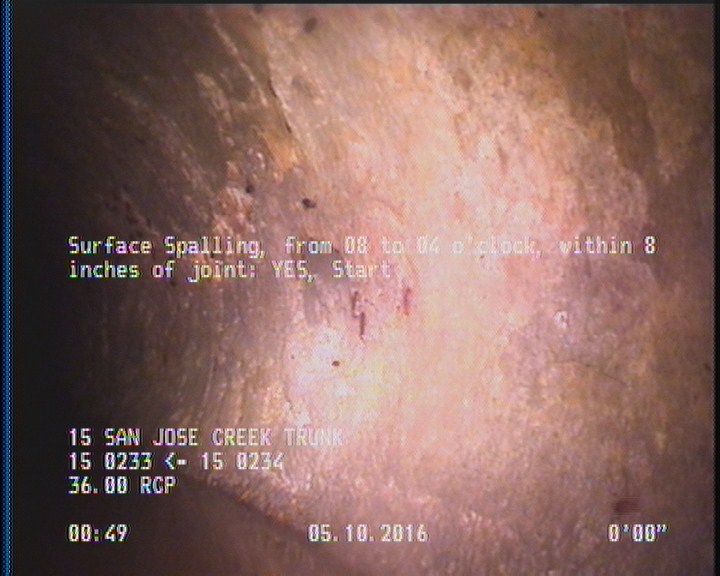

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

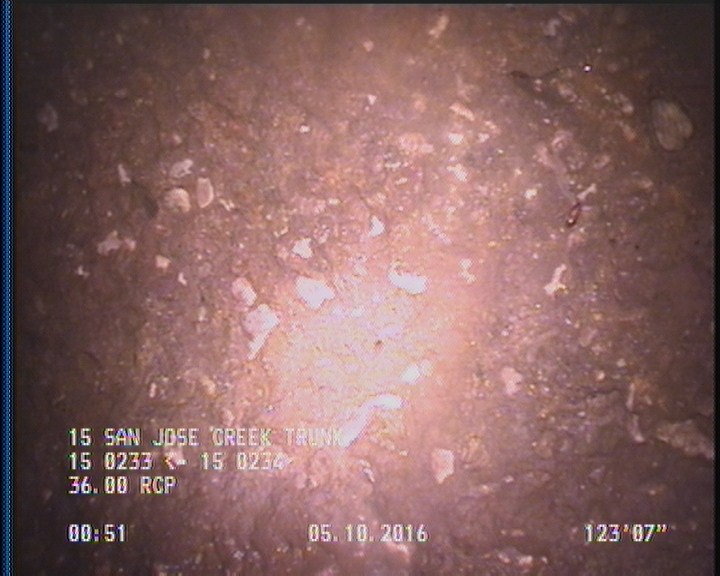

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

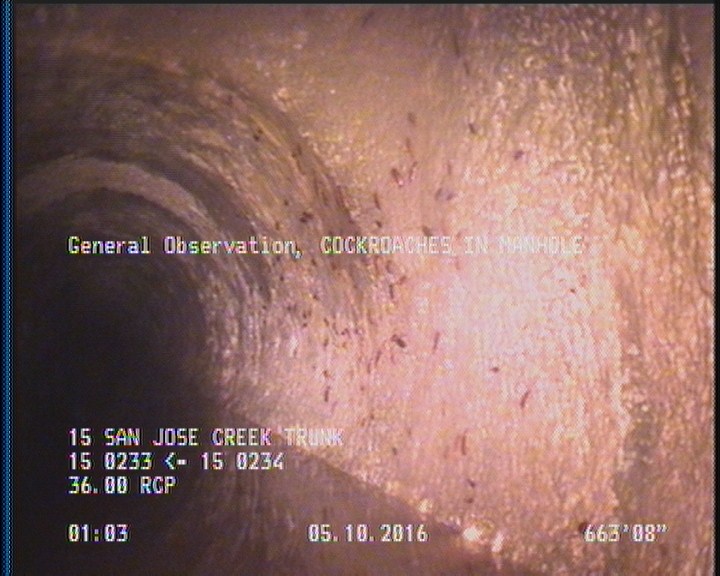

  • General Observation - COCKROACHES IN MANHOLE

    663.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P12156Work order 568734

Observations (13)

DistanceCodeObservation
0AMH15 0233
657.3DSZ—
664.7AMH15 0234
0MWL—
367.9TBA—
2SSS—
663.7MGOCOCKROACHES IN MANHOLE
0MWM—
6SAV—
663.7SAV—
347.5DSZ—
663.7SSS—
372.5TBA—

Properties (5)

additional_info
SC305623
custom_field_two
3
customer
LACSD
datetime
2016-05-10T00:47:54-07:00
sewer_category
GRAVITY
