Wastewater/Activity/PacpInspection/1.0Dec 14, 2017, 08:32 AM
J 0117_J 0116_12142017_005009.mp4
- Date
- 12/14/2017
- W/O
- 0673968
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00065
- PipeID
- P11696
- Time
- 12:32 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0701
- Sewer Name
- J JOINT OUTFALL J - UNIT 3
- City
- T0RRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 31
- Purpose
- Capital Improvement Program Assesment
- Project
- 20171214MDM_JOINT_OUTFALL_J_UNIT_3
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- J 0117
- Downstream MH
- J 0116
- Dir. of Survey
- Downstream
- Length Surveyed
- 43 ft.
- Total Length
- 43 ft.
- Structural Index
- 2
- Structural Quick
- 2211
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

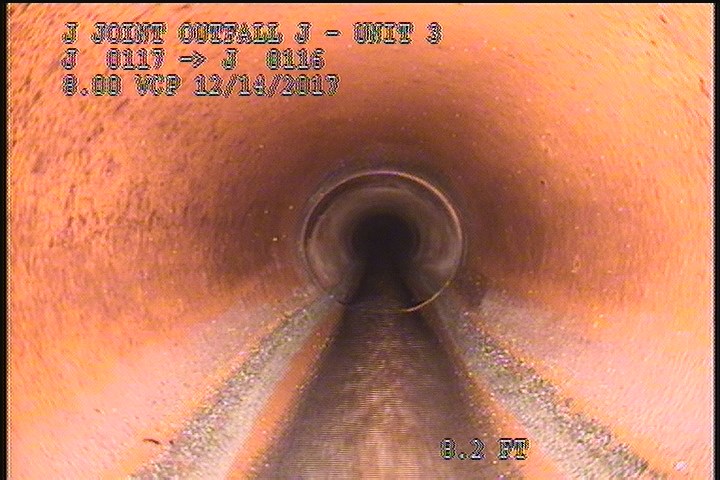

9.7 ft. - General Observation - 8" VCP

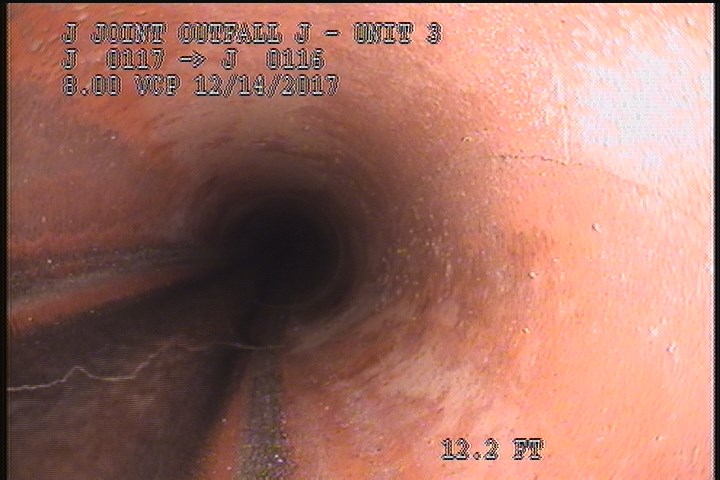

12.2 ft. - Fracture Circumferential, from 06 to 05 o'clock, within 8 inches of joint: YES - SLIGHT LONG

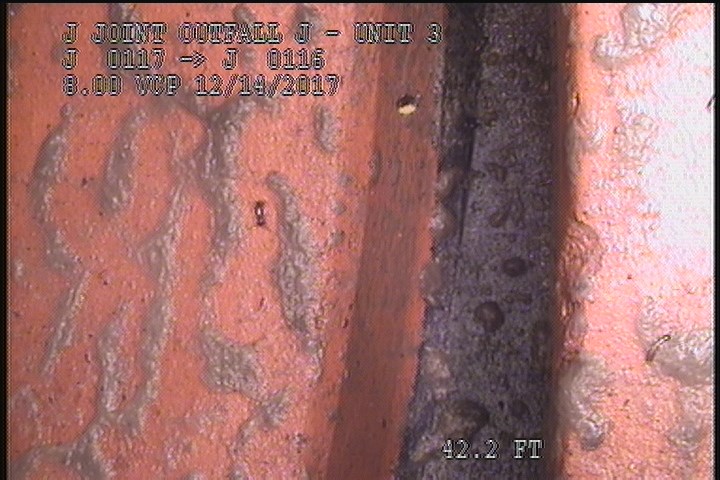

42.2 ft. - Joint Separated Medium - SEALED
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 12.2 | FC | HAIRLINE |
| 12.2 | FC | SLIGHT LONG |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 43 | AMH | 1:50AM |
| 9.7 | MGO | 8" VCP |
| 42.2 | JSM | SEALED |
| 0 | AMH | 12:35AM |
| 9.7 | MGO | Conn. @ Mh, 9 O' Clock. OPEN |
Properties (4)
- custom_field_three
- CIRCUM SLIGHT FRACTURE LONG
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-14T00:32:39-08:00
