Wastewater/Activity/PacpInspection/1.0Dec 13, 2017, 06:10 PM
Section#1_C 0356_C 0355__12132017__G6882.mp4
- Date
- 12/13/2017
- W/O
- 0643523
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00139
- PipeID
- P09819
- Time
- 10:10 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6882
- Sewer Name
- C JOINT OUTFALL C - UNIT 8A
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 20171213DF_JOINT_OUTFALL_C_UNIT_8A
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Upstream MH
- C 0356
- Downstream MH
- C 0355
- Dir. of Survey
- Downstream
- Length Surveyed
- 311 ft.
- Total Length
- 311 ft.
- Structural Index
- 3
- Structural Quick
- 3X2K
- Structural Rating
- 491
- O&M Index
- 3
- O&M Quick
- 3221
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 499
Observation photos (6)

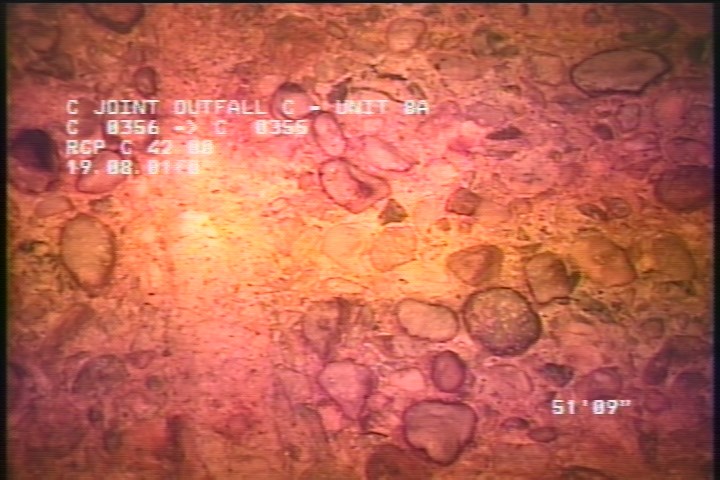

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

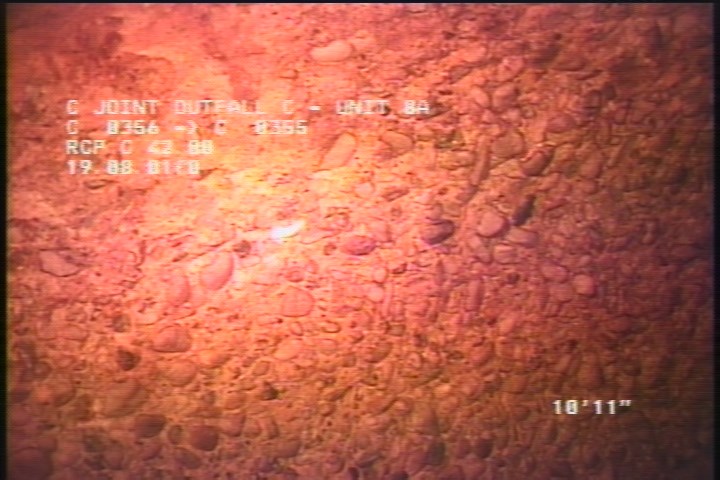

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

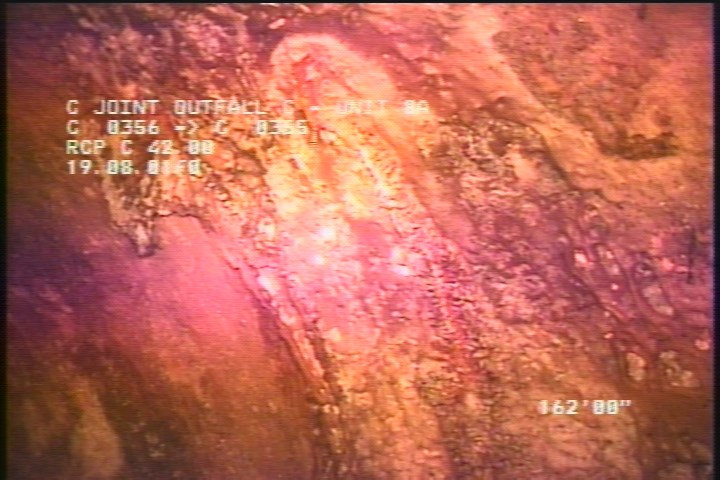

161.9 ft. - Infiltration Dripper, at 02 o'clock, within 8 inches of joint: YES

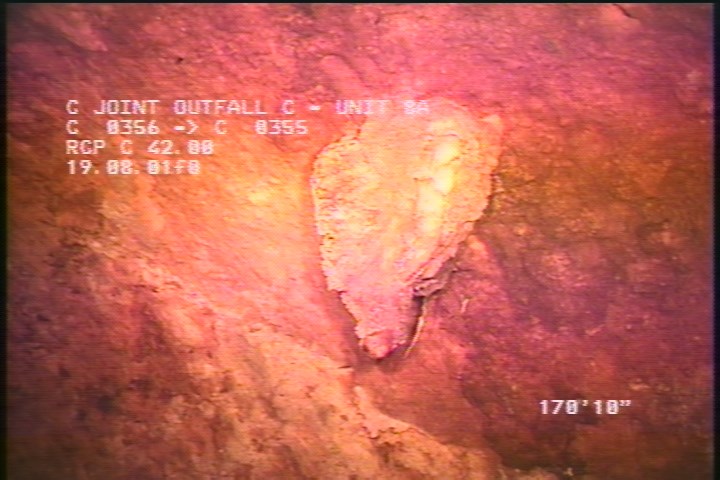

170.9 ft. - Obstacles Other, 5 %of cross sectional area, at 02 o'clock - CALCIUM/RAGS

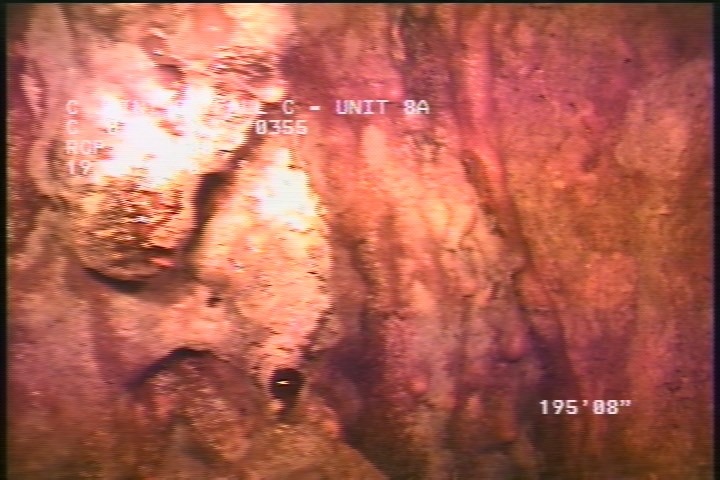

195.7 ft. - Infiltration Dripper, at 10 o'clock, within 8 inches of joint: YES

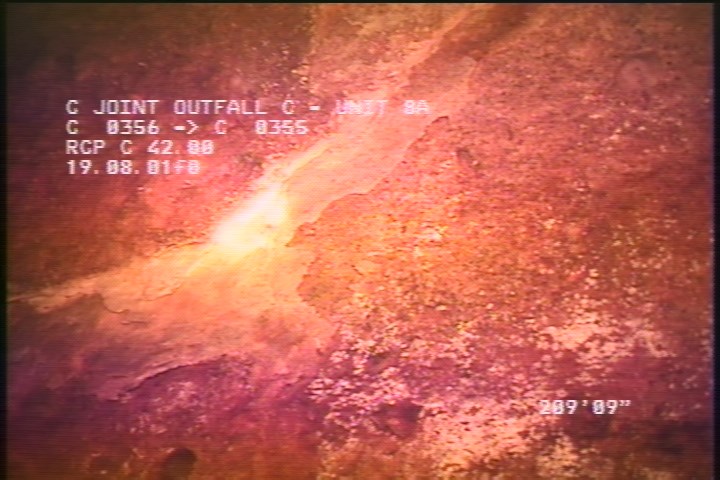

209.7 ft. - General Photograph - PEELING/FLAKING
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAV | — |
| 2 | CM | — |
| 161.9 | ID | — |
| 0.1 | MWM | — |
| 2 | SSS | — |
| 307.6 | SAV | — |
| 0.1 | MWL | — |
| 310.6 | CM | — |
| 311 | MSA | NOT ENOUGH FLOW |
| 0 | AMH | 10:14 AM |
| 209.7 | MGP | PEELING/FLAKING |
| 170.9 | OBZ | CALCIUM/RAGS |
| 195.7 | ID | — |
| 309.4 | SSS | — |
Properties (3)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-12-13T10:10:42-08:00
