Date
12/12/2017
W/O
0676904
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00818
PipeID
P17082
Time
11:47 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Jetting
Media Label
G6881
Sewer Name
22 LONE HILL AVENUE TRUNK
City
GLENDORA
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
14
Purpose
Routine Assessment
Project
20171212DF_LONE_HILL_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
22 0725A
Downstream MH
22 0726
Dir. of Survey
Upstream
Length Surveyed
202.7 ft.
Total Length
202.7 ft.
Structural Index
3
Structural Quick
3G2G
Structural Rating
200
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
203
Pipe schematic from manhole 22 0725A to 22 0726
MH: 22 0725AMH: 22 0726upstream0 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR0 ft. MGP - General Photograph0 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. MSA - Survey Abandoned - DEBRIS/BLOCKAGE1.5 ft. MGP - General Photograph - DEBRIS/ROOTS36.4 ft. MGP - General Photograph95.1 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"121.9 ft. MGP - General Photograph - SPALLING194.1 ft. TFD - Tap Factory Made Defective, at 09 o'clock, -, within 8 inches of joint: YES, 4" - 90% ROOTS200.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start200.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start202.7 ft. MGO - General Observation - CONN @ 9 O'CLOCK/ACTIVE202.7 ft. MWL - Water Level, 30 %of cross sectional area202.7 ft. MWM - Water Mark, 30 %of cross sectional area202.7 ft. AMH - Downstream Manhole, Survey Begins - 11:48 AM

Observation photos (5)

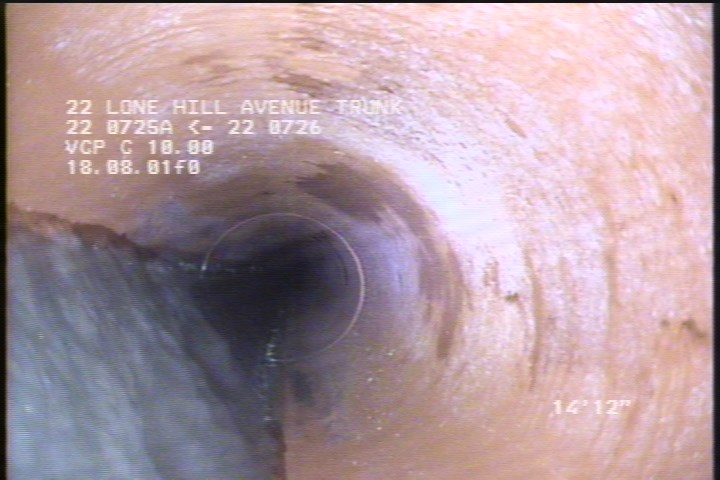

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

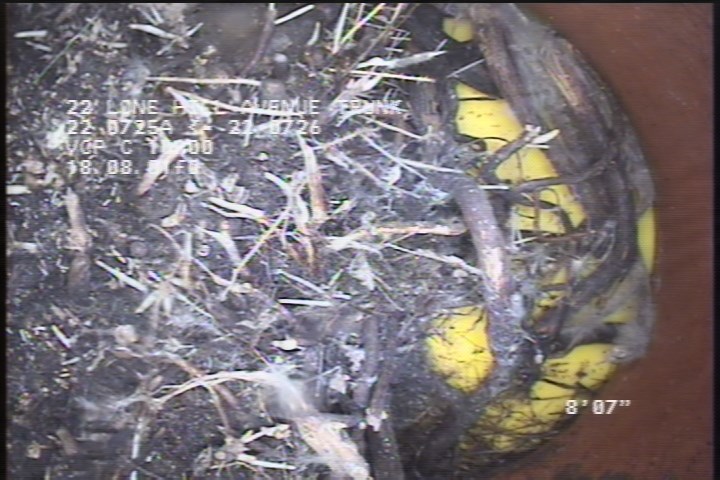

  • Tap Factory Made Defective, at 09 o'clock, -, within 8 inches of joint: YES, 4" - 90% ROOTS

    8.6 ft. - Tap Factory Made Defective, at 09 o'clock, -, within 8 inches of joint: YES, 4" - 90% ROOTS

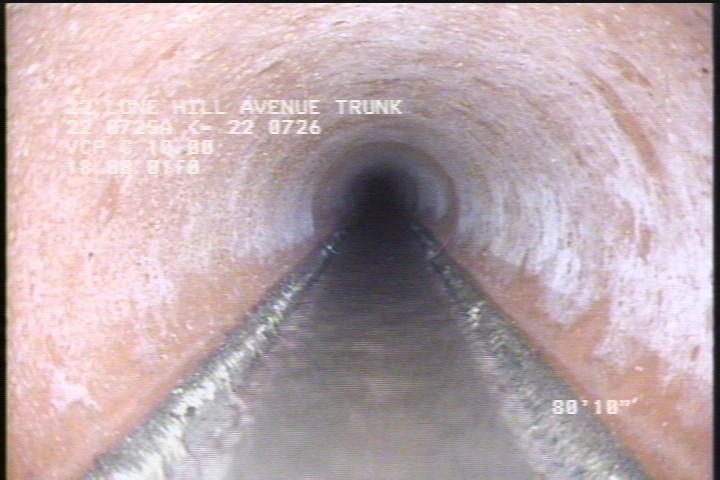

  • General Photograph - SPALLING

    80.8 ft. - General Photograph - SPALLING

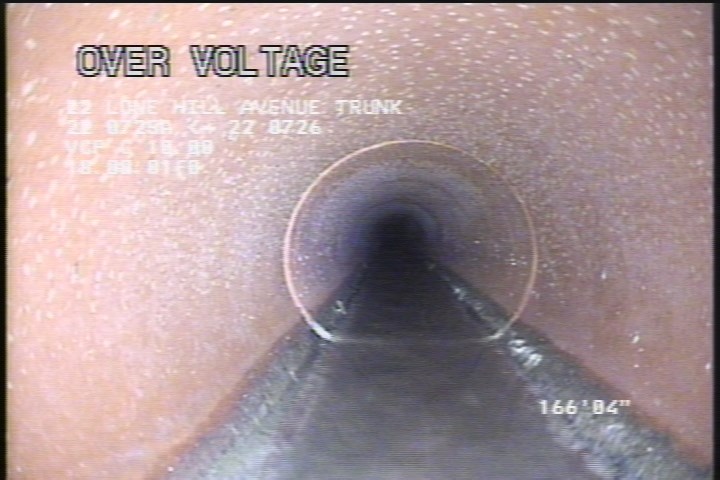

  • General Photograph

    166.3 ft. - General Photograph

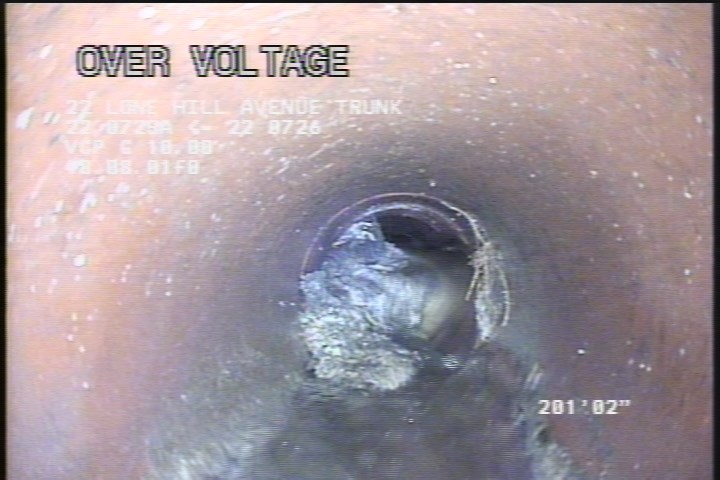

  • General Photograph - DEBRIS/ROOTS

    201.2 ft. - General Photograph - DEBRIS/ROOTS

All inspections of P17082Work order 0676904

Observations (16)

DistanceCodeObservation
2SSS—
0MGOCONN @ 9 O'CLOCK/ACTIVE
202.7RFJ—
2CM—
107.6TFC—
202.7MGP—
0MWL—
0MWM—
202.7SSS—
201.2MGPDEBRIS/ROOTS
202.7CM—
0AMH11:48 AM
80.8MGPSPALLING
8.6TFD90% ROOTS
166.3MGP—
202.7MSADEBRIS/BLOCKAGE

Properties (3)

custom_field_two
5
customer
LACSD
datetime
2017-12-12T11:47:43-08:00
