Wastewater/Activity/PacpInspection/1.0Dec 12, 2017, 05:45 PM
Section#1_22 0724_22 0723__12122017__G6881.mp4
- Date
- 12/12/2017
- W/O
- 0676904
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00818
- PipeID
- P17079
- Time
- 9:45 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Jetting
- Media Label
- G6881
- Sewer Name
- 22 LONE HILL AVENUE TRUNK
- City
- GLENDORA
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20171212DF_LONE_HILL_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 22 0724
- Downstream MH
- 22 0723
- Dir. of Survey
- Downstream
- Length Surveyed
- 288.5 ft.
- Total Length
- 288.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (3)

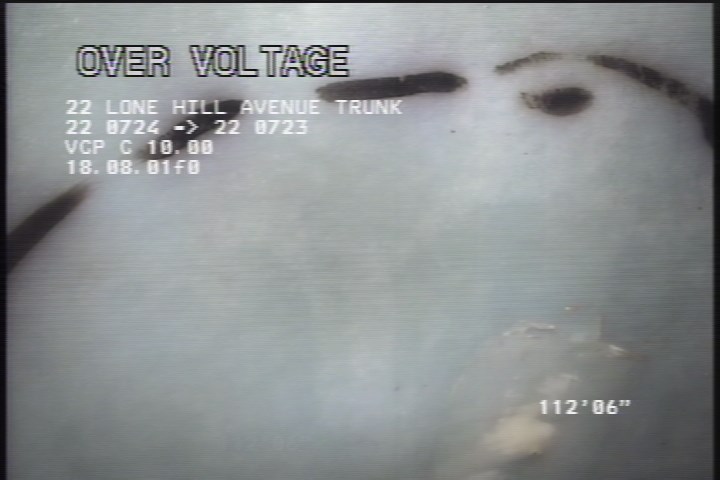

112.5 ft. - General Photograph - CIRCLE DRAWN ON LINER?

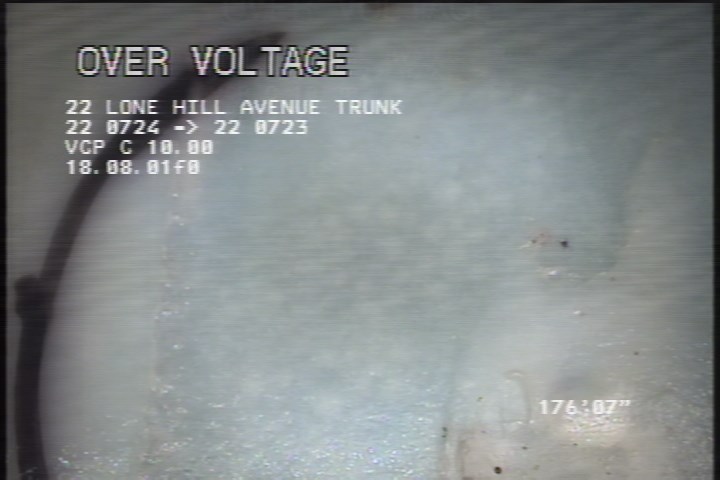

176.6 ft. - General Photograph - CIRCLE DRAWN FROM 7 TO 10 O'CLOCK

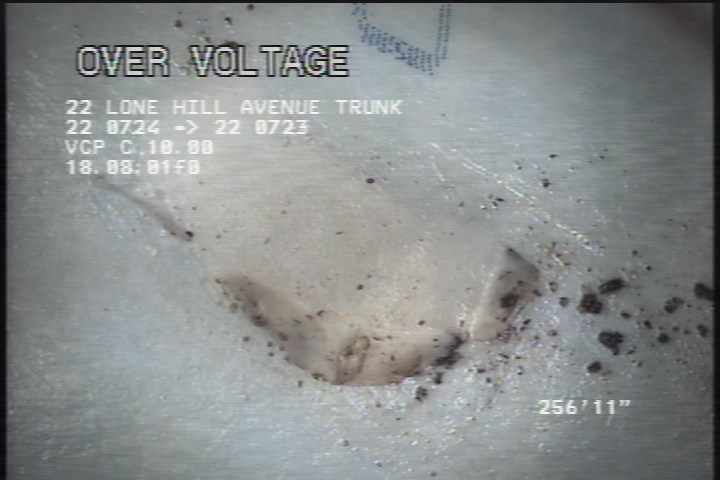

256.9 ft. - General Photograph - LINER
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 112.5 | MGP | CIRCLE DRAWN ON LINER? |
| 288.5 | AMH | 11:09 AM |
| 256.9 | MGP | LINER |
| 287.1 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 176.6 | MGP | CIRCLE DRAWN FROM 7 TO 10 O'CLOCK |
| 0 | AMH | 9:40 AM |
| 287.1 | MGO | LINER 8 TO 4 O'CLOCK/END |
| 0.1 | MWL | — |
| 0.1 | MWM | — |
| 2 | MGO | LINER FROM 8 TO 4 O'CLOCK/START |
Properties (5)
- additional_info
- LINER IN PIPE
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-12-12T09:45:38-08:00
- year_laid
- 20070301
