Wastewater/Activity/PacpInspection/1.0Dec 8, 2017, 08:03 PM
B 0231_B 0230_1282017_120616.mp4
- Date
- 12/08/2017
- W/O
- 0624598
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00085
- PipeID
- P08811
- Time
- 12:03 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7579
- Sewer Name
- B JOINT OUTFALL B - UNIT 2B
- City
- SOUTH EL MONTE
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- 20171208SHO_JOINT_OUTFALL_B_UNIT_2B
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- B 0230
- Downstream MH
- B 0231
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

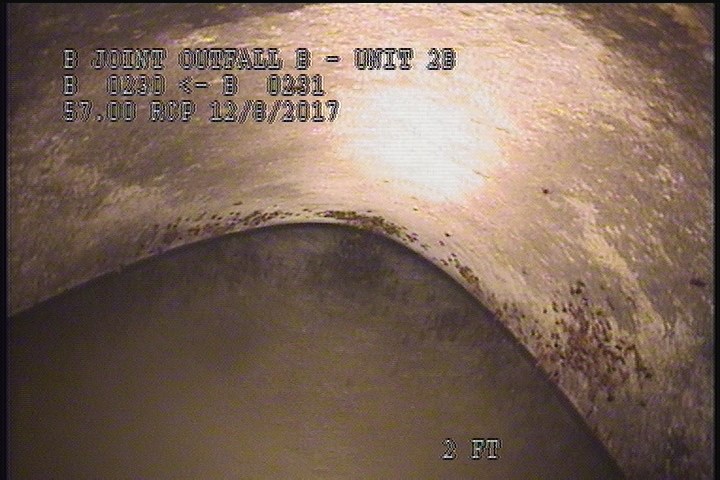

2 ft. - Survey Abandoned - VIEW OF THE UPLEG OF THE SIPHON

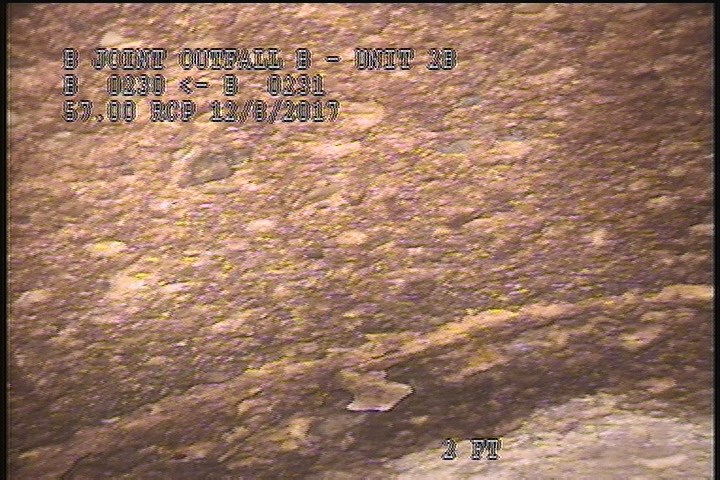

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | MSA | VIEW OF THE UPLEG OF THE SIPHON |
| 2 | SAV | — |
| 0 | AMH | 1205 |
Properties (5)
- additional_info
- LOOKING AT THE UPLEG OF THE SIPHON
- custom_field_three
- VISIBLE AGGREGATE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-08T12:03:50-08:00
