Wastewater/Activity/PacpInspection/1.0Dec 13, 2017, 12:45 PM
29 0464_29 0463_12132017_045808.mp4
- Date
- 12/13/2017
- W/O
- 0674132
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01090
- PipeID
- P24508
- Time
- 4:45 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0700
- Sewer Name
- 29 ALAMITOS PUMPING PLANT SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Capital Improvement Program Assesment
- Project
- 20171208MDM_ALAMITOS_PUMPING_PLANT_SEWER
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0464
- Downstream MH
- 29 0463
- Dir. of Survey
- Downstream
- Length Surveyed
- 144.9 ft.
- Total Length
- 144.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (4)

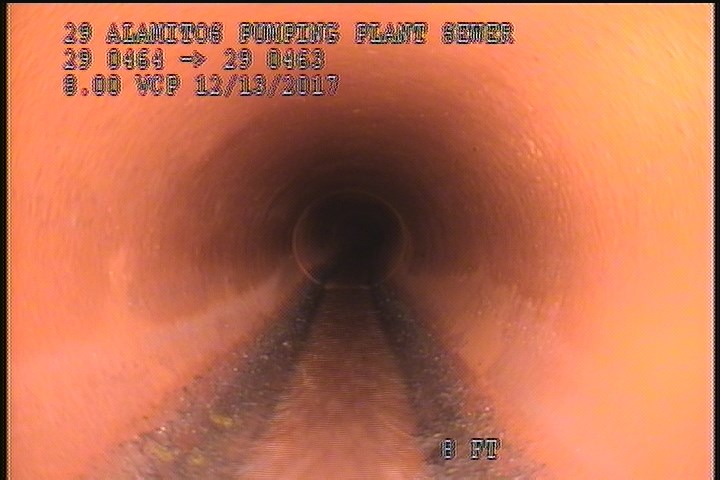

8 ft. - General Observation - 8" VCP

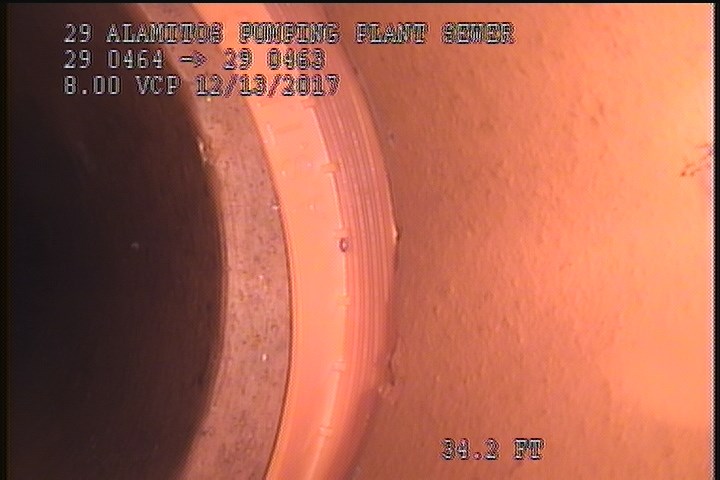

34.6 ft. - Joint Offset Large - SEALED

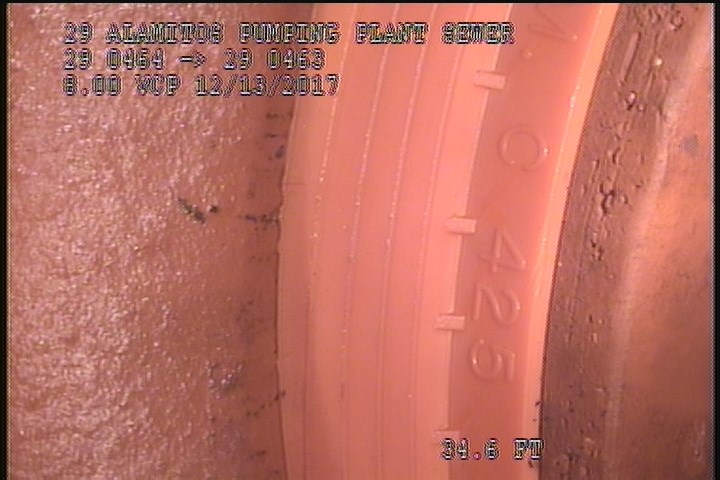

34.6 ft. - General Observation - SEALED JOINT

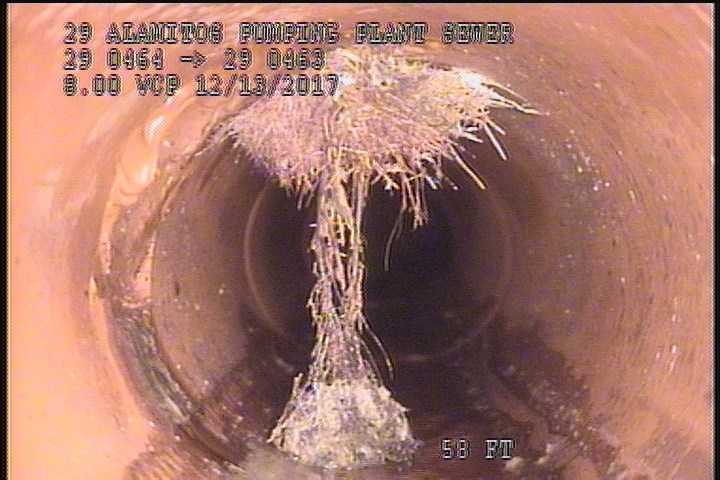

58.6 ft. - Roots Medium Lateral, from 06 to 12 o'clock, 20 %, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 4:55AM |
| 8 | MGO | 8" VCP |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 0 | MWL | — |
| 0 | MWM | — |
| 144.9 | AMH | 5:10AM |
| 34.6 | JOL | SEALED |
| 58.6 | TB | Active |
| 34.6 | MGO | SEALED JOINT |
| 58.6 | RML | — |
Properties (4)
- custom_field_three
- LARGE OFF SET JOINT SEALED
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-13T04:45:42-08:00
