Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 8, 2017, 10:43 AM

  • 29 0760_29 0755_1282017_035942.mp4

Date
12/08/2017
W/O
0674132
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01090
PipeID
P24398
Time
2:43 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0694
Sewer Name
29 ALAMITOS PUMPING PLANT SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Capital Improvement Program Assesment
Project
20171208MDM_ALAMITOS_PUMPING_PLANT_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0760
Downstream MH
29 0755
Dir. of Survey
Downstream
Length Surveyed
134.6 ft.
Total Length
134.6 ft.
Structural Index
1
Structural Quick
1200
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
1
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 29 0760 to 29 0755
MH: 29 0760MH: 29 0755downstream0 ft. MWL - Water Level, 0 %of cross sectional area - DRY LINE0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:55AM7.2 ft. JSM - Joint Separated Medium - SEALED8 ft. MGO - General Observation - 8" VCP8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active8.7 ft. JSM - Joint Separated Medium - SEALED JOINT11 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 6" - Open11 ft. MWL - Water Level, 5 %of cross sectional area13.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 6" - Open16.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 6" - Open18.9 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 6" - Open82 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 6" - Active134.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active134.1 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active134.6 ft. AMH - Downstream Manhole, Survey Ends - 4:10AM

Observation photos (2)

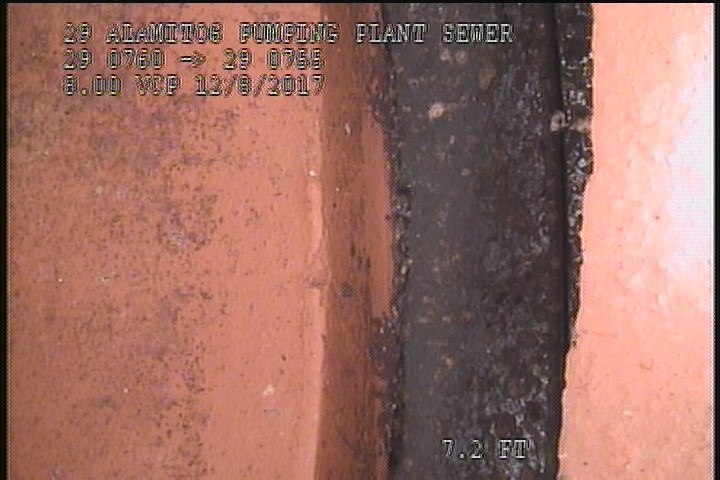

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active

    8 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active

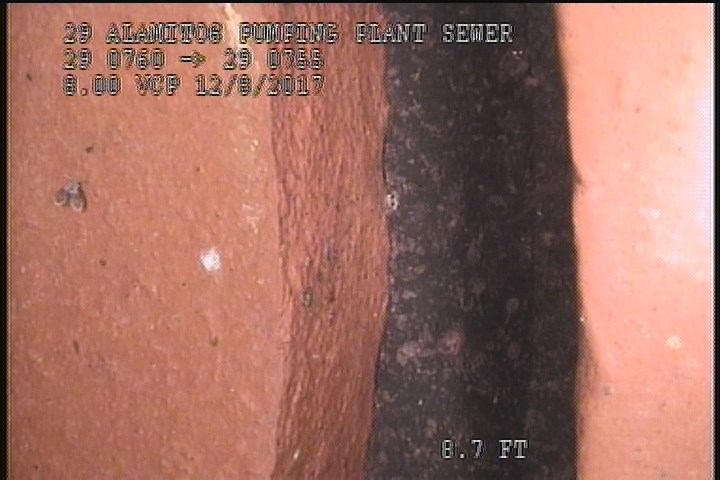

  • Joint Separated Medium - SEALED JOINT

    8.7 ft. - Joint Separated Medium - SEALED JOINT

All inspections of P24398Work order 0674132

Observations (16)

DistanceCodeObservation
8MGO8" VCP
16.2TFOpen
134.6AMH4:10AM
82TFActive
0MWLDRY LINE
11TFOpen
13.6TFOpen
7.2JSMSEALED
18.9TFOpen
0MWM—
134.1MGOConn. @ Mh, 3 O' Clock. Active
8TFActive
8.7JSMSEALED JOINT
134.1MGOConn. @ Mh, 9 O' Clock. Active
11MWL—
0AMH3:55AM

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-12-08T02:43:36-08:00
