Wastewater/Activity/PacpInspection/1.0Oct 27, 2017, 10:53 AM
C 0572C 0552District 03_10272017.mpg
- Date
- 10/27/2017
- W/O
- 668756
- Weather
- Dry
- Operator/Surveyor
- ERUIZ
- Sewer ID
- Z00362
- PipeID
- P04741
- Time
- 3:53 AM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5117
- Sewer Name
- C JOINT OUTFALL C - UNIT 4D
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_668756_TV03084_NOV2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 6 in.
- Width
- 6 in.
- Upstream MH
- C 0572
- Downstream MH
- C 0552
- Dir. of Survey
- Downstream
- Length Surveyed
- 11.4 ft.
- Total Length
- 11.4 ft.
- Structural Index
- 3
- Structural Quick
- 4131
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (4)

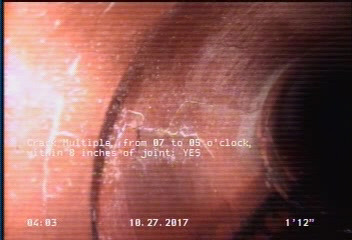

2 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

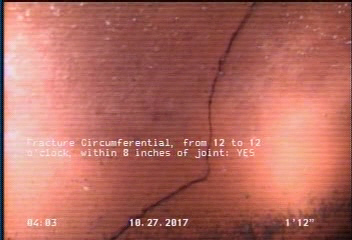

2 ft. - Fracture Circumferential, from 12 to 12 o'clock, within 8 inches of joint: YES

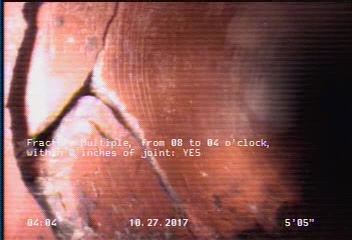

5.4 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

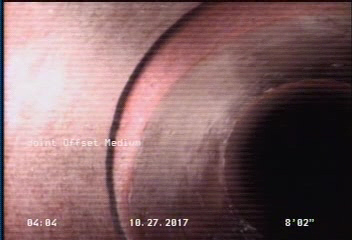

8.2 ft. - Joint Offset Medium
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2 | CM | — |
| 8.2 | JOM | — |
| 0 | MWL | — |
| 5.4 | FM | — |
| 0 | AMH | — |
| 11.4 | MSA | due to offset in line |
| 2 | FC | — |
Properties (3)
- custom_field_two
- CR 5
- customer
- LACSD
- datetime
- 2017-10-27T03:53:16-07:00
