Wastewater/Activity/PacpInspection/1.0Nov 15, 2017, 08:02 PM
H 0409_H 0408_11152017_124801.mp4
- Date
- 11/15/2017
- W/O
- 0673491
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00177
- PipeID
- P10843
- Time
- 12:02 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7558
- Sewer Name
- H JOINT OUTFALL H - UNIT 5A
- City
- WHITTIER
- Loc. details
- Woods
- Location Code
- E
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- 20171115SHO_JOINT_OUTFALL_H_UNIT_5A
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- H 0409
- Downstream MH
- H 0408
- Dir. of Survey
- Downstream
- Length Surveyed
- 297.7 ft.
- Total Length
- 297.7 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

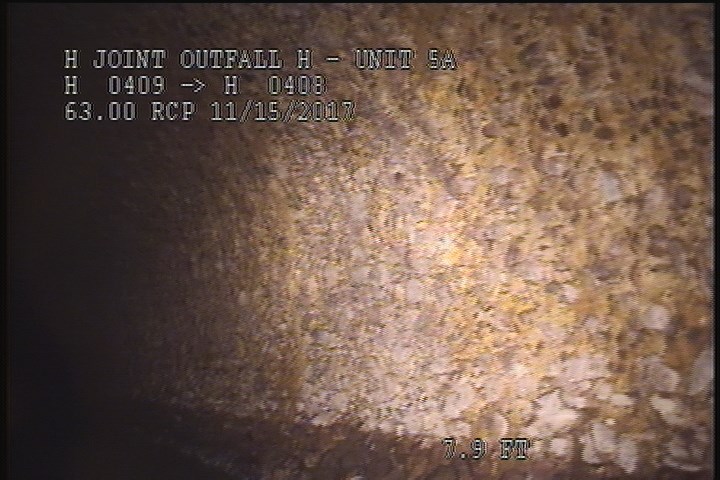

7.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

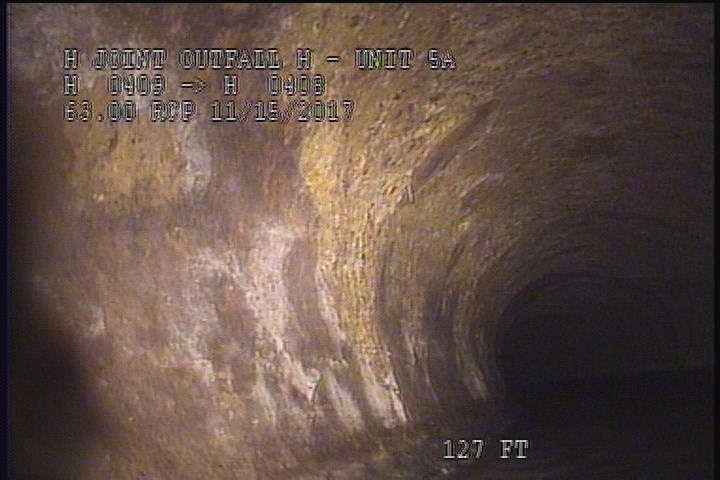

127 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 127 | SSS | — |
| 0 | AMH | 1245 |
| 297.7 | SSS | — |
| 7.9 | SAP | — |
| 0 | MWM | — |
| 297.7 | SAP | — |
| 297.7 | MSA | DUE TO FLOW |
Properties (4)
- custom_field_three
- FLOW NOT STRONG ENOUGH
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-11-15T12:02:28-08:00
