Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 27, 2017, 08:28 AM

  • 03 0415_03 0414 _27102017_005851.mpg

Date
10/27/2017
W/O
667646
Weather
Dry
Operator/Surveyor
ERUIZ
Sewer ID
Z00373
PipeID
P05177
Time
1:28 AM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5116
Sewer Name
03 MARINA TRUNK, SECTION 4
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
26
Purpose
Routine Assessment
Project
WO_668646_TV03100_NOV2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
03 0414
Downstream MH
03 0415
Dir. of Survey
Upstream
Length Surveyed
321.4 ft.
Total Length
321.4 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
2
O&M Quick
3223
O&M Rating
12
Overall Index
2
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole 03 0414 to 03 0415
MH: 03 0414MH: 03 0415upstream0 ft. AMH - Upstream Manhole, Survey Ends - 03 04150 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH0 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH2.5 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish37.3 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES61.7 ft. ID - Infiltration Dripper, at 01 o'clock, within 8 inches of joint: YES147.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"171.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"186.5 ft. ID - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: YES186.5 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES201.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish212.3 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start228.3 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish295.3 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start311.1 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start311.6 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES321.4 ft. MWL - Water Level, 25 %of cross sectional area321.4 ft. MWM - Water Mark, 30 %of cross sectional area321.4 ft. AMH - Downstream Manhole, Survey Begins - 03 0414

Observation photos (8)

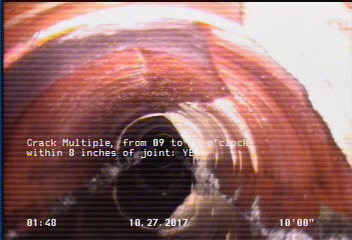

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    9.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

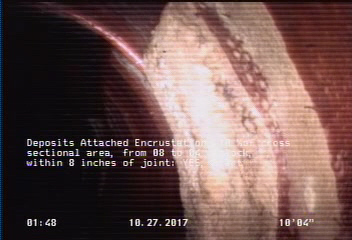

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    10.3 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

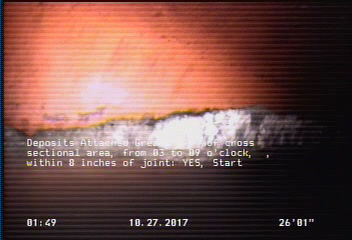

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    26.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

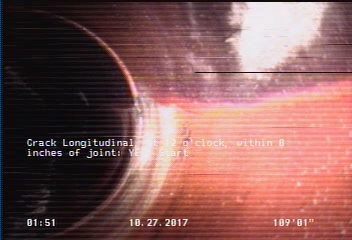

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    109.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

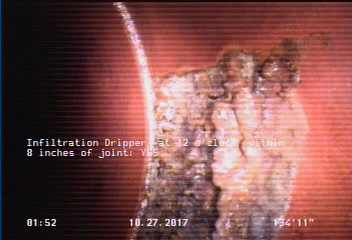

  • Infiltration Dripper, at 12 o'clock, within 8 inches of joint: YES

    134.9 ft. - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: YES

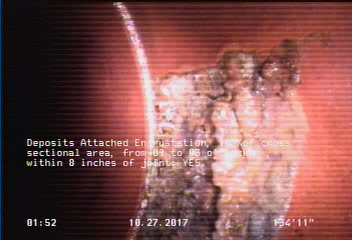

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES

    134.9 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES

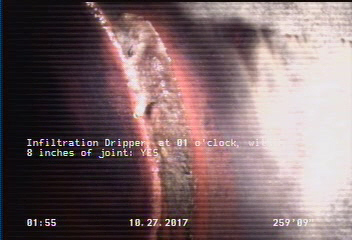

  • Infiltration Dripper, at 01 o'clock, within 8 inches of joint: YES

    259.7 ft. - Infiltration Dripper, at 01 o'clock, within 8 inches of joint: YES

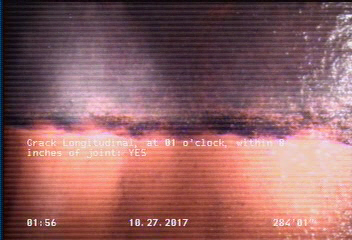

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    284.1 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

All inspections of P05177Work order 667646

Observations (19)

DistanceCodeObservation
284.1CL—
109.1CL—
0MWL—
134.9ID—
149.6TFC—
10.3DAE—
134.9DAE—
119.6CL—
259.7ID—
321.4AMH03 0415
0MWM—
173.7TFA—
318.9DAGS—
0AMH03 0414
9.8CM—
26.1DAGS—
321.4MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
93.1DAE—
321.4MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH

Properties (4)

custom_field_two
3
customer
LACSD
datetime
2017-10-27T01:28:52-07:00
sewer_category
Gravity
