Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 27, 2017, 06:00 AM

  • 03 0414_03 0413 _26102017_221715.mpg

Date
10/26/2017
W/O
667646
Weather
Dry
Operator/Surveyor
ERUIZ
Sewer ID
Z00373
PipeID
P05176
Time
11:00 PM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5116
Sewer Name
03 MARINA TRUNK, SECTION 4
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
26
Purpose
Routine Assessment
Project
WO_668646_TV03100_NOV2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
03 0414
Downstream MH
03 0413
Dir. of Survey
Downstream
Length Surveyed
300.5 ft.
Total Length
300.5 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 03 0414 to 03 0413
MH: 03 0414MH: 03 0413downstream0 ft. AMH - Upstream Manhole, Survey Begins - 03 04140 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area8 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 10 o'clock, , within 8 inches of joint: YES8 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start33 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Start149.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"193.4 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES248.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES258.3 ft. CM - Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES298.8 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Finish298.8 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish300.5 ft. AMH - Downstream Manhole, Survey Ends - 03 0413300.5 ft. MGO - General Observation - CAPPED CONNECTION AT 9 O' CLOCK AT

Observation photos (6)

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 10 o'clock, , within 8 inches of joint: YES

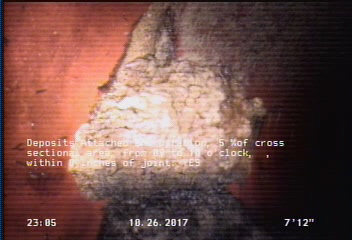

    8 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 10 o'clock, , within 8 inches of joint: YES

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

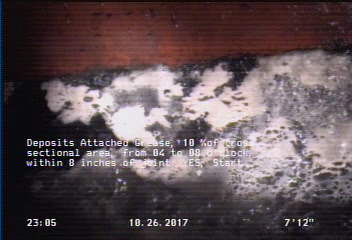

    8 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Start

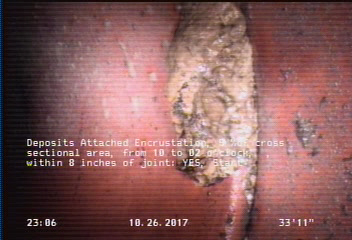

    33 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Start

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

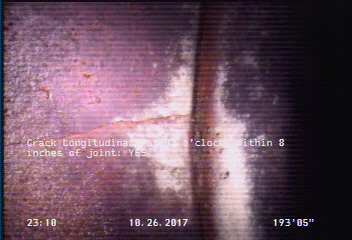

    193.4 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

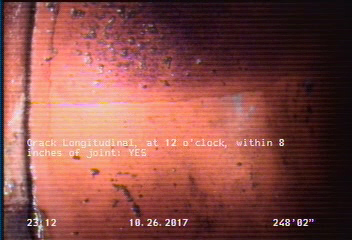

    248.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

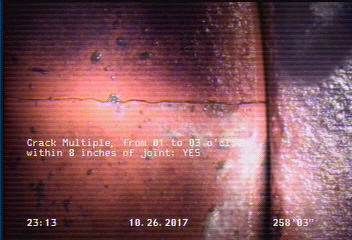

    258.3 ft. - Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

All inspections of P05176Work order 667646

Observations (14)

DistanceCodeObservation
248.1CL—
193.4CL—
8DAE—
300.5AMH03 0413
0AMH03 0414
298.8DAE—
0MWM—
0MWL—
149.4TF—
33DAE—
8DAGS—
298.8DAGS—
258.3CM—
300.5MGOCAPPED CONNECTION AT 9 O' CLOCK AT

Properties (4)

custom_field_two
3
customer
LACSD
datetime
2017-10-26T23:00:20-07:00
sewer_category
Gravity
