03 0412_03 0411 _26102017_234437.mpg
- Date
- 10/26/2017
- W/O
- 667646
- Weather
- Dry
- Operator/Surveyor
- ERUIZ
- Sewer ID
- Z00373
- PipeID
- P05174
- Time
- 11:38 PM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5116
- Sewer Name
- 03 MARINA TRUNK, SECTION 4
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_668646_TV03100_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 03 0412
- Downstream MH
- 03 0411
- Dir. of Survey
- Downstream
- Length Surveyed
- 299.2 ft.
- Total Length
- 299.2 ft.
- Structural Index
- 3
- Structural Quick
- 4738
- Structural Rating
- 58
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 66
Observation photos (19)
7.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

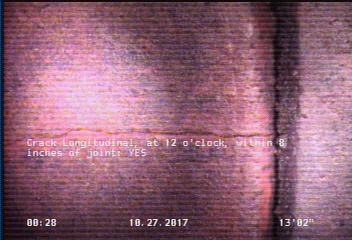

13.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

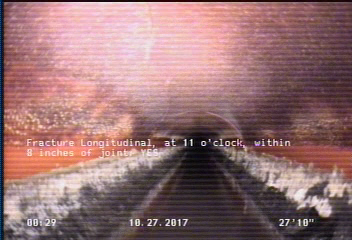

27.9 ft. - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES

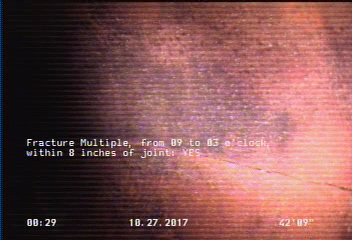

42.9 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

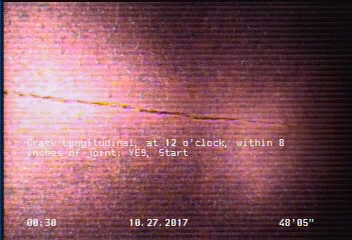

50.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

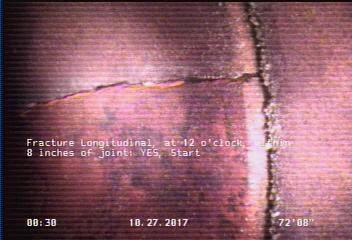

72.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

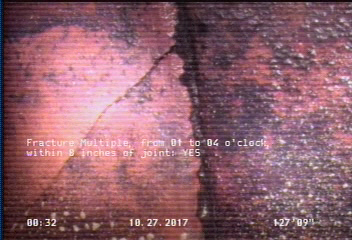

127.8 ft. - Fracture Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

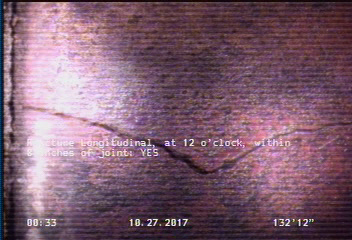

132.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

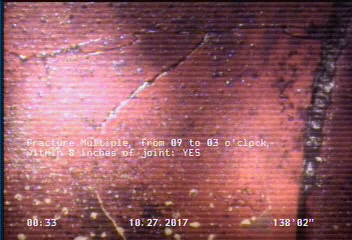

137.4 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

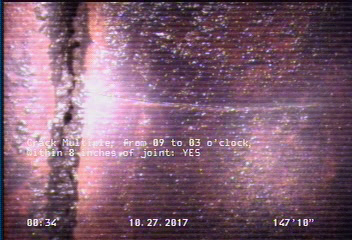

147.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
152.9 ft. - Fracture Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

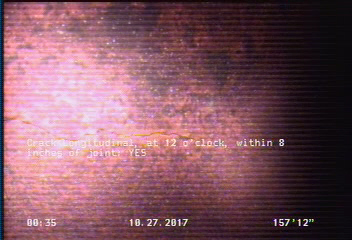

157.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

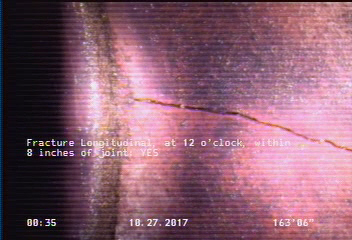

163.5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

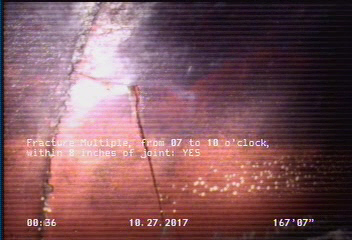

167.6 ft. - Fracture Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

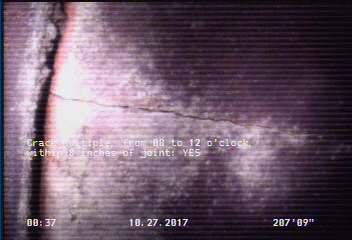

207.8 ft. - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

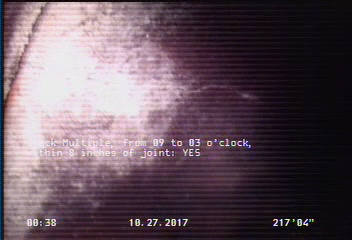

217.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

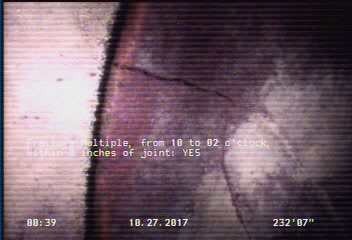

232.6 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
248.1 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

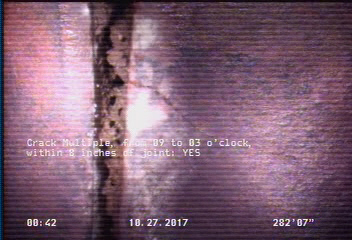

282.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (31)
| Distance | Code | Observation |
|---|---|---|
| 152.9 | FM | — |
| 0 | MWM | — |
| 163.5 | FL | — |
| 0 | MWL | — |
| 157.7 | CL | — |
| 0 | AMH | 03 0412 |
| 132.8 | FL | — |
| 248.1 | FM | — |
| 112.8 | FL | — |
| 147.6 | CM | — |
| 232.6 | FM | — |
| 7.1 | DSZ | UNKNOWN DEBRIS |
| 137.4 | FM | — |
| 296.8 | DAGS | — |
| 42.9 | FM | — |
| 207.8 | CM | — |
| 72.3 | FL | — |
| 299.2 | MGO | CAPPED CONNECTION AT 9 O' CLOCK AT |
| 50.9 | CL | — |
| 282.5 | CM | — |
| 13.2 | CL | — |
| 217.3 | CM | — |
| 167.6 | FM | — |
| 149.3 | TFC | — |
| 127.8 | FM | — |
| 296.8 | DSZ | — |
| 299.2 | AMH | 03 0411 |
| 27.9 | FL | — |
| 58.3 | CL | — |
| 0 | MGO | CAPPED CONNECTION AT 9 O' CLOCK AT |
| 7.1 | DAGS | — |
Properties (4)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-10-26T23:38:32-07:00
- sewer_category
- Gravity
