Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 27, 2017, 07:46 AM

  • 03 0411_03 0553 _26102017_235809.mpg

Date
10/27/2017
W/O
667646
Weather
Dry
Operator/Surveyor
ERUIZ
Sewer ID
Z00373
PipeID
P05173
Time
12:46 AM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5116
Sewer Name
03 MARINA TRUNK, SECTION 4
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
26
Purpose
Routine Assessment
Project
WO_668646_TV03100_NOV2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
03 0411
Downstream MH
03 0553
Dir. of Survey
Downstream
Length Surveyed
197.4 ft.
Total Length
197.4 ft.
Structural Index
4
Structural Quick
4421
Structural Rating
18
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 03 0411 to 03 0553
MH: 03 0411MH: 03 0553downstream0 ft. AMH - Upstream Manhole, Survey Begins - 03 04110 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. MGO - General Observation - CAPPED CONNECTION AT 9 O' CLOCK AT5.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start38 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES49.8 ft. FM - Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES74.9 ft. FM - Fracture Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES79.7 ft. FM - Fracture Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES104.5 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start150.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"195.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish195.4 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish197.4 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH197.4 ft. AMH - Downstream Manhole, Survey Ends - 03 0553

Observation photos (6)

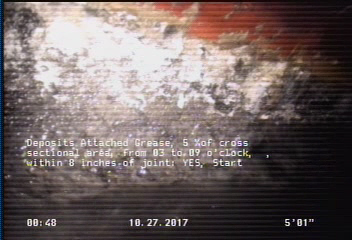

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    5.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

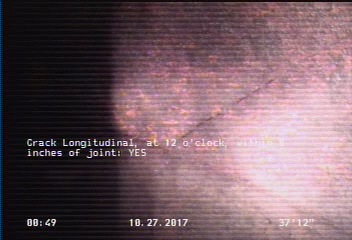

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    38 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

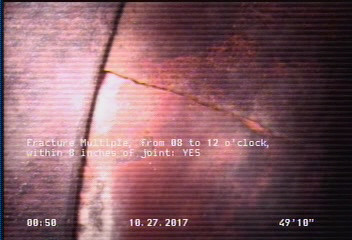

  • Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

    49.8 ft. - Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

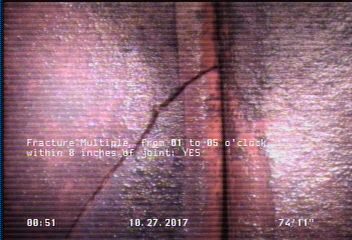

  • Fracture Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

    74.9 ft. - Fracture Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

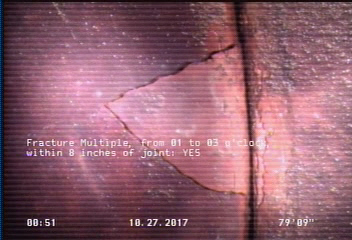

  • Fracture Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

    79.7 ft. - Fracture Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

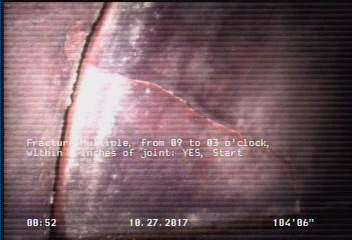

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    104.5 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P05173Work order 667646

Observations (15)

DistanceCodeObservation
195.4DAGS—
197.4MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
0AMH03 0411
197.4AMH03 0553
150.2TFC—
5.1DAGS—
0MWL—
38CL—
49.8FM—
104.5FM—
0MWM—
79.7FM—
74.9FM—
0MGOCAPPED CONNECTION AT 9 O' CLOCK AT
195.4FM—

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2017-10-27T00:46:57-07:00
sewer_category
Gravity
year_laid
31161
