Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 31, 2017, 06:26 AM

  • 22 0767_22 0766 _30102017_232740.mp4

Date
10/30/2017
W/O
668640
Weather
Light Rain
Operator/Surveyor
K. ADAME
Sewer ID
Z00821
PipeID
P17126
Time
11:26 PM
Certificate
07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4833
Sewer Name
22 PUDDINGSTONE TRUNK, SECTS 1&2
City
LA VERNE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
23
Purpose
Routine Assessment
Project
WO_668640_TV22056_NOV2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0767
Downstream MH
22 0766
Dir. of Survey
Downstream
Length Surveyed
223.7 ft.
Total Length
223.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2B00
O&M Rating
32
Overall Index
2
Overall Quick
—
Overall Rating
32
Pipe schematic from manhole 22 0767 to 22 0766
MH: 22 0767MH: 22 0766downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 076711.5 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"16.9 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 4"35 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"64.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4"76.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"105.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4"116.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"142.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start164.7 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"169.7 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"222.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish223.7 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK223.7 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK223.7 ft. AMH - Downstream Manhole, Survey Ends - 22 0766

Observation photos (1)

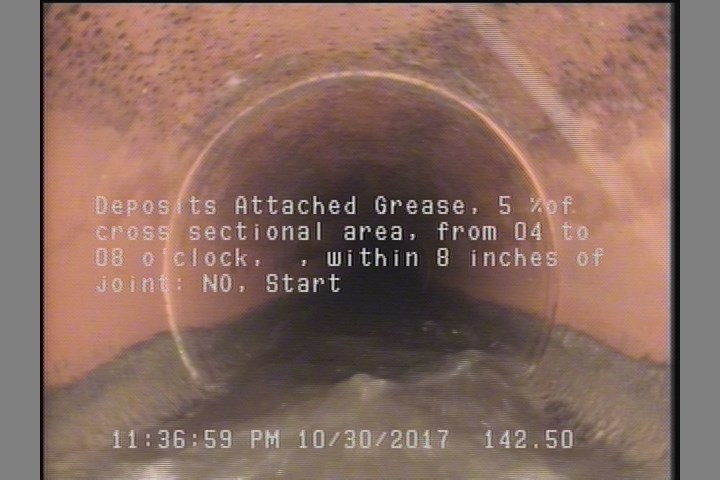

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

    142.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

All inspections of P17126Work order 668640

Observations (17)

DistanceCodeObservation
222.3DAGS—
16.9TB—
0MWM—
11.5TFC—
223.7MGOCONNECTION AT MH 9 O'CLOCK
0MWL—
76.1TFC—
116.9TFC—
105.6TF—
164.7TFC—
223.7MGOCONNECTION AT MH 3 O'CLOCK
64.7TF—
142.5DAGS—
169.7TFC—
35TFC—
223.7AMH22 0766
0AMH22 0767

Properties (5)

additional_info
SC353095
custom_field_two
4
customer
LACSD
datetime
2017-10-30T23:26:16-07:00
sewer_category
Gravity
