Wastewater/Activity/PacpInspection/1.0Oct 23, 2017, 09:17 AM
H 1339_H 1338 _23102017_021759.mp4
- Date
- 10/23/2017
- W/O
- 669089
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01184
- PipeID
- P25882
- Time
- 2:17 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5034
- Sewer Name
- H JOINT OUTFALL H - UNIT 8L RELIEF
- City
- AZUSA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_669089_TV22099_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- H 1339
- Downstream MH
- H 1338
- Dir. of Survey
- Downstream
- Length Surveyed
- 215.2 ft.
- Total Length
- 215.2 ft.
- Structural Index
- 2
- Structural Quick
- 2B00
- Structural Rating
- 26
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 28
Observation photos (2)

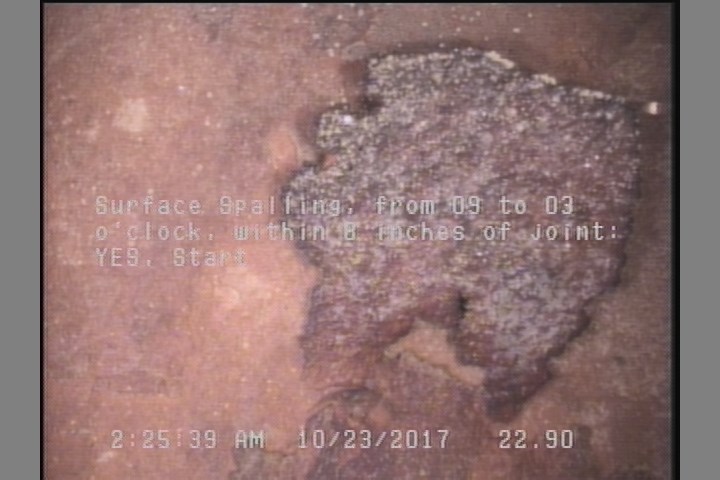

22.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

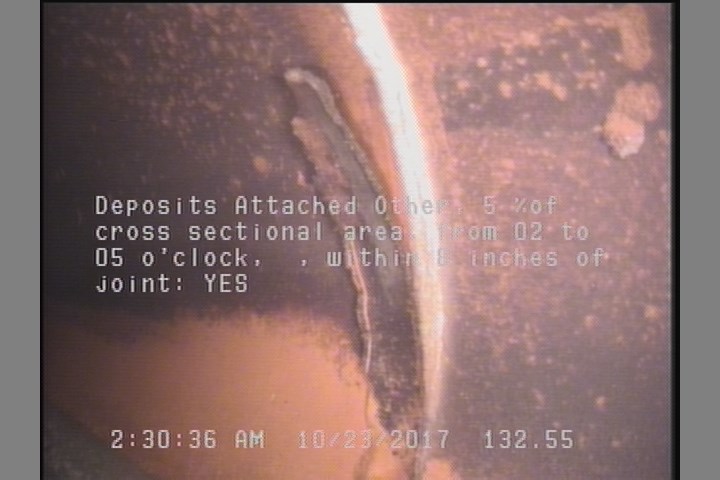

132.6 ft. - Deposits Attached Other, 5 %of cross sectional area, from 02 to 05 o'clock, , within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | H 1339 |
| 132.6 | DAZ | — |
| 0 | MWL | — |
| 22.9 | SSS | — |
| 88.4 | SSS | — |
| 215.2 | AMH | H 1338 |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 6 O'CLOCK |
Properties (6)
- additional_info
- SC346197
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-23T02:17:53-07:00
- sewer_category
- Gravity
- year_laid
- 39562
