Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 27, 2017, 04:27 AM

  • 01 0779_G 0154_26102017_214615.mpg

Date
10/26/2017
W/O
668769
Weather
Dry
Operator/Surveyor
ERUIZ
Sewer ID
Z00892
PipeID
P01478
Time
9:27 PM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5115
Sewer Name
01 BULLIS ROAD TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
WO_668769_TV01203_NOV2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0779
Downstream MH
G 0154
Dir. of Survey
Downstream
Length Surveyed
183.6 ft.
Total Length
183.6 ft.
Structural Index
4
Structural Quick
4E37
Structural Rating
133
O&M Index
2
O&M Quick
2C00
O&M Rating
40
Overall Index
3
Overall Quick
—
Overall Rating
173
Pipe schematic from manhole 01 0779 to G 0154
MH: 01 0779MH: G 0154downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 07790 ft. MWM - Water Mark, 15 %of cross sectional area4.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start10.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish10.6 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start15.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"17.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"63.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"65.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"81.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start95.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish95.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"95.7 ft. B - Broken, at 12 o'clock, within 8 inches of joint: YES, Start116.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"126.4 ft. B - Broken, at 12 o'clock, within 8 inches of joint: YES, Finish126.4 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start143.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"147 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"164.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"183.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish183.6 ft. AMH - Downstream Manhole, Survey Ends - G 0154183.6 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    4.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

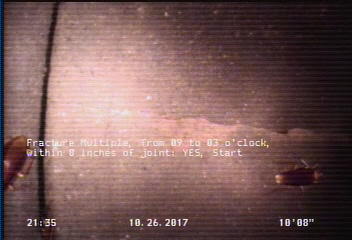

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    10.6 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

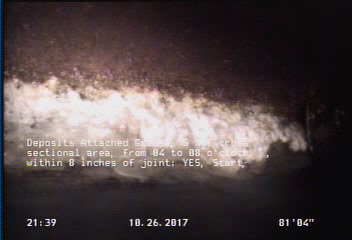

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    81.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

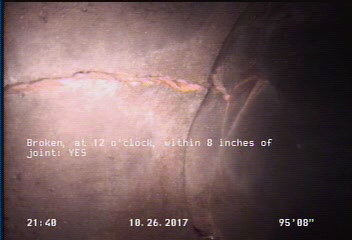

  • Broken, at 12 o'clock, within 8 inches of joint: YES, Start

    95.7 ft. - Broken, at 12 o'clock, within 8 inches of joint: YES, Start

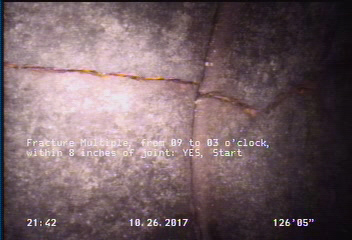

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    126.4 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P01478Work order 668769

Observations (23)

DistanceCodeObservation
183.6DAGS—
65.9TFC—
126.4B—
81.3DAGS—
95.7FM—
147TFA—
143.4TFC—
0MWL—
0AMH01 0779
10.6FL—
183.6AMHG 0154
4.9FL—
183.6FM—
15.2TFC—
116.5TFC—
95.7TF—
17.8TFC—
126.4FM—
95.7B—
164.1TFC—
10.6FM—
0MWM—
63.4TFC—

Properties (4)

custom_field_two
CR 1
customer
LACSD
datetime
2017-10-26T21:27:52-07:00
sewer_category
Gravity
