Wastewater/Activity/PacpInspection/1.0Oct 24, 2017, 07:31 AM
02 1348_02 1347_24102017_010356.mp4
- Date
- 10/24/2017
- W/O
- 668762
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00277
- PipeID
- P04622
- Time
- 12:31 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5000
- Sewer Name
- 02 JANE STREET BRANCH TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_668762_TV02342_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 1348
- Downstream MH
- 02 1347
- Dir. of Survey
- Downstream
- Length Surveyed
- 329.6 ft.
- Total Length
- 329.6 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

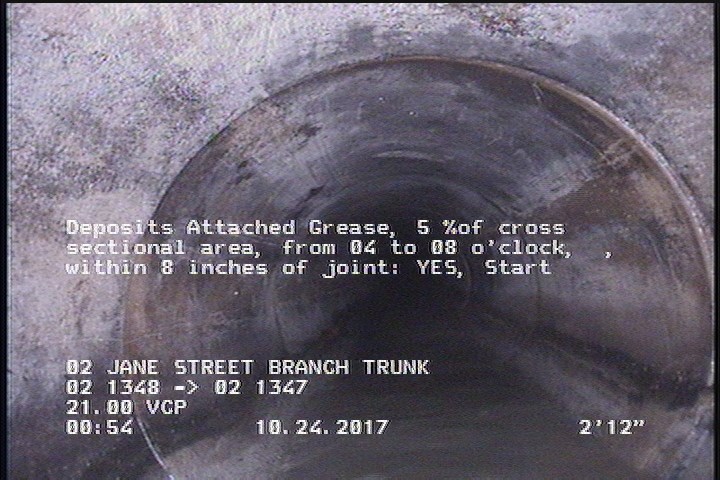

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

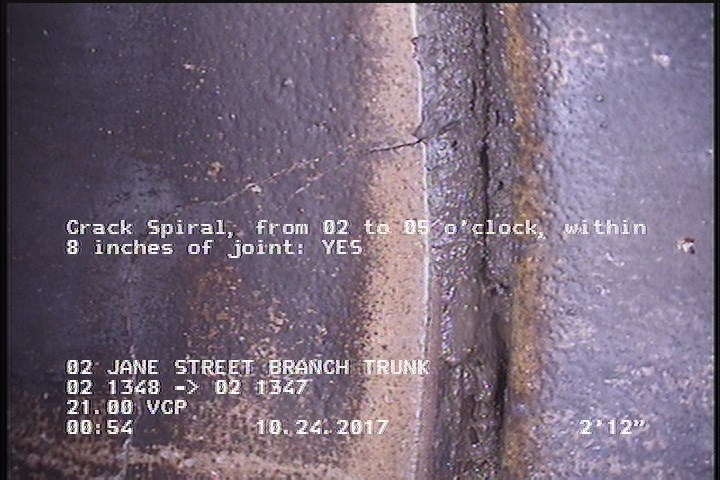

3 ft. - Crack Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES

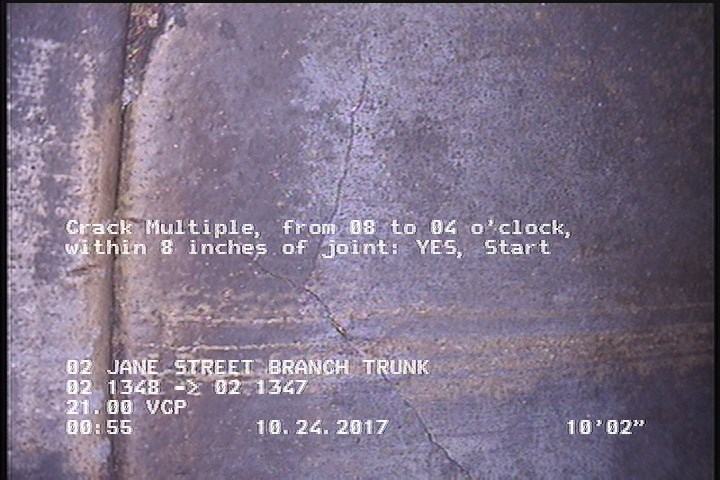

10.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 329.6 | DAGS | — |
| 10.2 | CM | — |
| 0 | AMH | 02 1348 |
| 329.6 | AMH | 02 1347 |
| 329.6 | MGO | CONNECTION AT 9 OC |
| 329.6 | MGO | CAPPED CONNECTION AT 3 OC |
| 3 | DAGS | — |
| 329.6 | CM | — |
| 3 | CS | — |
Properties (5)
- additional_info
- SC350354
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-24T00:31:23-07:00
- sewer_category
- Gravity
