Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 2, 2017, 05:09 AM

  • 18 0597_18 0596 __01112017_221033.mp4

Date
11/01/2017
W/O
668742
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00688
PipeID
P14446
Time
10:09 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5164
Sewer Name
18 MARQUARDT AVENUE TRUNK
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
38
Purpose
Routine Assessment
Project
WO_668742_TV18028_NOV2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
18 0597
Downstream MH
18 0596
Dir. of Survey
Downstream
Length Surveyed
400.5 ft.
Total Length
400.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2400
O&M Rating
8
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 18 0597 to 18 0596
MH: 18 0597MH: 18 0596downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 05972 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start56.4 ft. TBC - Tap Break-In Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"179.6 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"181.2 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"272 ft. TBC - Tap Break-In Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"390.5 ft. TBC - Tap Break-In Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"398.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish400.5 ft. AMH - Downstream Manhole, Survey Ends - 18 0596

Observation photos (1)

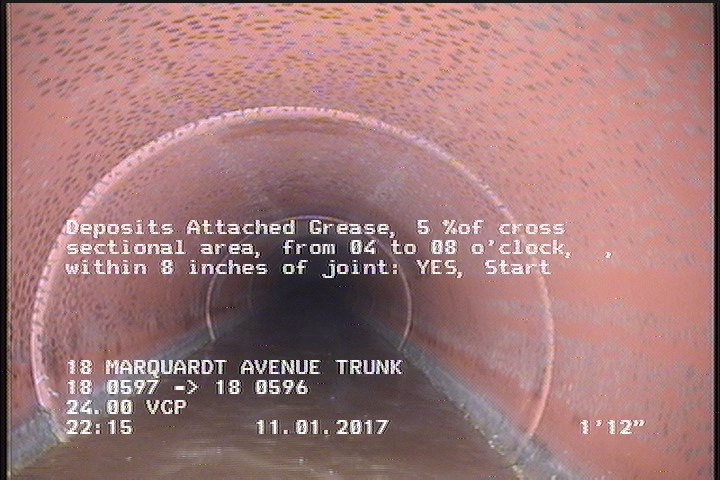

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P14446Work order 668742

Observations (11)

DistanceCodeObservation
0MWM—
179.6TB—
2DAGS—
390.5TBC—
272TBC—
56.4TBC—
181.2TBA—
0MWL—
0AMH18 0597
398.8DAGS—
400.5AMH18 0596

Properties (5)

additional_info
SC350364
custom_field_two
4
customer
LACSD
datetime
2017-11-01T22:09:31-07:00
sewer_category
Gravity
