Wastewater/Activity/PacpInspection/1.0Nov 2, 2017, 05:26 AM
18 0596_18 0595 __01112017_222640.mp4
- Date
- 11/01/2017
- W/O
- 668742
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00688
- PipeID
- P14445
- Time
- 10:26 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5164
- Sewer Name
- 18 MARQUARDT AVENUE TRUNK
- City
- CERRITOS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- WO_668742_TV18028_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 18 0596
- Downstream MH
- 18 0595
- Dir. of Survey
- Downstream
- Length Surveyed
- 397.9 ft.
- Total Length
- 397.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2400
- O&M Rating
- 8
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

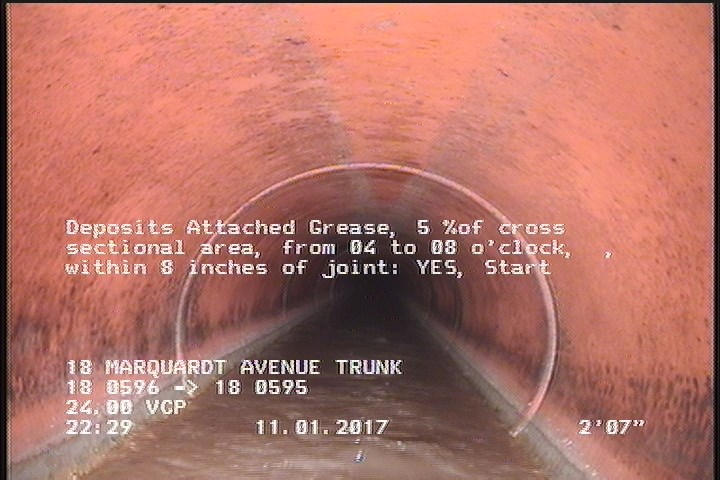

2.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

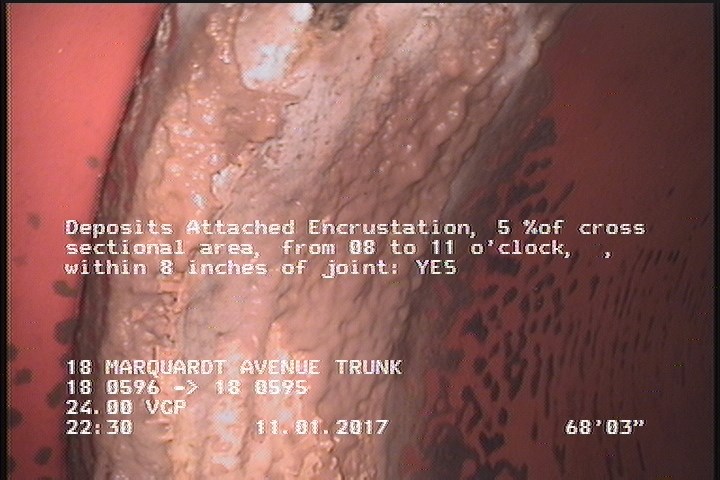

68.2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 11 o'clock, , within 8 inches of joint: YES

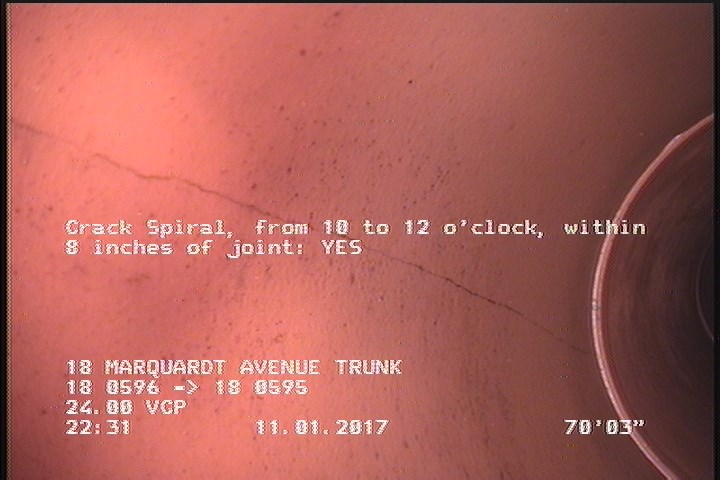

70.2 ft. - Crack Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 69.8 | TB | — |
| 229.4 | TBC | — |
| 396.6 | DAGS | — |
| 224.3 | TBC | — |
| 0 | MWL | — |
| 2.6 | DAGS | — |
| 327 | TB | — |
| 68.2 | DAE | — |
| 70.2 | CS | — |
| 156.9 | TB | — |
| 0 | MWM | — |
| 0 | AMH | 18 0596 |
| 321.8 | TB | — |
| 397.9 | AMH | 18 0595 |
Properties (5)
- additional_info
- SC350364
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-11-01T22:26:18-07:00
- sewer_category
- Gravity
