Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 31, 2017, 09:58 AM

  • 18 0608_18 0607 __31102017_025912.mp4

Date
10/31/2017
W/O
668742
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00688
PipeID
P14458
Time
2:58 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5162
Sewer Name
18 MARQUARDT AVENUE TRUNK
City
SANTA FE SPRINGS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
35
Purpose
Routine Assessment
Project
WO_668742_TV18028_NOV2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
18 0607
Downstream MH
18 0608
Dir. of Survey
Upstream
Length Surveyed
179.2 ft.
Total Length
179.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 18 0607 to 18 0608
MH: 18 0607MH: 18 0608upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 06081.8 ft. DSC - Deposits Settled Compacted, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish1.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish9 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"108.2 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"156.7 ft. DSC - Deposits Settled Compacted, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start176.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start179.2 ft. MWM - Water Mark, 40 %of cross sectional area179.2 ft. AMH - Downstream Manhole, Survey Begins - 18 0607179.2 ft. MWL - Water Level, 30 %of cross sectional area

Observation photos (1)

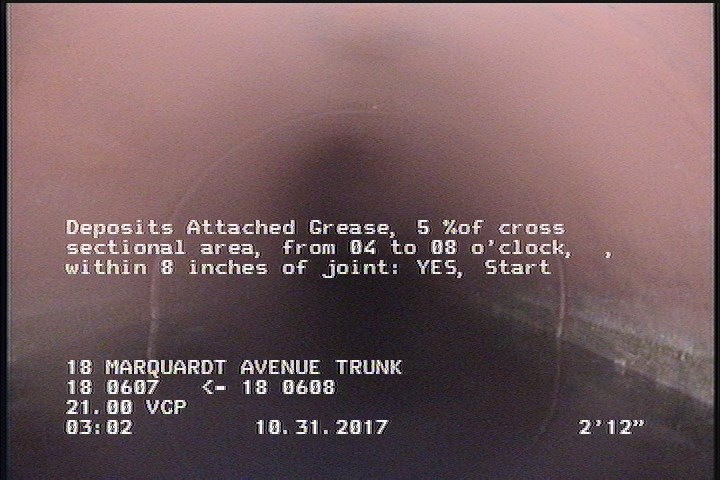

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P14458Work order 668742

Observations (10)

DistanceCodeObservation
0MWM—
22.5DSC—
177.4DSC—
0AMH18 0607
3DAGS—
71TB—
177.4DAGS—
179.2AMH18 0608
0MWL—
170.2TB—

Properties (5)

additional_info
SC350362
custom_field_two
4
customer
LACSD
datetime
2017-10-31T02:58:32-07:00
sewer_category
Gravity
