Wastewater/Activity/PacpInspection/1.0Oct 31, 2017, 07:00 AM
18 1254_18 0612 __31102017_000038.mp4
- Date
- 10/31/2017
- W/O
- 668742
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00688
- PipeID
- P26362
- Time
- 12:00 AM
- Certificate
- U-715-070007770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5162
- Sewer Name
- 18 MARQUARDT AVENUE TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_668742_TV18028_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 1254
- Downstream MH
- 18 0612
- Dir. of Survey
- Downstream
- Length Surveyed
- 31.6 ft.
- Total Length
- 31.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

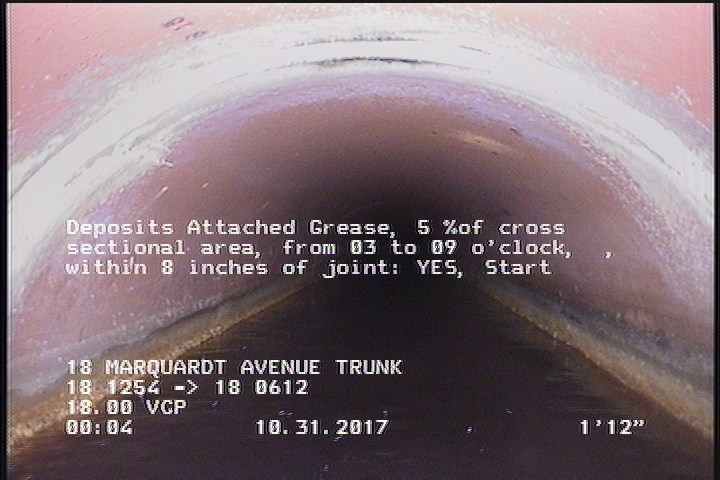

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

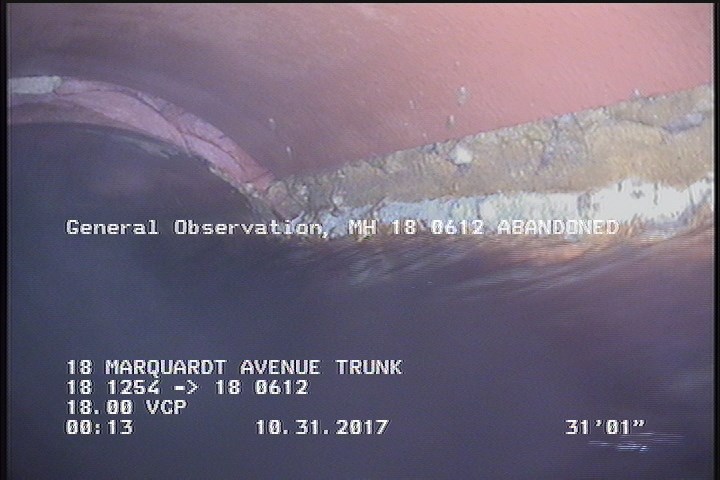

31.1 ft. - General Observation - MH 18 0612 ABANDONED
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 30.2 | DSZ | DEBRIS |
| 30.2 | DAGS | — |
| 0 | AMH | 18 1254 |
| 31.1 | MGO | MH 18 0612 ABANDONED |
| 23.9 | DSZ | DEBRIS |
| 2 | DAGS | — |
| 31.6 | AMH | 18 0612 |
Properties (6)
- additional_info
- SC350362
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-10-31T00:00:05-07:00
- sewer_category
- Gravity
- year_laid
- 41400
