Wastewater/Activity/PacpInspection/1.0Nov 2, 2017, 07:33 AM
18 1255_18 1254 __31102017_004759.mp4
- Date
- 11/02/2017
- W/O
- 668742
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00688
- PipeID
- P26363
- Time
- 12:33 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5164
- Sewer Name
- 18 MARQUARDT AVENUE TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_668742_TV18028_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 1255
- Downstream MH
- 18 1254
- Dir. of Survey
- Downstream
- Length Surveyed
- 158.9 ft.
- Total Length
- 158.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4123
- O&M Rating
- 10
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (2)

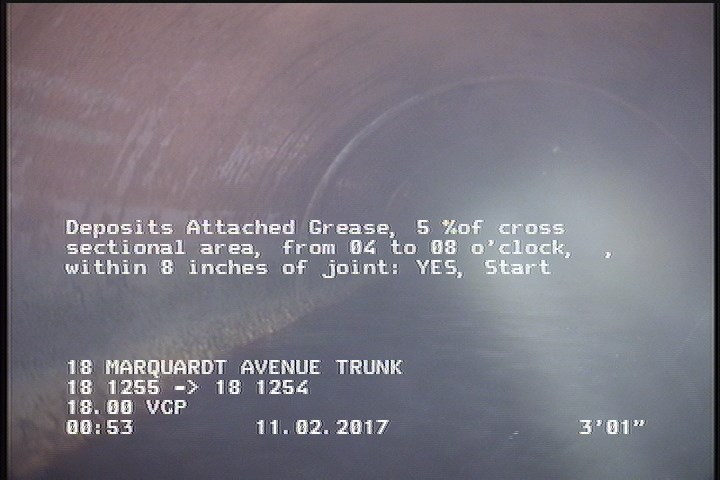

3.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

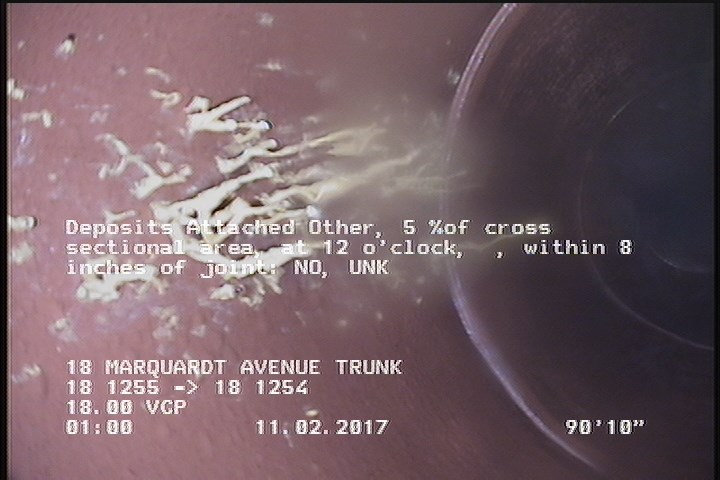

90.8 ft. - Deposits Attached Other, 5 %of cross sectional area, at 12 o'clock, , within 8 inches of joint: NO - UNK
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 104 | DSC | — |
| 158.6 | DSC | — |
| 158.6 | MGO | CONNECTION AT 9 OC |
| 3.1 | DAGS | — |
| 158.9 | AMH | 18 1254 |
| 90.8 | DAZ | UNK |
| 0 | AMH | 18 1255 |
| 158.6 | DAGS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC350364
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-11-02T00:33:41-07:00
- sewer_category
- Gravity
- year_laid
- 41400
