Wastewater/Activity/PacpInspection/1.0Oct 31, 2017, 10:20 AM
18 0607_18 0606 __31102017_032241.mp4
- Date
- 10/31/2017
- W/O
- 668742
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00688
- PipeID
- P14457
- Time
- 3:20 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5162
- Sewer Name
- 18 MARQUARDT AVENUE TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_668742_TV18028_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 18 0607
- Downstream MH
- 18 0606
- Dir. of Survey
- Downstream
- Length Surveyed
- 271.6 ft.
- Total Length
- 271.6 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 3
- O&M Quick
- 4223
- O&M Rating
- 14
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 18
Observation photos (4)

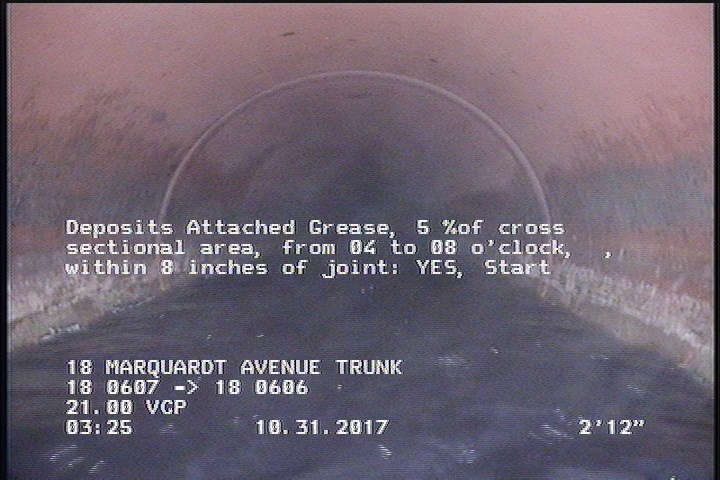

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

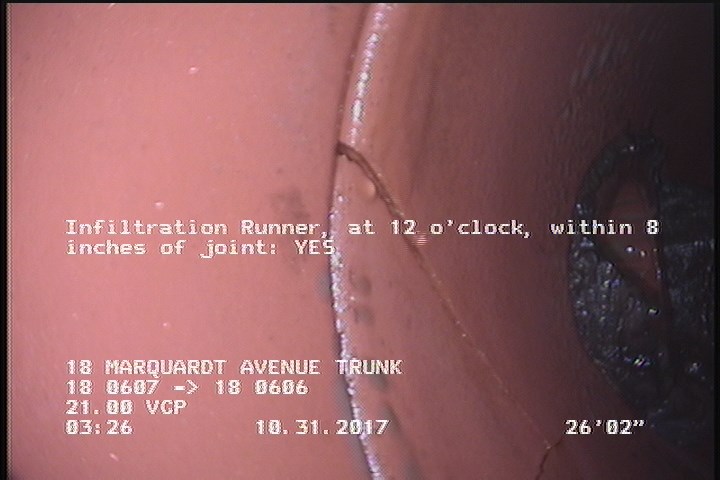

26.1 ft. - Infiltration Runner, at 12 o'clock, within 8 inches of joint: YES

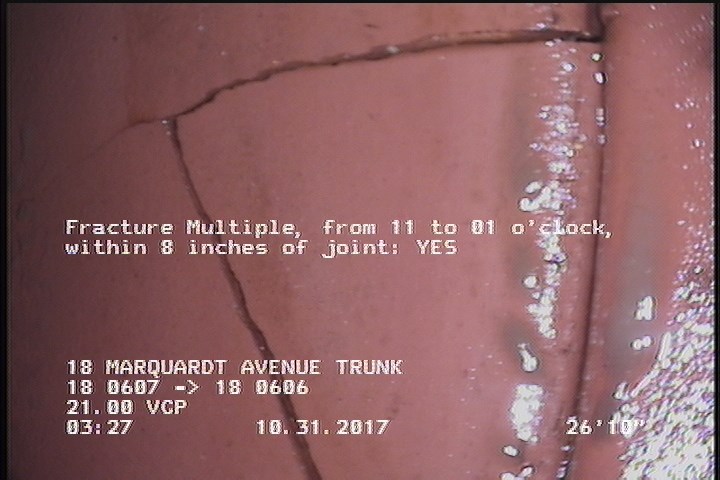

26.8 ft. - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

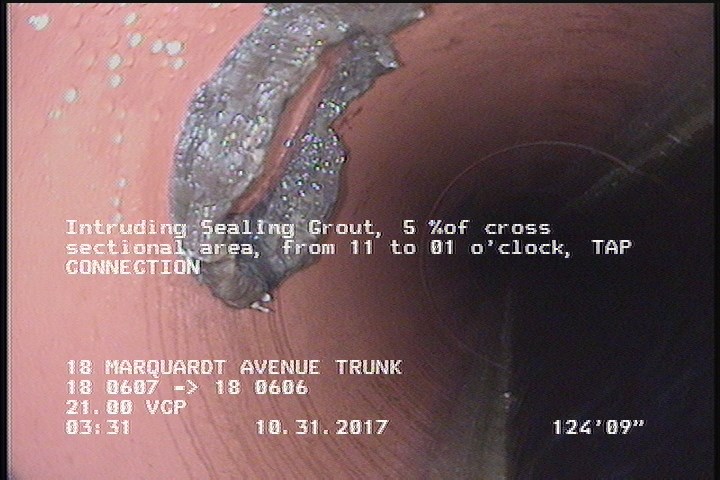

124.7 ft. - Intruding Sealing Grout, 5 %of cross sectional area, from 11 to 01 o'clock - TAP CONNECTION
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 3 | DAGS | — |
| 0 | MGO | CONNECTION AT 3 OC |
| 271.6 | AMH | 18 0606 |
| 26.8 | FM | — |
| 0 | MWL | — |
| 28 | TBC | — |
| 124.7 | ISGT | TAP CONNECTION |
| 126.5 | TB | — |
| 26.1 | IR | — |
| 224.5 | TB | — |
| 0 | MWM | — |
| 269.6 | DAGS | — |
| 0 | AMH | 18 0607 |
Properties (5)
- additional_info
- SC350362
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-31T03:20:31-07:00
- sewer_category
- Gravity
