Wastewater/Activity/PacpInspection/1.0Nov 1, 2017, 06:54 AM
18 0605_18 0604 __01112017_013346.mp4
- Date
- 10/31/2017
- W/O
- 668742
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00688
- PipeID
- P14455
- Time
- 11:54 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5163
- Sewer Name
- 18 MARQUARDT AVENUE TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_668742_TV18028_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 18 0604
- Downstream MH
- 18 0605
- Dir. of Survey
- Upstream
- Length Surveyed
- 398.3 ft.
- Total Length
- 398.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2400
- O&M Rating
- 8
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

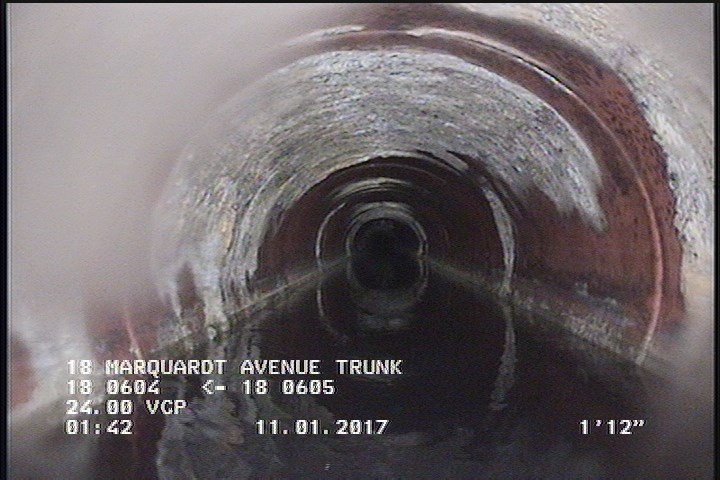

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

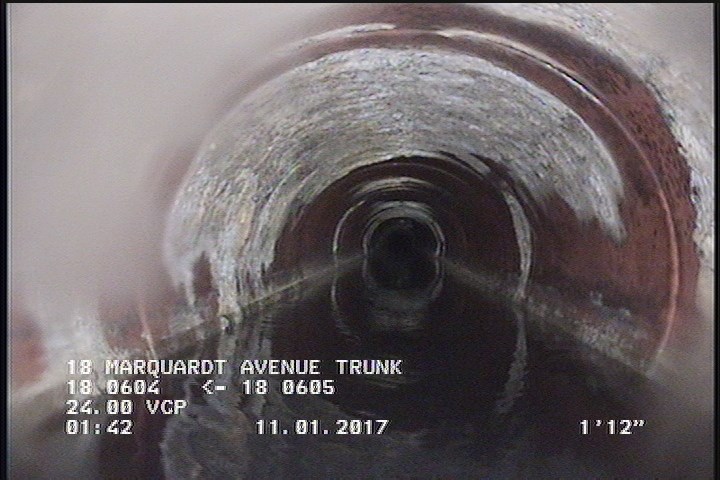

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

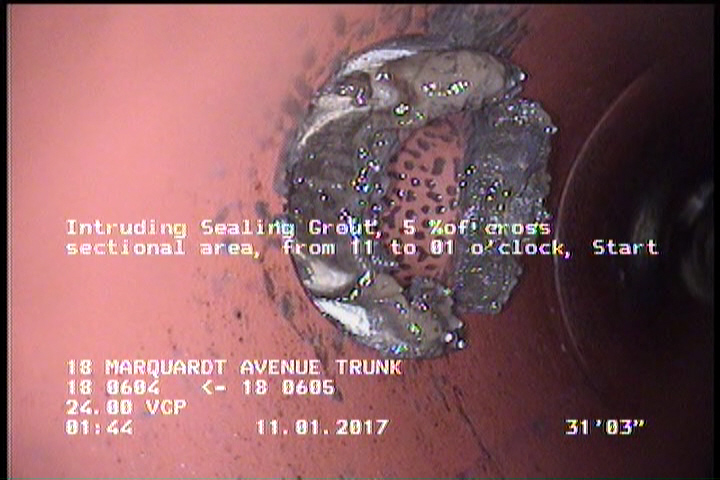

31 ft. - Intruding Sealing Grout, 5 %of cross sectional area, from 11 to 01 o'clock
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 398.3 | AMH | 18 0605 |
| 0 | MWL | — |
| 396.8 | DSC | — |
| 341.4 | TB | — |
| 31 | ISGT | — |
| 235.1 | TB | — |
| 2 | DAE | — |
| 75.7 | DSC | — |
| 396.8 | DAGS | — |
| 2 | DAGS | — |
| 0 | AMH | 18 0604 |
| 396.8 | DAE | — |
| 0 | MWM | — |
| 33.1 | TB | — |
| 137.1 | TB | — |
Properties (5)
- additional_info
- SC350363
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-10-31T23:54:55-07:00
- sewer_category
- Gravity
