Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 31, 2017, 07:14 AM

  • 18 0612_18 0611 __31102017_001532.mp4

Date
10/31/2017
W/O
668742
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00688
PipeID
P14462
Time
12:14 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5162
Sewer Name
18 MARQUARDT AVENUE TRUNK
City
SANTA FE SPRINGS
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
35
Purpose
Routine Assessment
Project
WO_668742_TV18028_NOV2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0612
Downstream MH
18 0611
Dir. of Survey
Downstream
Length Surveyed
154.3 ft.
Total Length
154.3 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 18 0612 to 18 0611
MH: 18 0612MH: 18 0611downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - ABANDONED MH0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 06123.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start7.3 ft. DSC - Deposits Settled Compacted, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start11.1 ft. CS - Crack Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES140 ft. MWL - Water Level, 15 %of cross sectional area153.3 ft. DSC - Deposits Settled Compacted, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish153.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish154.3 ft. MGO - General Observation - MH 18 0611 ABANDONED154.3 ft. AMH - Downstream Manhole, Survey Ends - 18 0611

Observation photos (4)

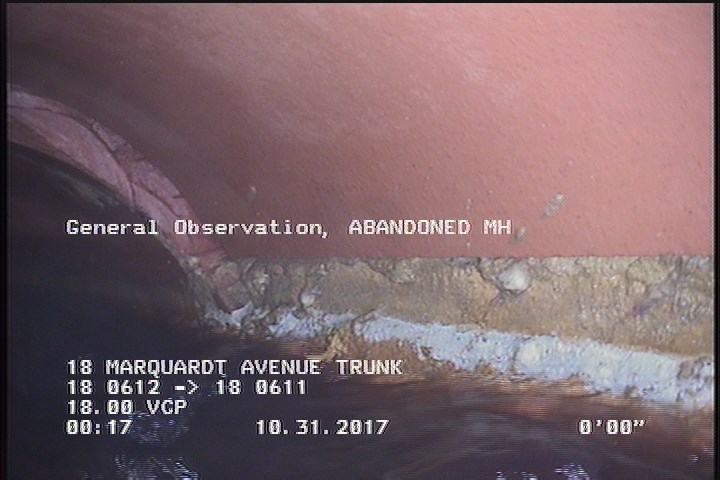

  • General Observation - ABANDONED MH

    0 ft. - General Observation - ABANDONED MH

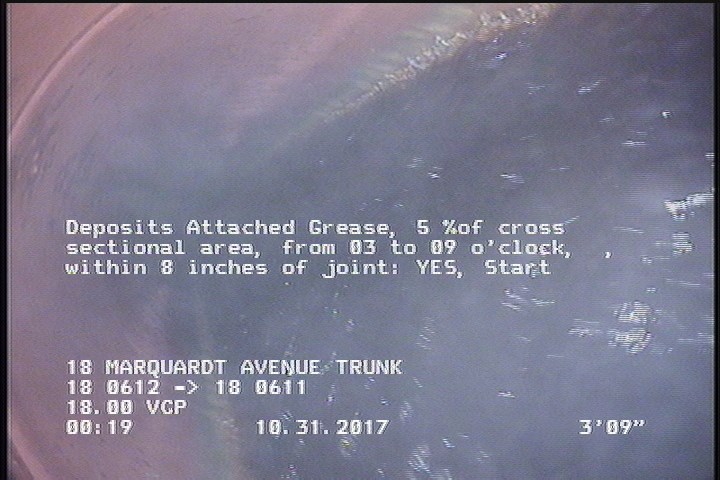

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    3.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

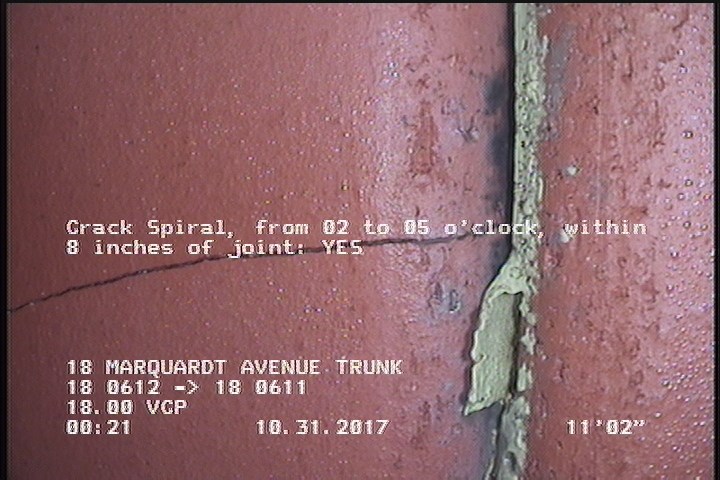

  • Crack Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES

    11.1 ft. - Crack Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES

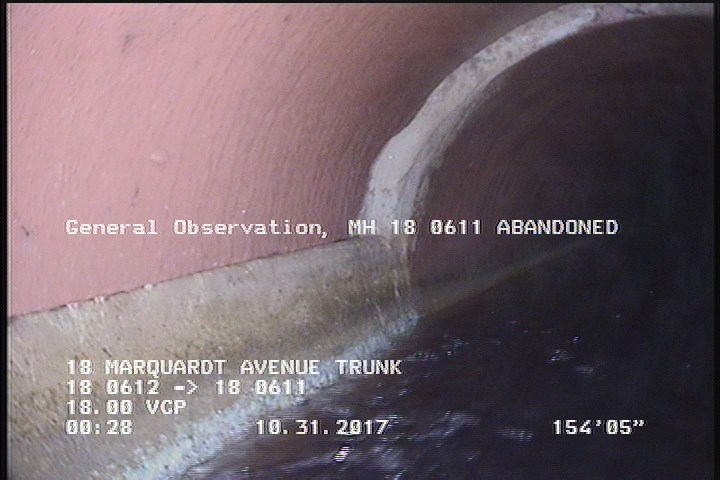

  • General Observation - MH 18 0611 ABANDONED

    154.3 ft. - General Observation - MH 18 0611 ABANDONED

All inspections of P14462Work order 668742

Observations (12)

DistanceCodeObservation
3.7DAGS—
153.3DSC—
153.3DAGS—
11.1CS—
0MWM—
0MGOABANDONED MH
7.3DSC—
0MWL—
154.3MGOMH 18 0611 ABANDONED
0AMH18 0612
140MWL—
154.3AMH18 0611

Properties (6)

additional_info
SC350362
custom_field_two
4
customer
LACSD
datetime
2017-10-31T00:14:58-07:00
sewer_category
Gravity
year_laid
41400
