Wastewater/Activity/PacpInspection/1.0Oct 25, 2017, 07:13 AM
A 0911_A 0910 _25102017_002058.mp4
- Date
- 10/25/2017
- W/O
- 668607
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00318
- PipeID
- P08005
- Time
- 12:13 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5003
- Sewer Name
- A JOA-1A FLORENCE AVENUE INTERCEPTOR
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_668607_TV18150_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- A 0911
- Downstream MH
- A 0910
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

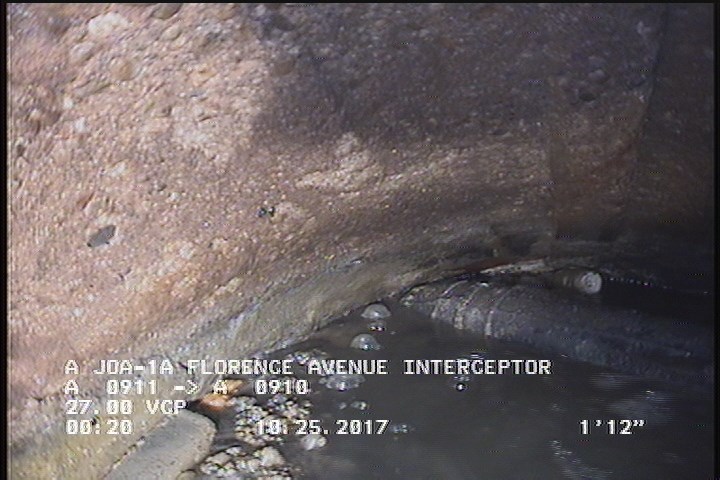

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

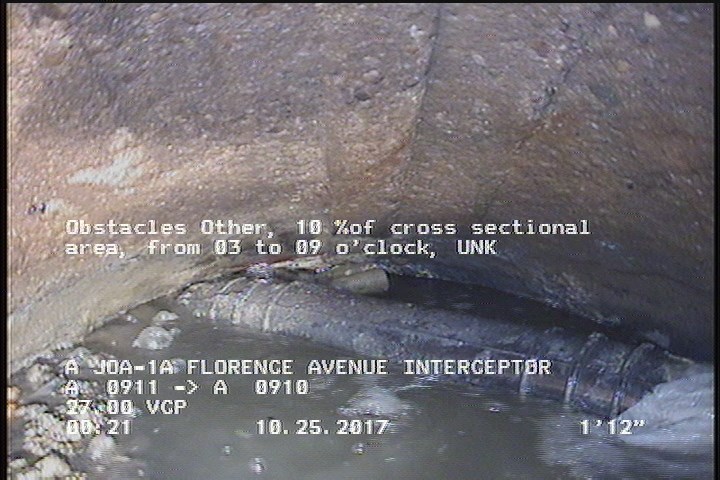

2 ft. - Obstacles Other, 10 %of cross sectional area, from 03 to 09 o'clock - UNK

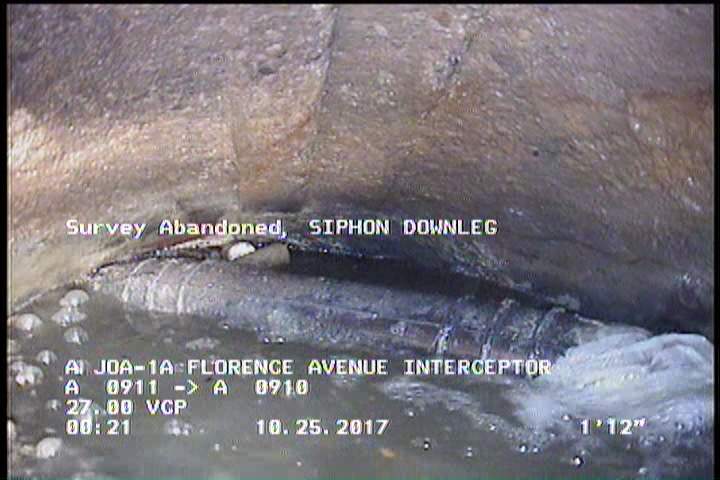

2.1 ft. - Survey Abandoned - SIPHON DOWNLEG
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | MMC | Possible RCP pipe with Exposed Aggregate visible |
| 2 | DAGS | — |
| 0 | AMH | A 0911 |
| 2 | OBZ | UNK |
| 0 | MWL | — |
| 0 | MWM | — |
| 2.1 | MSA | SIPHON DOWNLEG |
| 0 | MGO | — |
Properties (6)
- additional_info
- SC350357
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-25T00:13:52-07:00
- sewer_category
- Siphon
- year_laid
- 31079
