Wastewater/Activity/PacpInspection/1.0Nov 16, 2016, 10:58 AM
H 1298_H 1230 _11162016_025843.mp4
- Date
- 11/16/2016
- W/O
- 602599
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01182
- PipeID
- P17655
- Time
- 2:58 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4015
- Sewer Name
- H JOINT OUTFALL H - UNIT 8K RELIEF
- City
- IRWINDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_602599_TV22082_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- H 1298
- Downstream MH
- H 1230
- Dir. of Survey
- Downstream
- Length Surveyed
- 8.3 ft.
- Total Length
- 8.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (1)

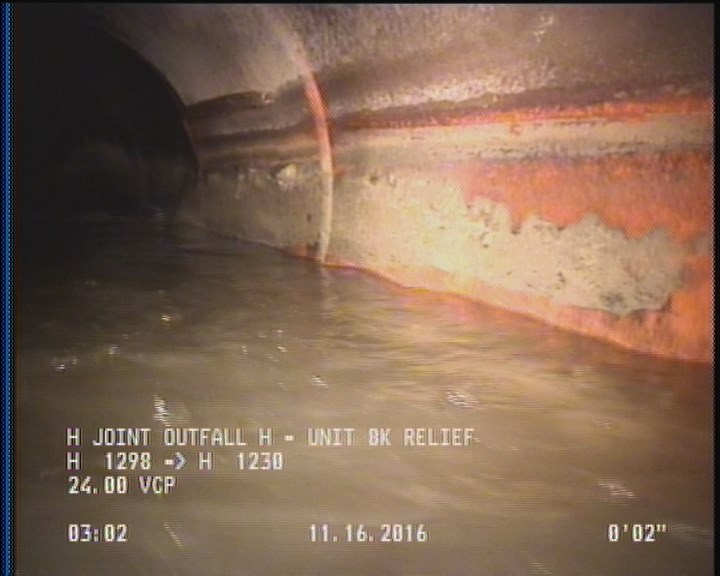

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 8.3 | AMH | H 1230 |
| 2 | DAGS | — |
| 0 | AMH | H 1298 |
| 0 | MWL | — |
| 8.3 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 8.3 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 8.3 | DAGS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC306406
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-16T02:58:24-08:00
- sewer_category
- Gravity
- year_laid
- 33442
