Wastewater/Activity/PacpInspection/1.0Nov 15, 2016, 11:45 AM
H 1196_H 1195 _11152016_034551.mp4
- Date
- 11/15/2016
- W/O
- 602599
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01182
- PipeID
- P17622
- Time
- 3:45 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4012
- Sewer Name
- H JOINT OUTFALL H - UNIT 8K RELIEF
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_602599_TV22082_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- H 1196
- Downstream MH
- H 1195
- Dir. of Survey
- Downstream
- Length Surveyed
- 228.3 ft.
- Total Length
- 228.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412H
- O&M Rating
- 94
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 94
Observation photos (2)

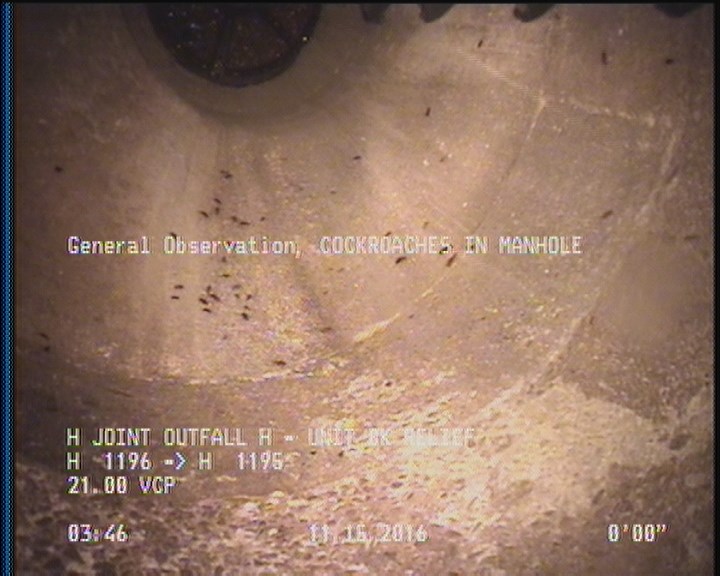

0 ft. - General Observation - COCKROACHES IN MANHOLE

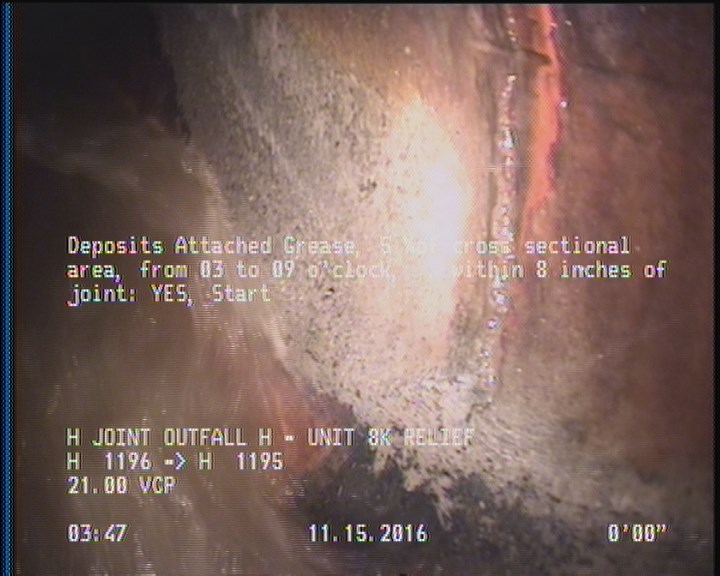

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | H 1196 |
| 0 | MWL | — |
| 228.3 | MGO | ACTIVE CONNECTION AT MH 8 O'CLOCK |
| 228.3 | AMH | H 1195 |
| 225.7 | DAGS | — |
| 197.9 | MWL | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
Properties (6)
- additional_info
- SC306404
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-15T03:45:10-08:00
- sewer_category
- Gravity
- year_laid
- 30658
