Wastewater/Activity/PacpInspection/1.0Nov 10, 2016, 10:25 AM
H 1202_H 1201 _11102016_022501.mp4
- Date
- 11/10/2016
- W/O
- 602599
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01182
- PipeID
- P17628
- Time
- 2:25 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4010
- Sewer Name
- H JOINT OUTFALL H - UNIT 8K RELIEF
- City
- IRWINDALE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_602599_TV22082_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- H 1202
- Downstream MH
- H 1201
- Dir. of Survey
- Downstream
- Length Surveyed
- 531.1 ft.
- Total Length
- 531.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2T00
- O&M Rating
- 210
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 210
Observation photos (2)

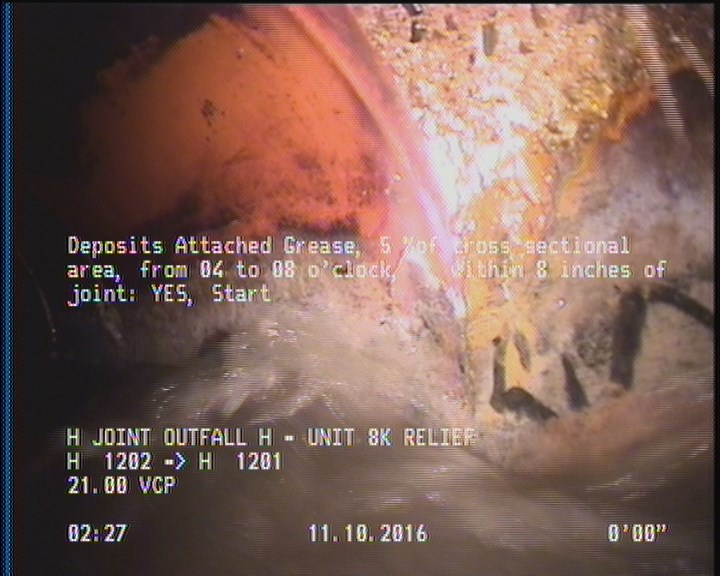

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

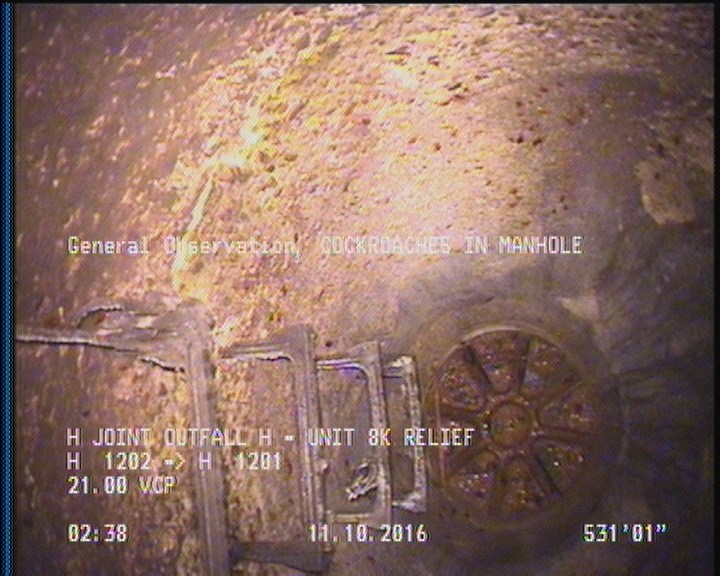

531.1 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 529 | DAGS | — |
| 0 | AMH | H 1202 |
| 531.1 | AMH | H 1201 |
| 2 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 531.1 | MGO | COCKROACHES IN MANHOLE |
Properties (6)
- additional_info
- SC306350
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-10T02:25:06-08:00
- sewer_category
- Gravity
- year_laid
- 30658
