Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 3, 2017, 07:32 AM

  • 0_29 0461 _03102017_010155.mp4

Date
10/03/2017
W/O
663252
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00989
PipeID
P24505
Time
12:32 AM
Certificate
07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4815
Sewer Name
29 LEWIS AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_663252_TV29059_OCT2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0461
Downstream MH
0
Dir. of Survey
Upstream
Length Surveyed
355.6 ft.
Total Length
355.6 ft.
Structural Index
3
Structural Quick
3625
Structural Rating
28
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
30
Pipe schematic from manhole 29 0461 to 0
MH: 29 0461MH: 0upstream0 ft. AMH - Upstream Manhole, Survey Ends - DEAD END NO MH #0.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"2.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"52.6 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"55.1 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4"57.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"104.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"107.2 ft. MGP - General Photograph - POINT REPAIR151.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"154 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4"188.5 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES201.1 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES204.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4"207.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES207.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4"209.5 ft. CM - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES245.2 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES251.8 ft. TFD - Tap Factory Made Defective, at 09 o'clock, -, within 8 inches of joint: YES, 4", 4" - OFFSET GAP254.1 ft. CM - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES254.3 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"259.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES277.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES316.6 ft. CM - Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES331.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES332 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4"334.1 ft. MGP - General Photograph - SPOT REPAIR334.5 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4"345 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES355.6 ft. MWM - Water Mark, 10 %of cross sectional area355.6 ft. AMH - Downstream Manhole, Survey Begins - 29 0461355.6 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (13)

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

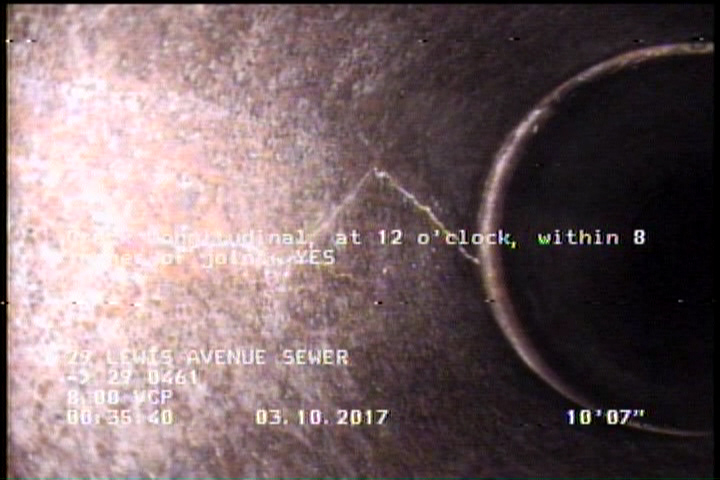

    10.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • General Photograph - SPOT REPAIR

    21.5 ft. - General Photograph - SPOT REPAIR

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

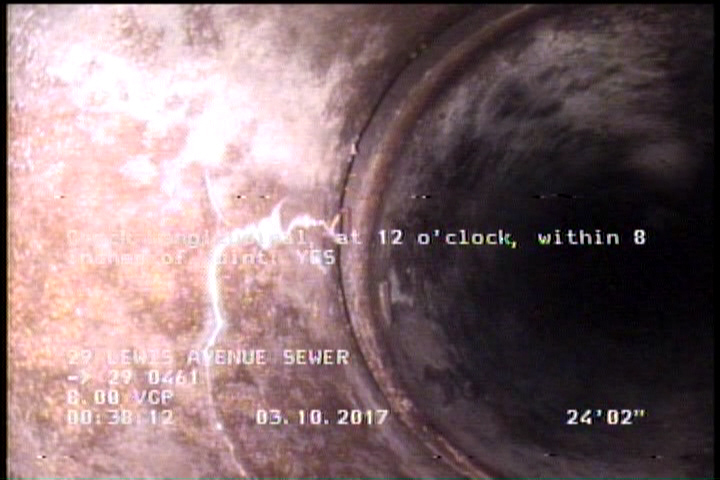

    24.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

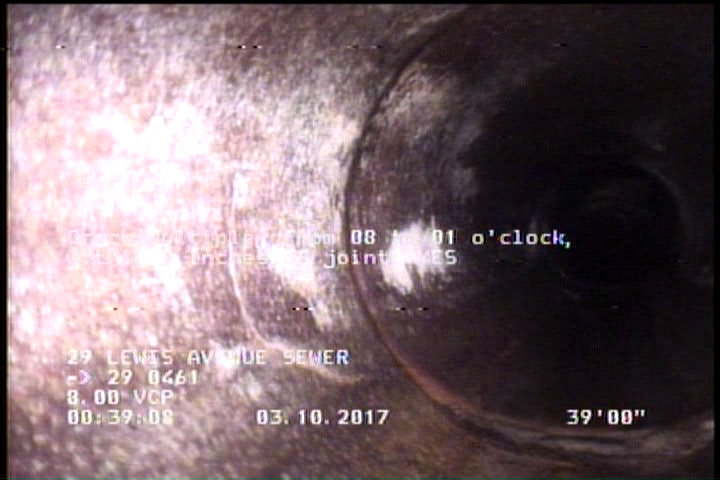

    39 ft. - Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

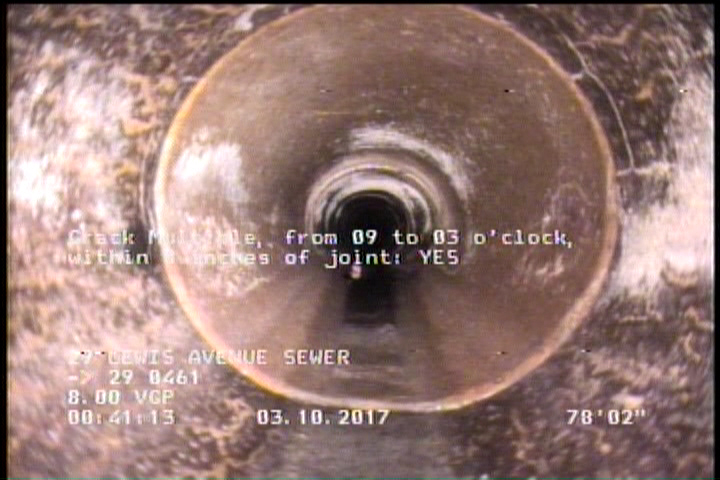

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    78.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

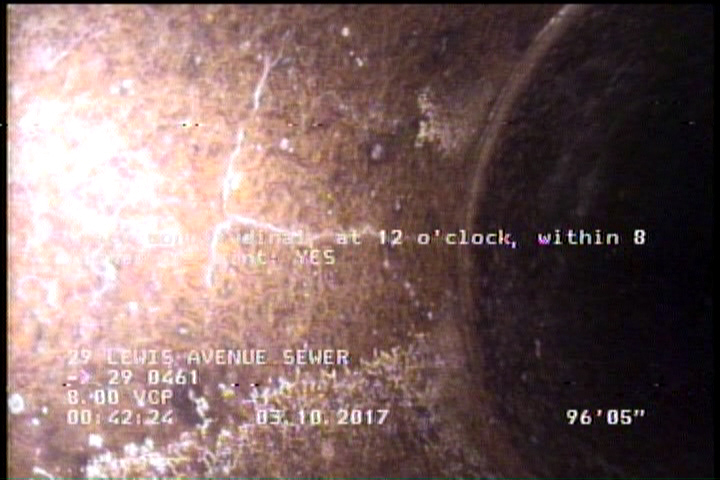

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    96.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

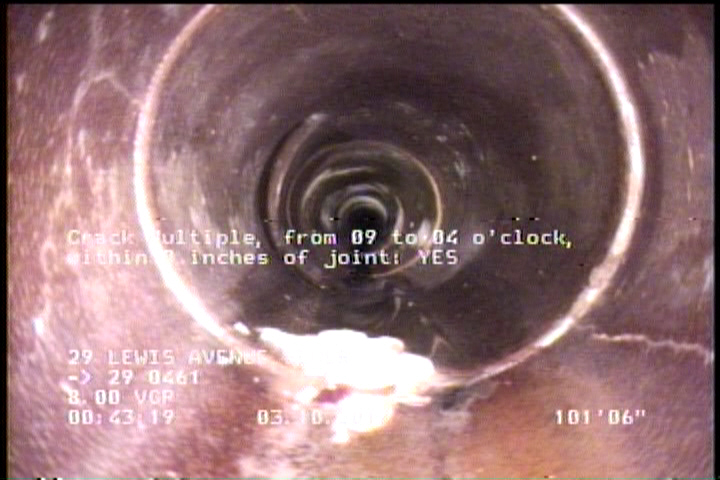

    101.5 ft. - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

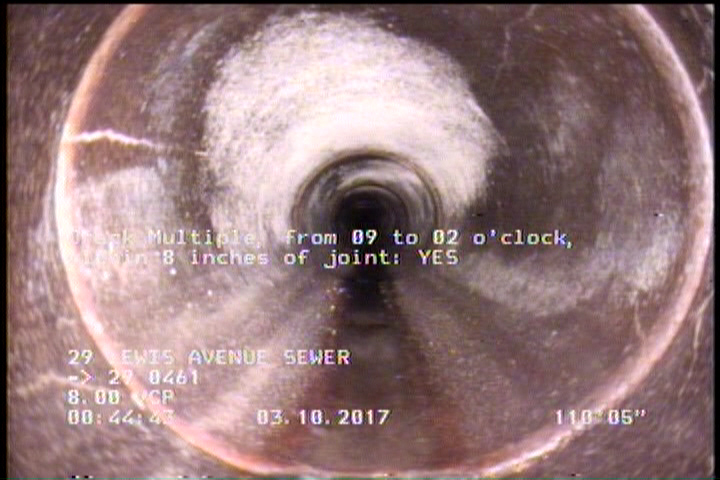

    110.4 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

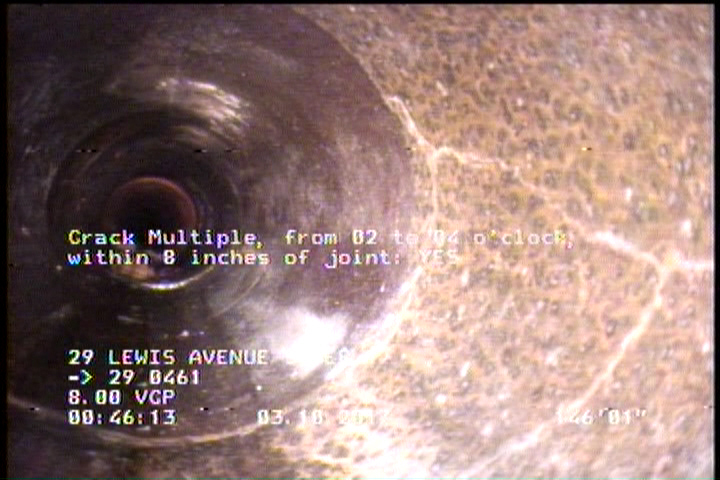

    146.1 ft. - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

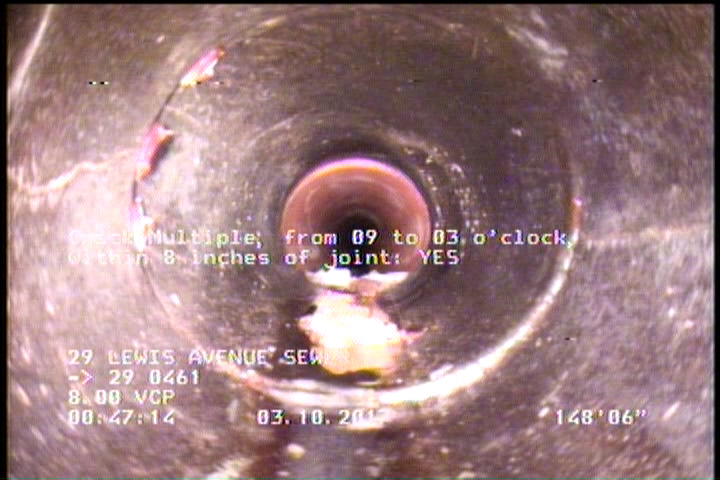

    148.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    154.5 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

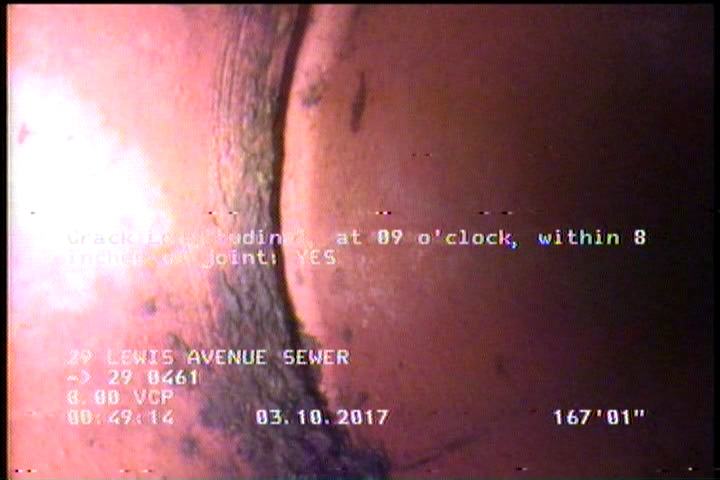

    167.1 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

  • General Photograph - POINT REPAIR

    248.4 ft. - General Photograph - POINT REPAIR

All inspections of P24505Work order 663252

Observations (31)

DistanceCodeObservation
303TFC—
297.8TF—
251.1TFC—
24.1CL—
146.1CM—
10.6CL—
101.5CM—
167.1CL—
96.4CL—
300.5TF—
103.8TFDOFFSET GAP
78.2CM—
151TF—
21.1TF—
248.4MGPPOINT REPAIR
148.4TF—
353.1TFC—
110.4CM—
39CM—
0MWM—
0AMH29 0461
0MWL—
101.3TFC—
204.2TFC—
148.5CM—
21.5MGPSPOT REPAIR
201.6TF—
23.6TF—
154.5CL—
355.5TFC—
355.6AMHDEAD END NO MH #

Properties (5)

additional_info
SC353064
custom_field_two
3
customer
LACSD
datetime
2017-10-03T00:32:54-07:00
sewer_category
Gravity
