Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 3, 2017, 06:51 AM

  • 29 0432_29 0418 _03102017_002133.mp4

Date
10/02/2017
W/O
663252
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00989
PipeID
P24469
Time
11:51 PM
Certificate
07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4815
Sewer Name
29 LEWIS AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_663252_TV29059_OCT2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0432
Downstream MH
29 0418
Dir. of Survey
Downstream
Length Surveyed
224.8 ft.
Total Length
224.8 ft.
Structural Index
3
Structural Quick
493B
Structural Rating
90
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
90
Pipe schematic from manhole 29 0432 to 29 0418
MH: 29 0432MH: 29 0418downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 04320 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK, ACTIVE5.3 ft. CM - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES7.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES20.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4"26.4 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES32.8 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES42.3 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES50.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES57 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES69.3 ft. CM - Crack Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES81.6 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES91.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES100.2 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES112.9 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES115.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES125.6 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES128.7 ft. FM - Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES134.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES137.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES156.1 ft. FM - Fracture Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES162 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES168.5 ft. FM - Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES186.3 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES191.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4"193.1 ft. CM - Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES195.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES205.8 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES208.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES214.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES217.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES220.4 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES224.4 ft. MGP - General Photograph - PATCH224.8 ft. AMH - Downstream Manhole, Survey Ends - 29 0418

Observation photos (29)

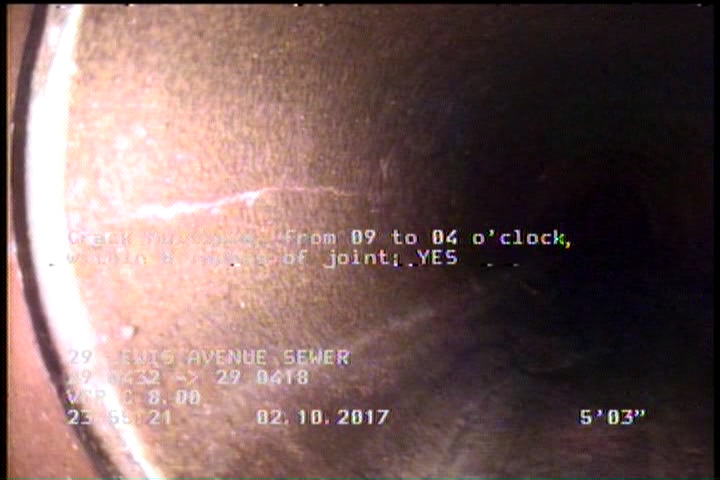

  • Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

    5.3 ft. - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    7.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    26.4 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES

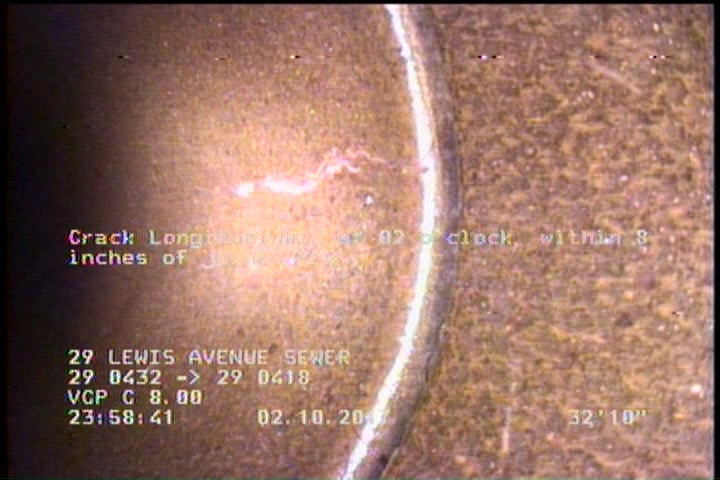

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    32.8 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    42.3 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

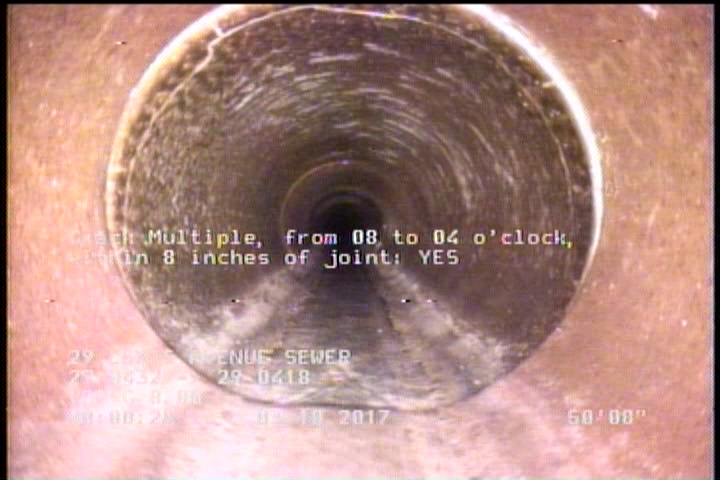

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    50.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    57 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

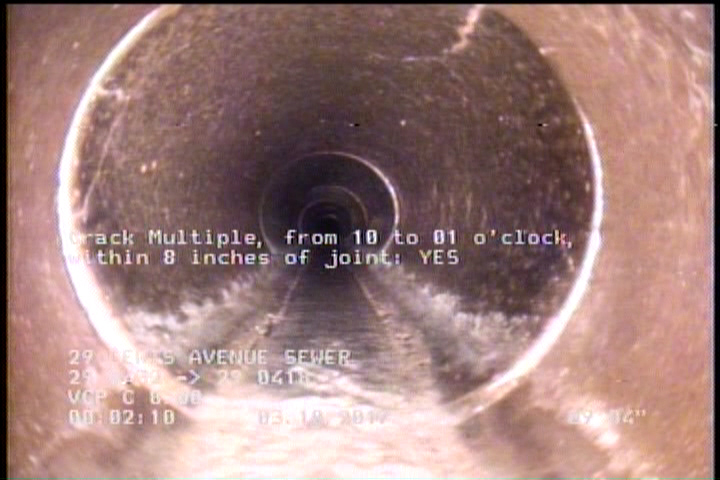

  • Crack Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES

    69.3 ft. - Crack Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    81.6 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

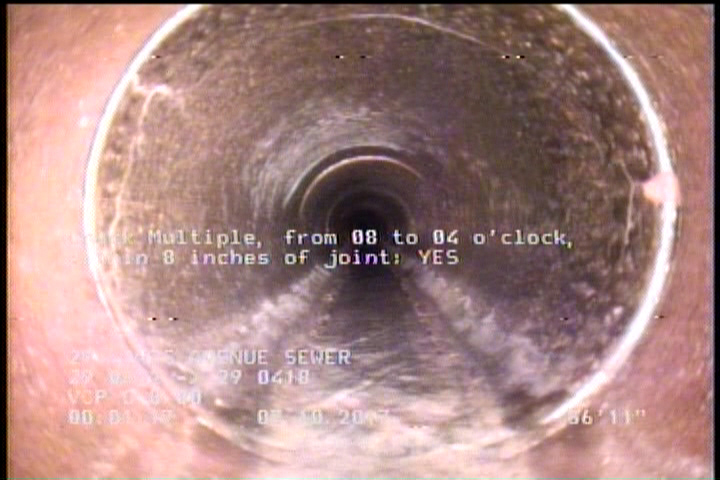

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    91.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    100.2 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    112.9 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

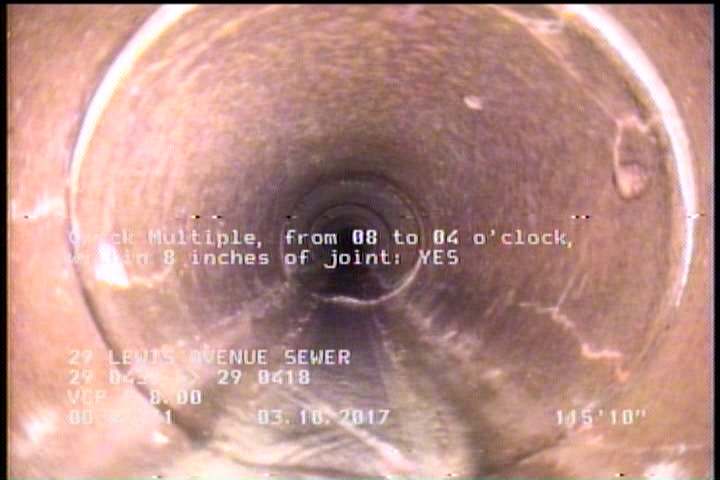

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    115.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

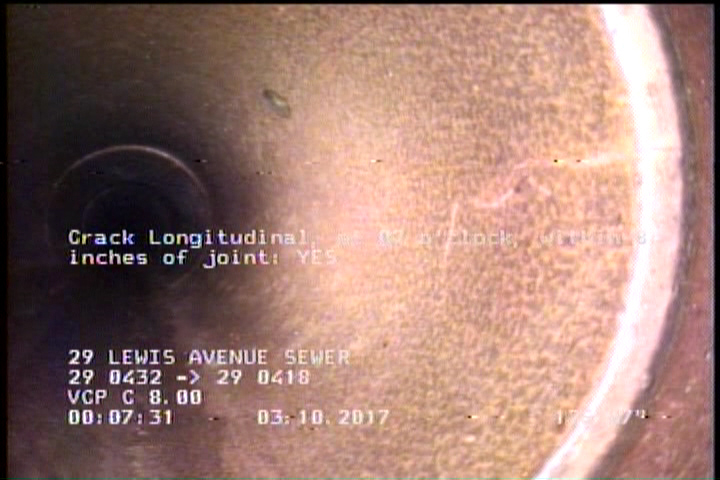

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    125.6 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

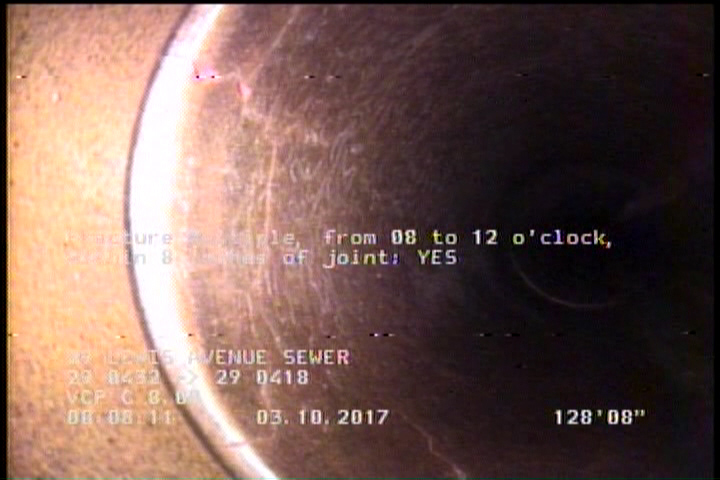

  • Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

    128.7 ft. - Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

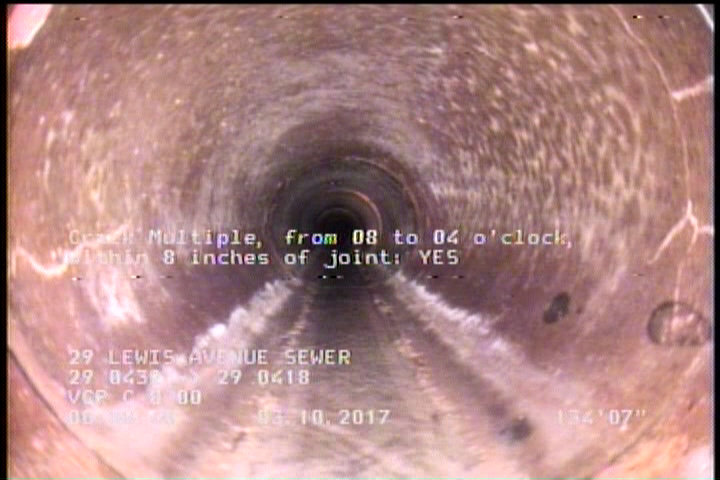

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    134.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

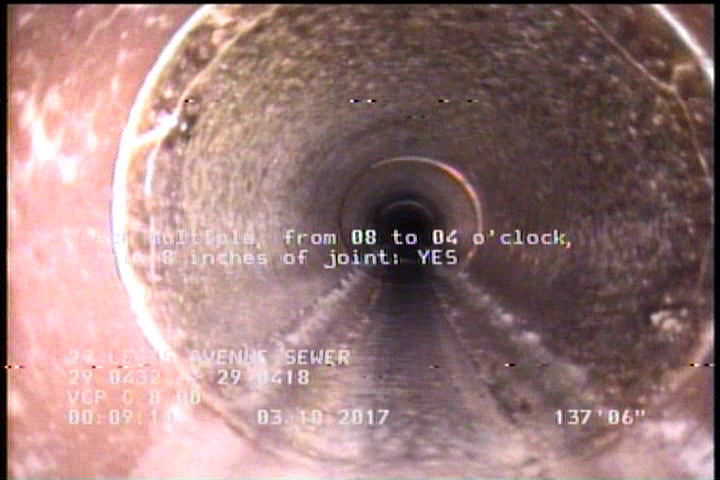

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    137.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

    156.1 ft. - Fracture Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

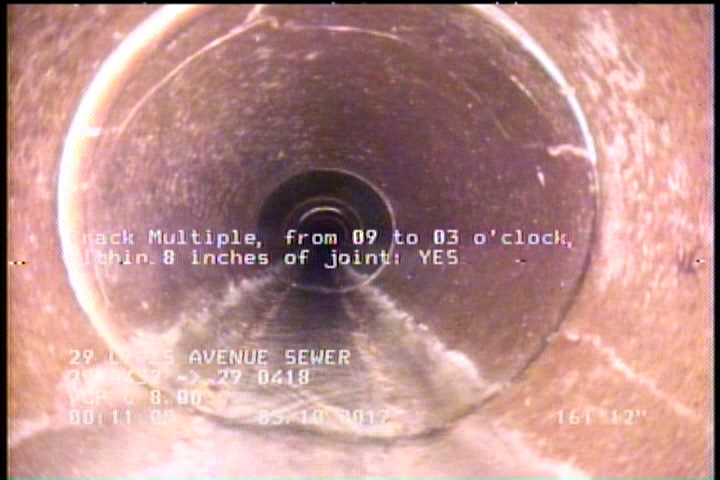

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    162 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

    168.5 ft. - Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

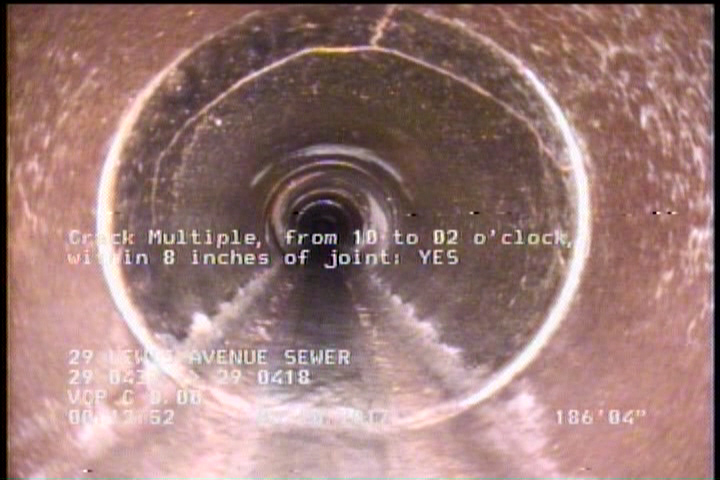

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    186.3 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

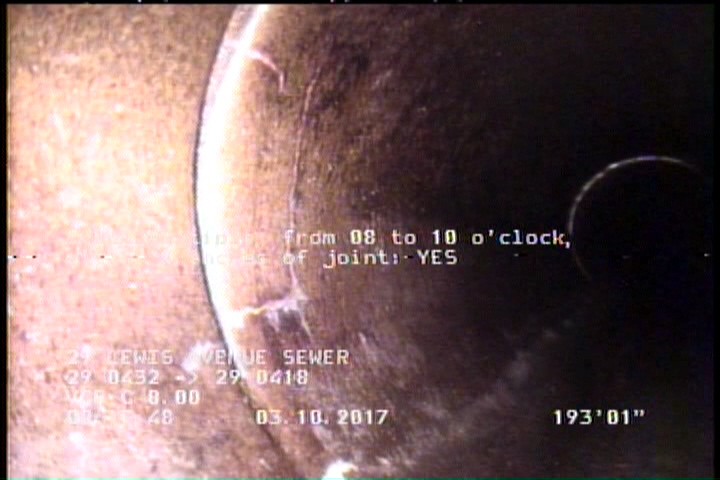

  • Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

    193.1 ft. - Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    195.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

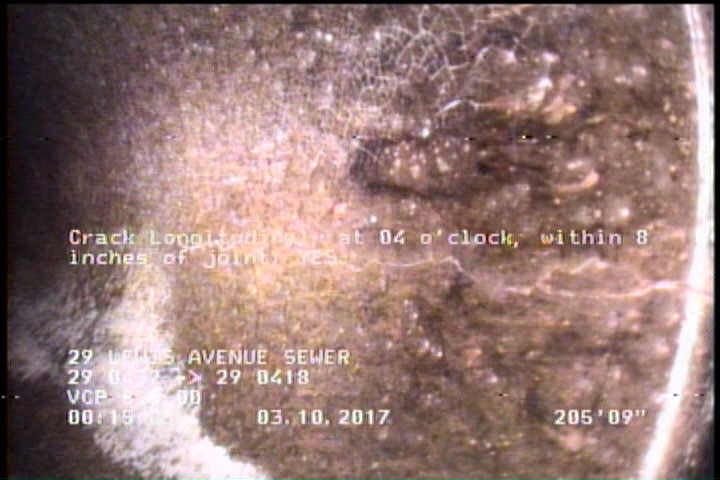

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    205.8 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

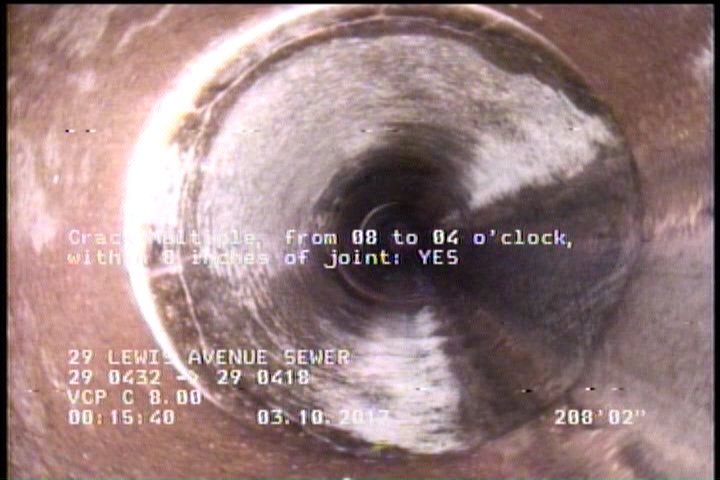

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    208.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

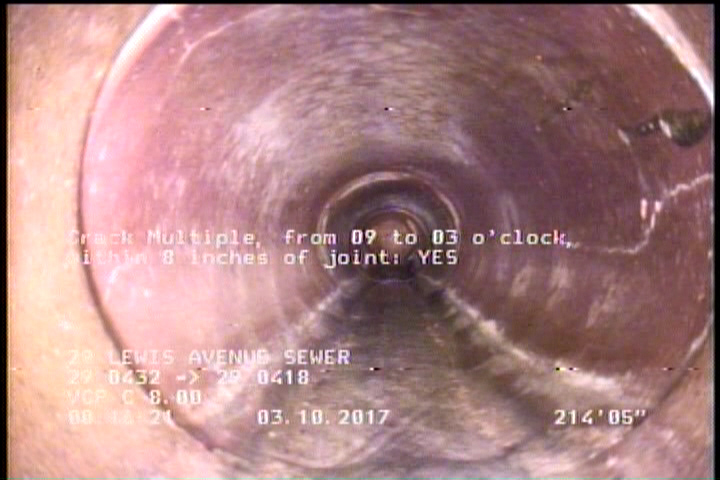

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    214.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

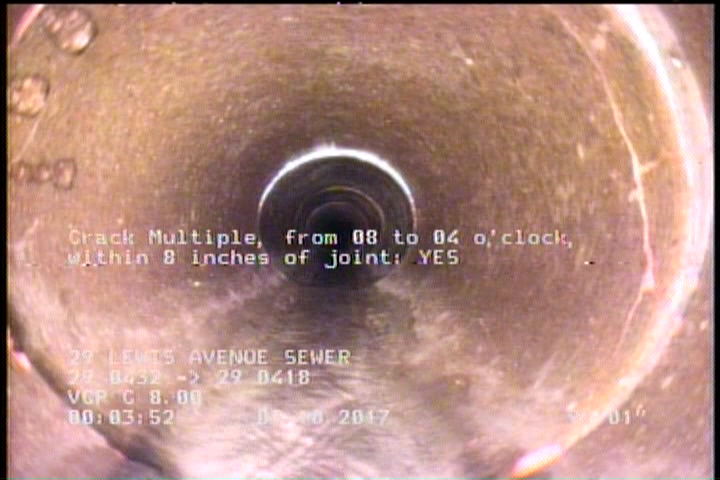

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    217.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    220.4 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • General Photograph - PATCH

    224.4 ft. - General Photograph - PATCH

All inspections of P24469Work order 663252

Observations (36)

DistanceCodeObservation
26.4FL—
205.8CL—
0MWM—
134.5CM—
57CM—
112.9FM—
0MWL—
224.4MGPPATCH
32.8CL—
0AMH29 0432
156.1FM—
50.7CM—
7.9FM—
115.8CM—
220.4FM—
162CM—
125.6CL—
168.5FM—
195.9FL—
5.3CM—
193.1CM—
91.1CM—
20.9TF—
214.4CM—
69.3CM—
100.2FM—
186.3CM—
224.8AMH29 0418
137.5CM—
42.3FM—
81.6FM—
191.5TF—
217.4CM—
0MGOCONNECTION AT MH 9 OCLOCK, ACTIVE
208.2CM—
128.7FM—

Properties (5)

additional_info
SC353064
custom_field_two
2
customer
LACSD
datetime
2017-10-02T23:51:42-07:00
sewer_category
Gravity
