Wastewater/Activity/PacpInspection/1.0Oct 20, 2017, 08:26 AM
16 0310_16 0309 _20102017_012649.mp4
- Date
- 10/20/2017
- W/O
- 663187
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00665
- PipeID
- P13361
- Time
- 1:26 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5033
- Sewer Name
- 16 SAN MARINO OUTFALL TRUNK
- City
- SAN MARINO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_663187_TV16060_OCT2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 20 in.
- Width
- 20 in.
- Upstream MH
- 16 0310
- Downstream MH
- 16 0309
- Dir. of Survey
- Downstream
- Length Surveyed
- 85.3 ft.
- Total Length
- 85.3 ft.
- Structural Index
- 3
- Structural Quick
- 413B
- Structural Rating
- 46
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 46
Observation photos (3)

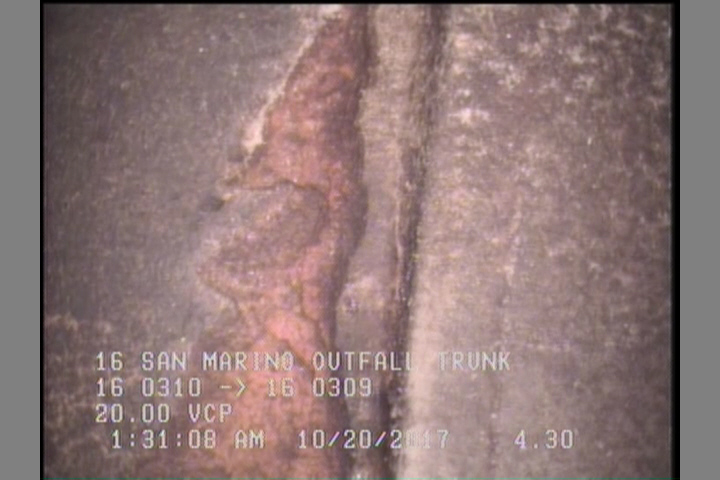

4.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

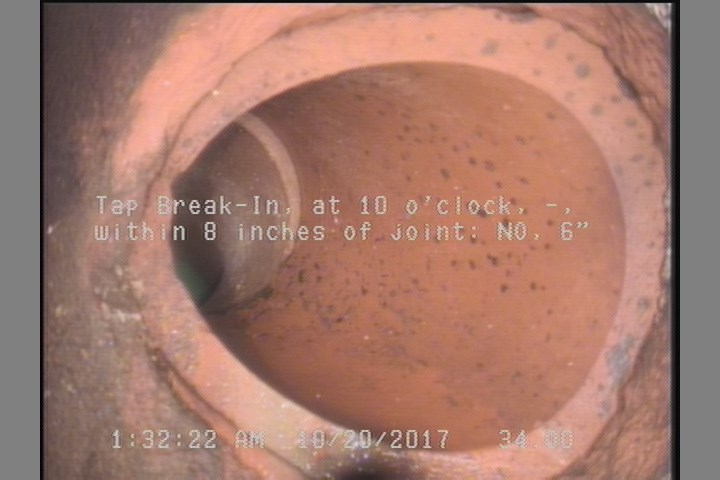

34 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

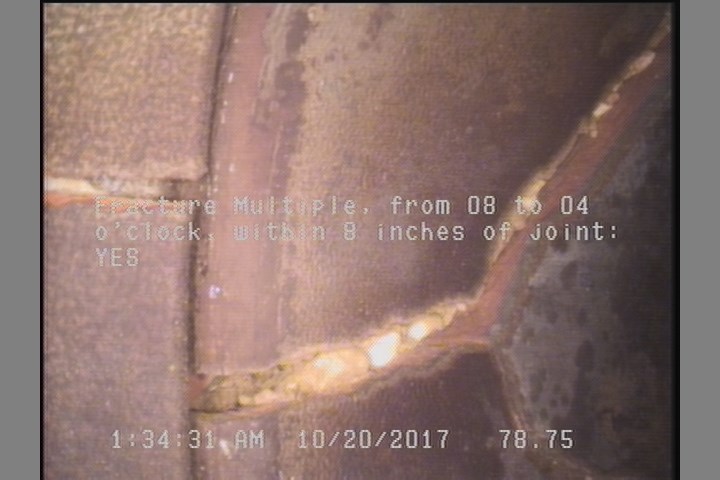

78.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 16 0310 |
| 78.8 | FM | — |
| 85.3 | AMH | 16 0309 |
| 34 | TFC | — |
| 0 | MWL | — |
| 76.3 | CM | — |
| 0 | MWM | — |
| 34 | TB | — |
| 4.3 | CM | — |
Properties (5)
- additional_info
- SC346196
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-20T01:26:10-07:00
- sewer_category
- Gravity
