Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 20, 2017, 08:46 AM

  • 16 0317_16 0316 _20102017_014651.mp4

Date
10/20/2017
W/O
663187
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00665
PipeID
P13368
Time
1:46 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5033
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
21
Purpose
Routine Assessment
Project
WO_663187_TV16060_OCT2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
16 0317
Downstream MH
16 0316
Dir. of Survey
Downstream
Length Surveyed
361.6 ft.
Total Length
361.7 ft.
Structural Index
3
Structural Quick
413M
Structural Rating
213
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
218
Pipe schematic from manhole 16 0317 to 16 0316
MH: 16 0317MH: 16 0316downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 03170 ft. MWM - Water Mark, 20 %of cross sectional area3.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO6.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"11 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"12.4 ft. CS - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES13.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"20.2 ft. FS - Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES22.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start32.6 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES57.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"60 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"77.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"132.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"140.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"187.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"247.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"269.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"270.5 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"361 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish361 ft. FM - Fracture Multiple, from 10 to 05 o'clock, within 8 inches of joint: YES361.7 ft. AOC - Drop Connection, Survey Ends - 16 0316

Observation photos (4)

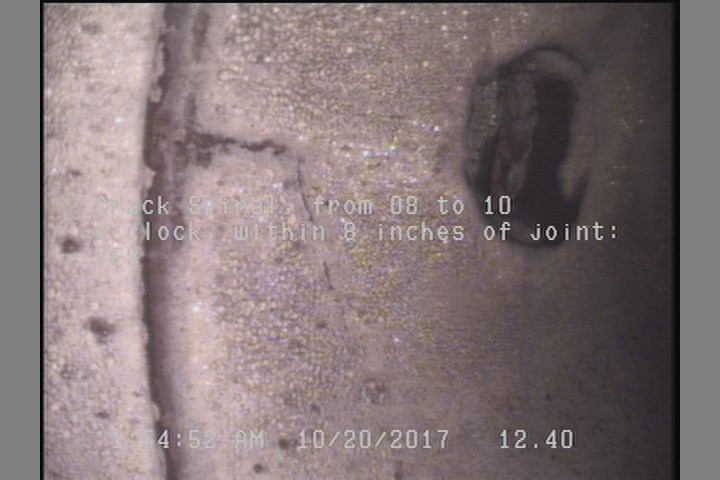

  • Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES

    12.4 ft. - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES

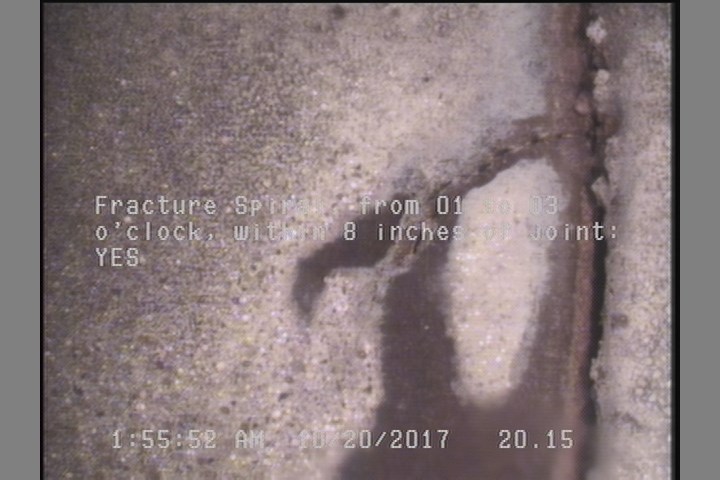

  • Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES

    20.2 ft. - Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES

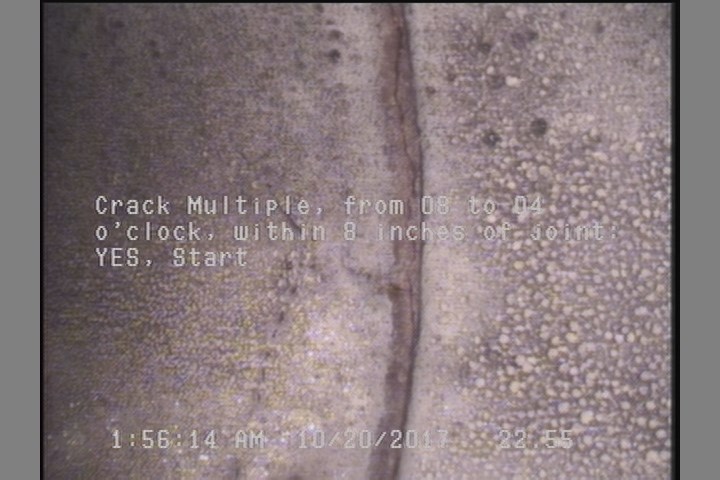

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    22.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

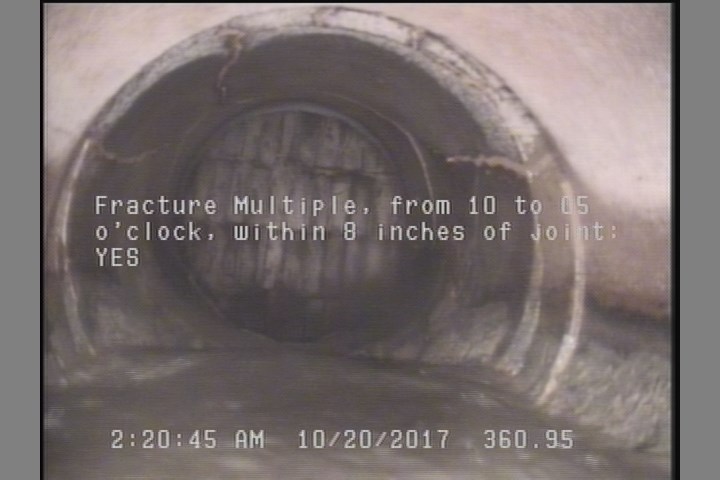

  • Fracture Multiple, from 10 to 05 o'clock, within 8 inches of joint: YES

    361 ft. - Fracture Multiple, from 10 to 05 o'clock, within 8 inches of joint: YES

All inspections of P13368Work order 663187

Observations (23)

DistanceCodeObservation
12.4CS—
140.2TF—
3.6DSZ—
270.5TB—
361CM—
60TF—
13.9TFC—
0MWL—
6.9TF—
11TFC—
361.7AOC16 0316
77.5TF—
20.2FS—
247.8TF—
22.6CM—
269.5TFC—
187.5TFC—
361FM—
32.6DSZ—
132.2TF—
0AMH16 0317
57.7TF—
0MWM—

Properties (5)

additional_info
SC346196
custom_field_two
3
customer
LACSD
datetime
2017-10-20T01:46:42-07:00
sewer_category
Gravity
