Wastewater/Activity/PacpInspection/1.0Oct 6, 2017, 10:11 AM
16 0340_16 0339 _06102017_031237.mp4
- Date
- 10/06/2017
- W/O
- 663187
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00665
- PipeID
- P13391
- Time
- 3:11 AM
- Certificate
- U-715-070007770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4996
- Sewer Name
- 16 SAN MARINO OUTFALL TRUNK
- City
- SAN MARINO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_663187_TV16060_OCT2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 16 0340
- Downstream MH
- 16 0339
- Dir. of Survey
- Downstream
- Length Surveyed
- 300.2 ft.
- Total Length
- 300.2 ft.
- Structural Index
- 4
- Structural Quick
- 4231
- Structural Rating
- 11
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)

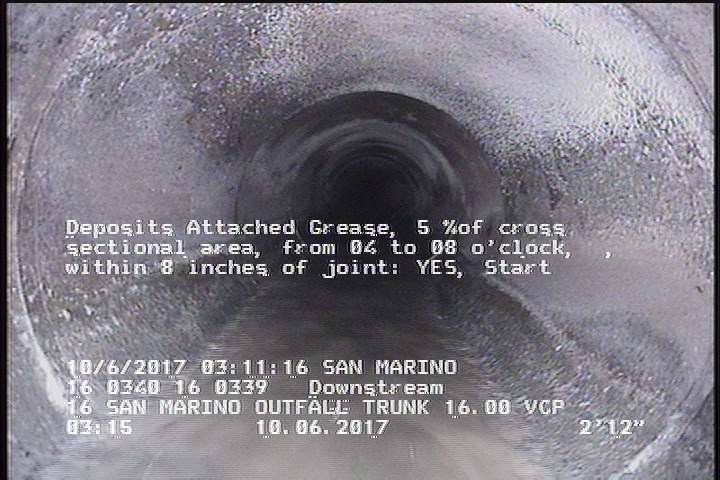

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

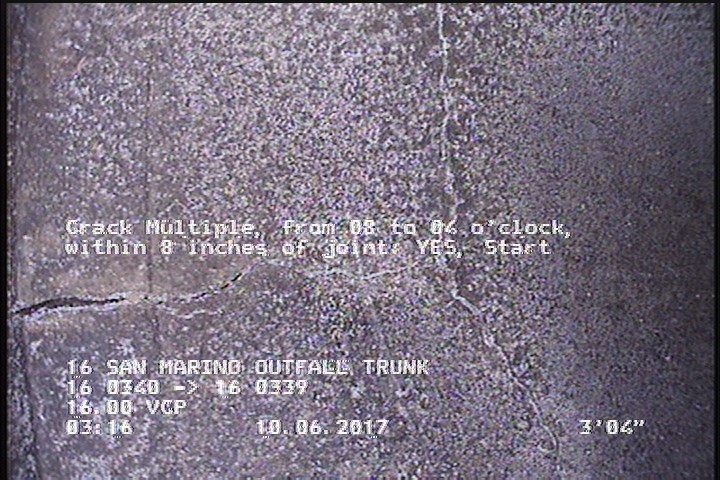

3.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

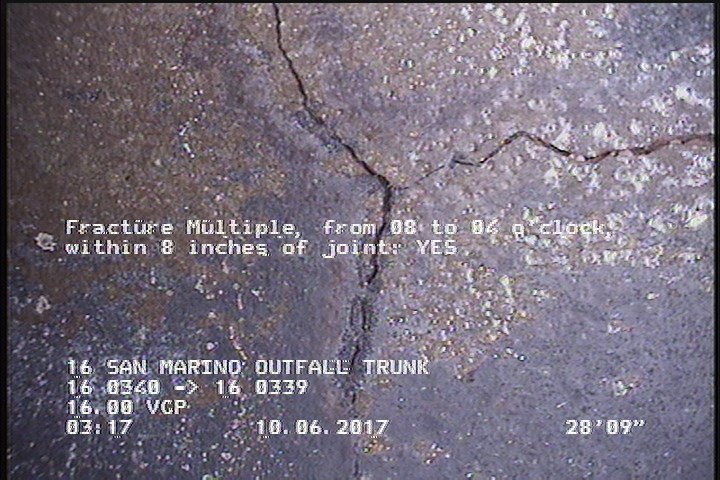

28.7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

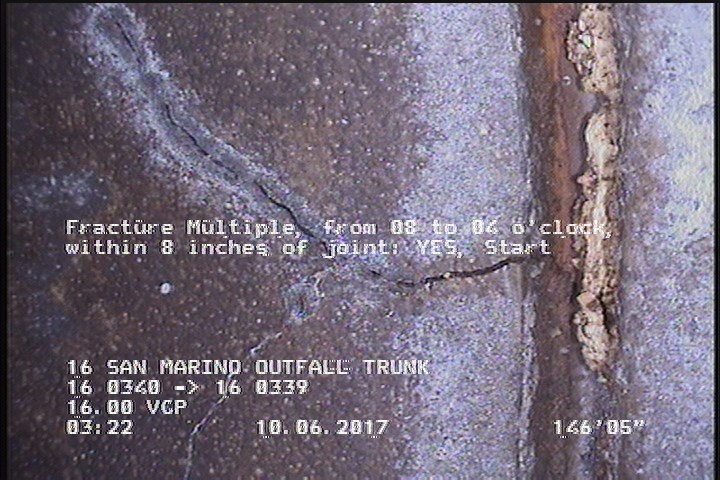

146.3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 104 | TF | — |
| 146.3 | FM | — |
| 28.7 | FM | — |
| 146.3 | CM | — |
| 3.3 | CM | — |
| 300.2 | AMH | 16 0339 |
| 242.9 | TFC | — |
| 3 | DAGS | — |
| 173.4 | TFC | — |
| 0 | AMH | 16 0340 |
| 0 | MWM | — |
| 0 | MWL | — |
| 297.6 | DAGS | — |
| 297.6 | FM | — |
| 32.8 | TFC | — |
Properties (5)
- additional_info
- SC345988
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-06T03:11:16-07:00
- sewer_category
- Gravity
