Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 2, 2016, 11:45 AM

  • 18 0658_18 0657 _12022016_040038.mp4

Date
12/02/2016
W/O
602450
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00696
PipeID
P14507
Time
3:45 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3895
Sewer Name
18 PHOEBE AVENUE TRUNK
City
LA MIRADA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
36
Purpose
Routine Assessment
Project
WO_602450_TV18081_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
18 0657
Downstream MH
18 0658
Dir. of Survey
Upstream
Length Surveyed
297.5 ft.
Total Length
297.6 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
2
O&M Quick
2K00
O&M Rating
116
Overall Index
2
Overall Quick
—
Overall Rating
124
Pipe schematic from manhole 18 0657 to 18 0658
MH: 18 0657MH: 18 0658upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 06584.3 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish8.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"13.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"104.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"109.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"134.2 ft. MGO - General Observation - END LINER134.3 ft. LFW - Lining Failure Wrinkled, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish144.2 ft. LFW - Lining Failure Wrinkled, from 09 to 03 o'clock, within 8 inches of joint: YES, Start158.8 ft. MGO - General Observation - STARTLINER205.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"211 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES211 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"295.5 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start297.6 ft. MWM - Water Mark, 20 %of cross sectional area297.6 ft. AMH - Downstream Manhole, Survey Begins - 18 0657297.6 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (3)

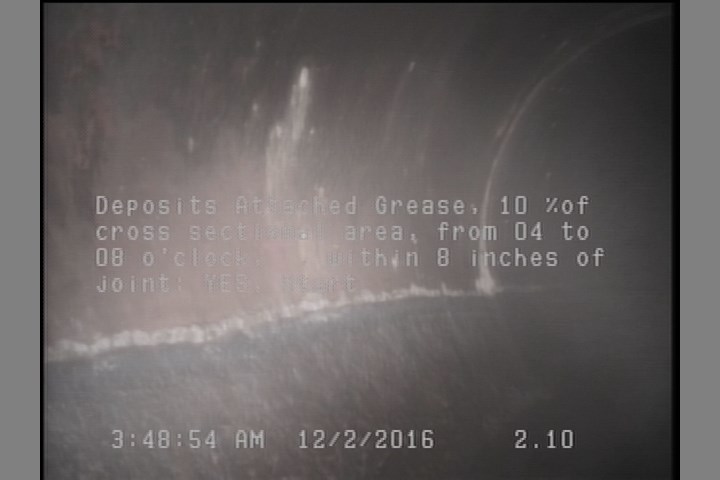

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

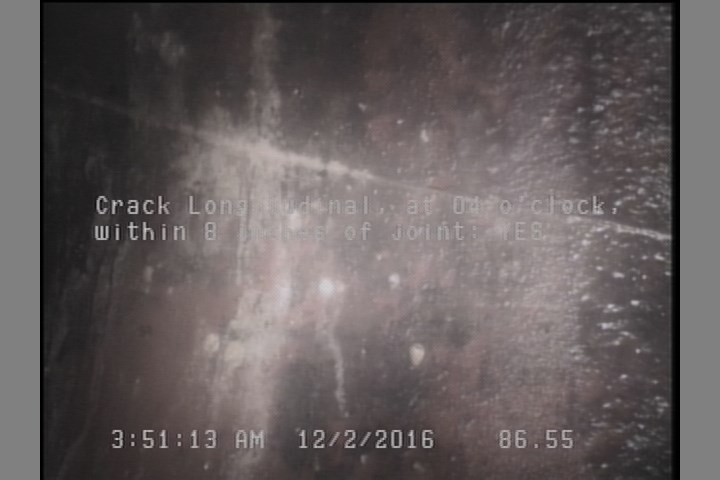

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    86.6 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

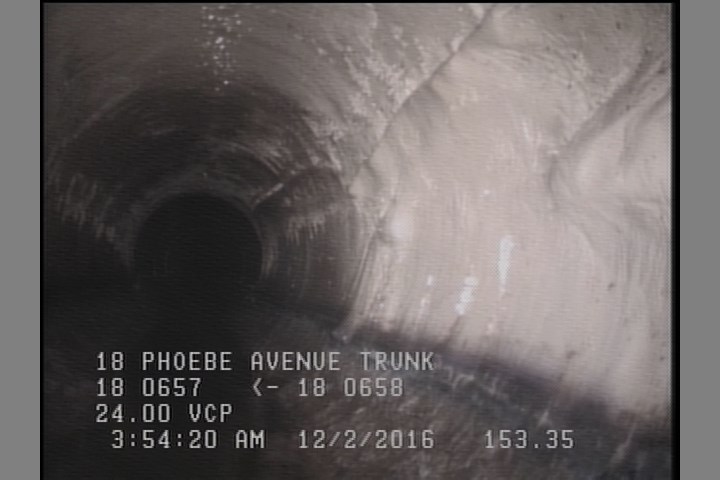

  • Lining Failure Wrinkled, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    153.4 ft. - Lining Failure Wrinkled, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P14507Work order 602450

Observations (17)

DistanceCodeObservation
91.7TFC—
2.1DAGS—
293.3DAGS—
86.6CL—
163.4MGOEND LINER
289.5TFA—
86.6TFC—
0MWM—
138.8MGOSTARTLINER
188.2TFA—
153.4LFW—
0AMH18 0657
0MWL—
297.6AMH18 0658
284.5TFC—
163.3LFW—
193.4TFC—

Properties (5)

additional_info
SC305229
custom_field_two
3
customer
LACSD
datetime
2016-12-02T03:45:34-08:00
sewer_category
Gravity
