Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 2, 2016, 09:54 AM

  • 18 0665_18 0664 _12022016_021532.mp4

Date
12/02/2016
W/O
602450
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00696
PipeID
P14514
Time
1:54 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3895
Sewer Name
18 PHOEBE AVENUE TRUNK
City
LA MIRADA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
36
Purpose
Routine Assessment
Project
WO_602450_TV18081_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
18 0665
Downstream MH
18 0664
Dir. of Survey
Downstream
Length Surveyed
229.7 ft.
Total Length
229.7 ft.
Structural Index
2
Structural Quick
2311
Structural Rating
7
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 18 0665 to 18 0664
MH: 18 0665MH: 18 0664downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 18 06650 ft. MWM - Water Mark, 20 %of cross sectional area2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - MAGNESIUM H.O. START4.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES83.1 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES130.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"134.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"154.4 ft. CC - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES169.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES215.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"220.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"227 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH227 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish229.7 ft. AMH - Downstream Manhole, Survey Ends - 18 0664

Observation photos (5)

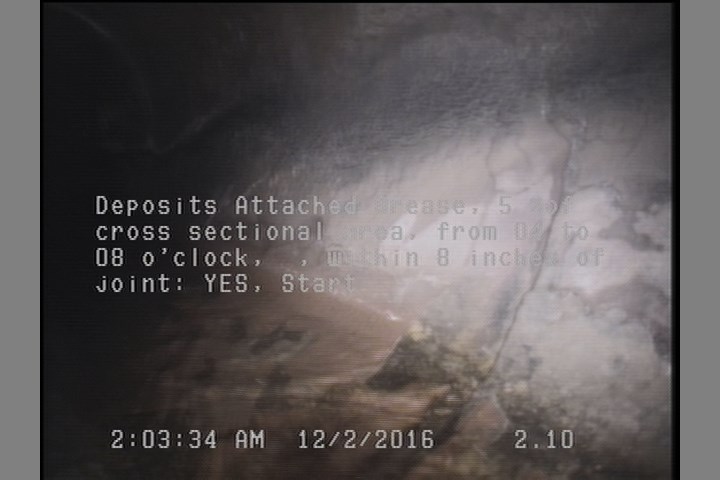

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

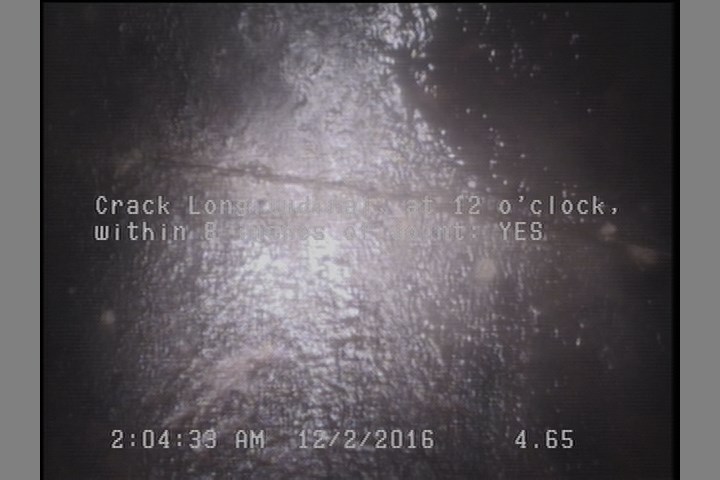

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    4.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

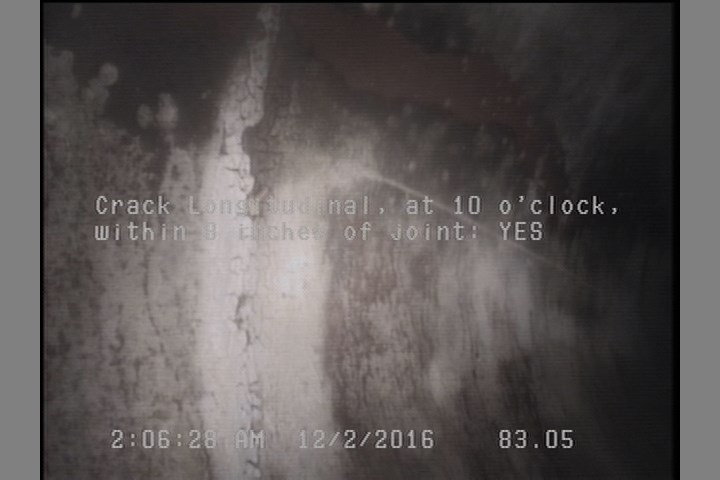

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    83.1 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

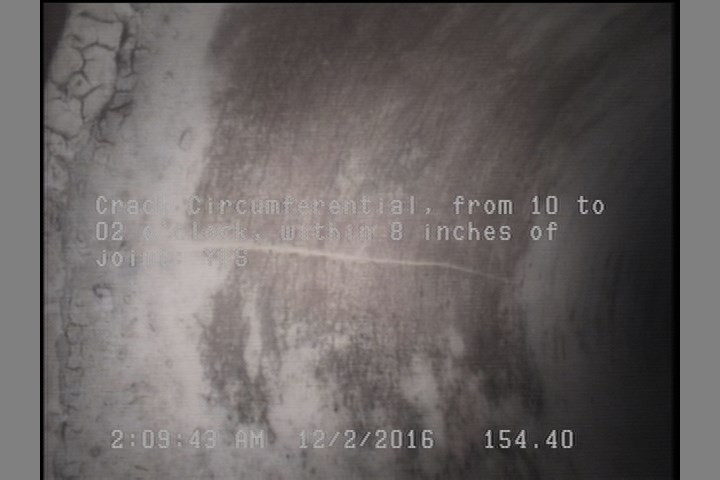

  • Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES

    154.4 ft. - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    169.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P14514Work order 602450

Observations (17)

DistanceCodeObservation
169.5CL—
2.1DAGS—
130.1TFC—
229.7AMH18 0664
134.7TFA—
2.1MGOMAGNESIUM H.O. START
227MGOMAGNEZIUM H.O. FINISH
227DAGS—
0MWL—
0MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
0AMH18 0665
215.4TFC—
220.7TFC—
154.4CC—
0MWM—
83.1CL—
4.7CL—

Properties (5)

additional_info
SC305229
custom_field_two
3
customer
LACSD
datetime
2016-12-02T01:54:03-08:00
sewer_category
Gravity
