Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 2, 2016, 07:52 AM

  • 18 0670_18 0669 _12022016_002203.mp4

Date
12/01/2016
W/O
602450
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00696
PipeID
P14519
Time
11:52 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3895
Sewer Name
18 PHOEBE AVENUE TRUNK
City
LA MIRADA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
36
Purpose
Routine Assessment
Project
WO_602450_TV18081_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
18 0670
Downstream MH
18 0669
Dir. of Survey
Downstream
Length Surveyed
339 ft.
Total Length
339 ft.
Structural Index
3
Structural Quick
4138
Structural Rating
30
O&M Index
2
O&M Quick
2L00
O&M Rating
134
Overall Index
2
Overall Quick
—
Overall Rating
164
Pipe schematic from manhole 18 0670 to 18 0669
MH: 18 0670MH: 18 0669downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - STEAMY PIPE0 ft. AMH - Upstream Manhole, Survey Begins - 18 06702.1 ft. MGO - General Observation - MAGNESIUM H.O. START2.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start115.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"121.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"218.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"223.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"245.2 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start250.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start250.8 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish290.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish303.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES314.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"320 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"337.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish337.7 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH339 ft. AMH - Downstream Manhole, Survey Ends - 18 0069

Observation photos (4)

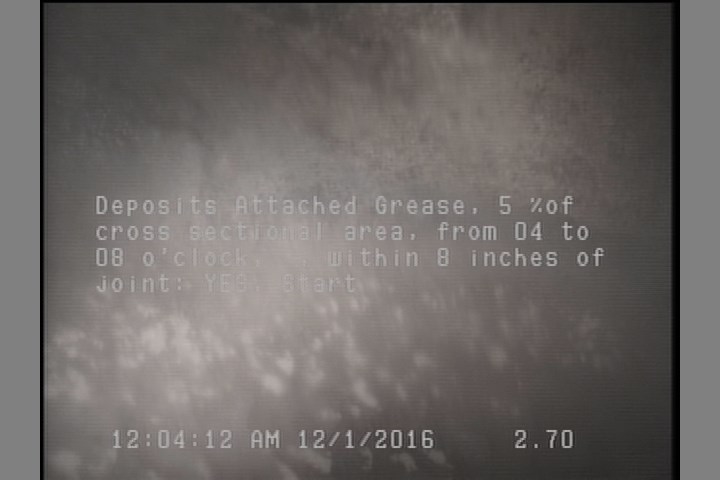

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

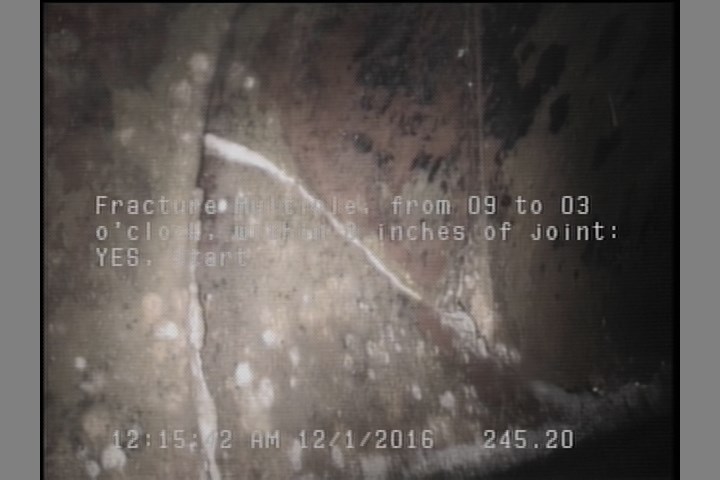

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    245.2 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

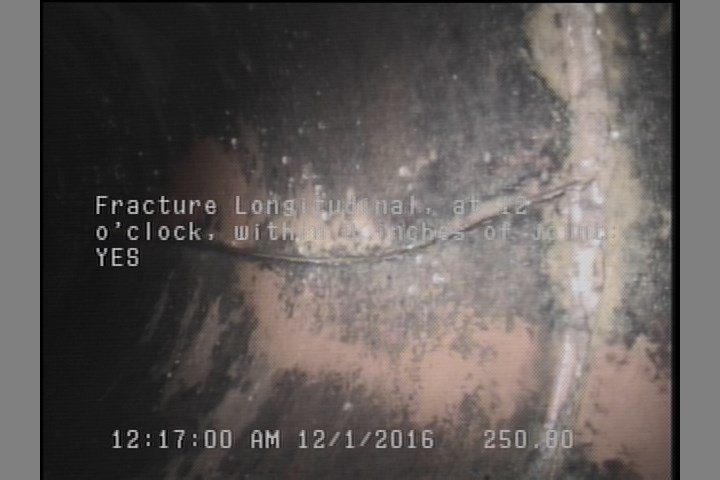

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    250.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

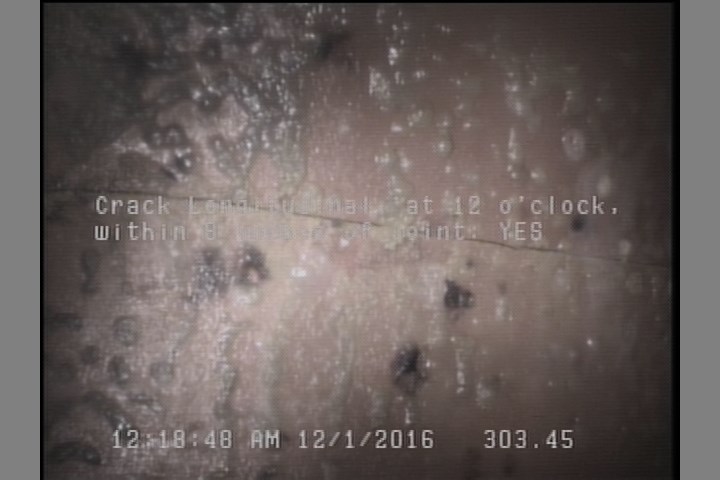

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    303.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P14519Work order 602450

Observations (21)

DistanceCodeObservation
245.2FM—
337.7DAGS—
0MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
303.4CL—
2.1MGOMAGNESIUM H.O. START
223.2TFA—
339AMH18 0069
0MWL—
0MWM—
337.7MGOMAGNEZIUM H.O. FINISH
0MGOSTEAMY PIPE
218.9TFC—
2.7DAGS—
0AMH18 0670
250.8FL—
250.8FM—
121.5TFA—
314.7TFC—
320TFA—
115.9TFC—
290.9FL—

Properties (5)

additional_info
SC305229
custom_field_two
2
customer
LACSD
datetime
2016-12-01T23:52:58-08:00
sewer_category
Gravity
