Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 10, 2017, 09:54 AM

  • 29 0092_29 0079 _10102017_031259.mp4

Date
10/10/2017
W/O
663281
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00273
PipeID
P23873
Time
2:54 AM
Certificate
07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4822
Sewer Name
29 33RD STREET SEWER
City
SIGNAL HILL
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_663281_TV29103_OCT2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
29 0079
Downstream MH
29 0092
Dir. of Survey
Upstream
Length Surveyed
250.1 ft.
Total Length
250.1 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 29 0079 to 29 0092
MH: 29 0079MH: 29 0092upstream0 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 29 009213.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"27.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"57.2 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"68.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"98.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"100.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"154 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"174.4 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"177.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"182 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start192.1 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"227 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES250.1 ft. MWL - Water Level, 10 %of cross sectional area250.1 ft. MWM - Water Mark, 20 %of cross sectional area250.1 ft. AMH - Downstream Manhole, Survey Begins - 29 0079

Observation photos (2)

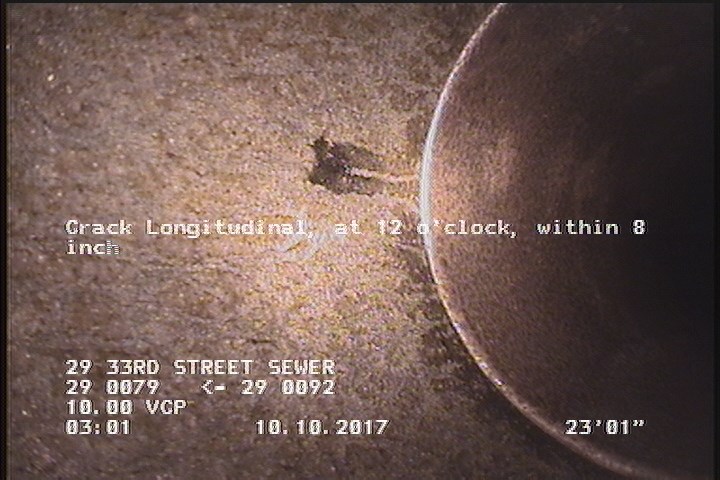

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    23.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

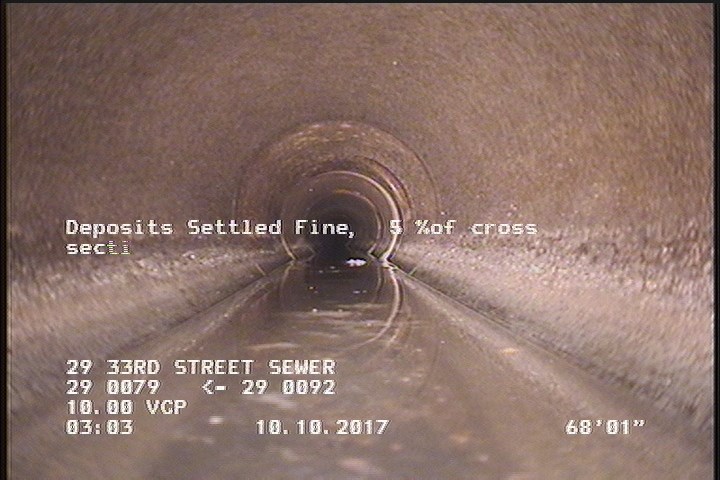

  • Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start

    68.1 ft. - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start

All inspections of P23873Work order 663281

Observations (17)

DistanceCodeObservation
237TF—
23.1CL—
222.3TF—
0MWL—
250.1DSF—
149.3TF—
0MWM—
0AMH29 0079
68.1DSF—
181.6TF—
250.1AMH29 0092
192.9TFC—
75.7TB—
58TF—
72.5TFC—
151.8TF—
96.1TF—

Properties (5)

additional_info
SC353073
custom_field_two
4
customer
LACSD
datetime
2017-10-10T02:54:42-07:00
sewer_category
Gravity
